Specifications
Brand Name :
Huihao
Place of Origin :
China
MOQ :
10000 pcs
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
500000 pcs per 15 days
Delivery Time :
12 days after the payment
Packaging Details :
Poly bag +Carton +Pallet
Name :
Lacing anchors
Material :
SS 304 or SS 316 or Galvanized steel
Pin diameter :
14Ga ,12Ga ,3.0mm
Pin length :
25 -300 mm
Hook size :
22 mm ,25 mm ,30mm
Parts :
Self locking washers , lacing hooks , lacing washer
Sample :
Yes
Application :
Thermal insulation covers fixing
Description

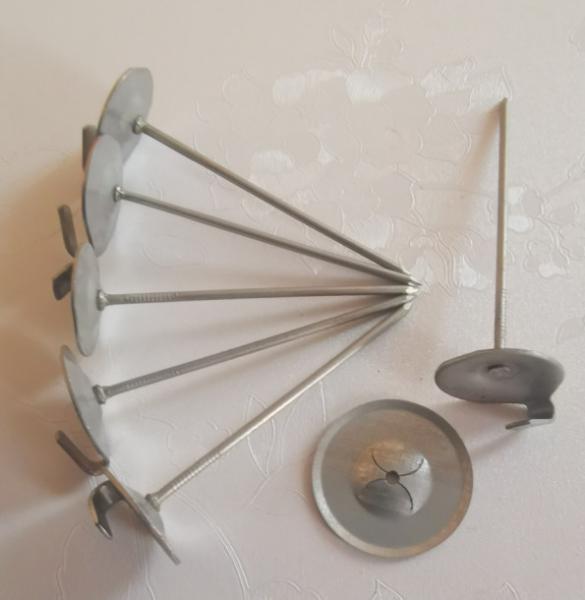

SS Lacing Anchors With Hooks And Washers For Thermal Insulation Covers

Description Of The Lacing anchors

SS Lacing anchors is widely used for fixing the thermal insulation covers , It usually use lacing hangers/pins, lacing hooks , self locking washers and tie wire , etc .


The insulation material type just according the installing methods .The applicaiton area as following :


  • Exhaust insulation blankets

  • fabric expansion joints

  • temptec exhaust blankets

  • mat insulation

  • thermal insulation covers

  • cooling insulation covers

  • heat insulatiuon covers


Name Lacing anchors
Mateiral Stainless steel 304,316 in common , also coculd be Galvanized steel
Pin diameter Pin length(25mm-120mm) Pin length(120mm-200mm) Pin length(200mm-300mm)
14Ga /12Ga 12Ga ,3.0mm 3.0mm -4.0mm as request
Hook size 22mm 22mm or 25mm 25mm or 30mm
Washer size 25mm /30mm/38mm in common
Thickness 1.0mm in common
Application for fixing the thermal insulaton covers .
Refer according to your request to produce the lacing anchors


How to install the The Lacing anchors


SS Insulation Blanket Washer also could be used with stainless steel lacing rings and lacing wires to fasten the the removable insulation blankets or covers.


Related Products Of The Lacing Anchors

Below is the Common parts of the related lacing anchors . Such as Lacing hooks , Lacing washers


SS Lacing Anchors Hooks And Washers For Thermal Insulation Covers Item: SS Lacing Hooks-1 Hole
Material: Stainless Steel
Diameter: 7/8" / 22mm
Thickness: 1mm
Type: With one 3/16" / 5mm hole in the center
Hook Size: 5x11mm
SS Lacing Anchors Hooks And Washers For Thermal Insulation Covers

Item: SS Lacing Hooks-2 Holes
Material: Stainless Steel
Diameter: 7/8" / 22mm
Thickness: 1mm
Type: With two 3/16" / 5mm hole in the center
Hook Size: 5x11mm
SS Lacing Anchors Hooks And Washers For Thermal Insulation Covers

Item: SS Lacing O-Rings

Type :Weld type & Non-weld
Material: Stainless Steel
Ring Diameter: 30mm
Wire Diameter: 3mm
SS Lacing Anchors Hooks And Washers For Thermal Insulation Covers

Item: SSLacing D-Rings

Type :Weld type & Non-weld
Material: Stainless Steel
Ring Diameter: 25x30mm
Wire Diameter: 1mm

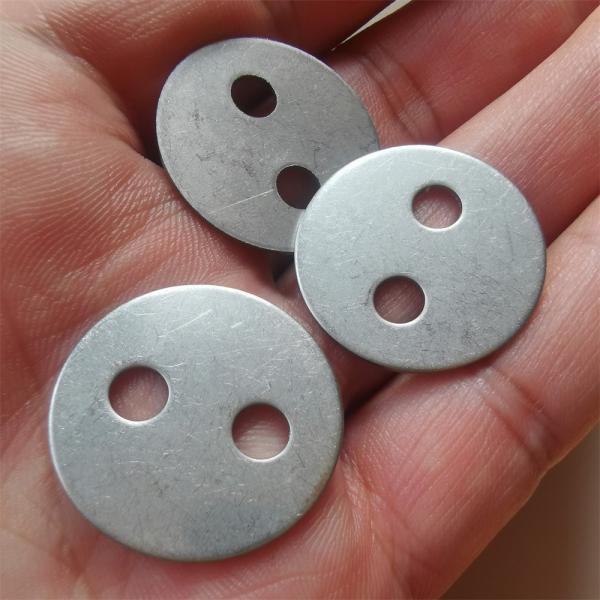

SS Lacing Anchors Hooks And Washers For Thermal Insulation Covers tem: SS Lacing Washer-2 Holes
Material: Stainless Steel
Diameter: 25mm
Thickness: 1mm
Type: With two 3/16" / 5mm hole in the center

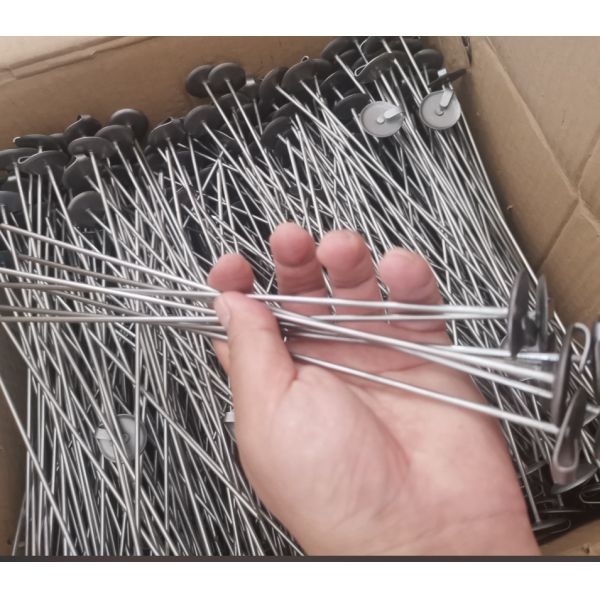

Package Of The Lacing Washers

1. Put the lacing anchors In carton , and then on the pallets .

2. It also could be packed as request for big order .


SS Lacing Anchors Hooks And Washers For Thermal Insulation Covers


FAQ Of Huihao Hardware Mesh Product Limited.


1. Are you a manufacture or a trader?

We are a manufacture, located in Hebei province, China.

2. Do you support product customization?
Yes, the material, the surface finish, the wire diameter, the length all could be customized.

3. Can i get samples?
Yes, samples for quality confirm are supported.

4. Can you accept small orders?

Yes, for common size, we accept small orders.
