Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Specifications
Brand Name :
Huihao
Model Number :
Insulated anchor Pins
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union,PAYPAL
Supply Ability :
500000 pcs per 15 days
Delivery Time :
5-8 work days
Packaging Details :
1.500pcs per bag, 10 bags per carton.72 cartons per pallet 2.1000pcs per carton, 48 cartons per pallet. 3. to be your requirements
Material :
carbon steel
Finished :
galvanized steel
Pin Diameter :
12Ga
Head Diameter :
25mm or 30mm , etc
Pin length :
30mm,50mm, 80mm etc
Sample :
Available
Description
Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Product Specifications
Attribute Value
Material carbon steel
Finished galvanized steel
Pin Diameter 12Ga
Head Diameter 25mm or 30mm , etc
Pin length 30mm,50mm, 80mm etc
Sample Available
Product Description

Cup Head Pins with Paper Washer is a fabricated part made up of a weld pin and a staked on retaining washer. Cup Head Pins with Paper Washer installed are usually applied with a capacitor discharge stud welder. They are commonly used for securing insulation and as a hook-less lacing anchor to secure insulation inside fabricated blankets.

Cup Heads are widely accepted as labor-saving fasteners in the thermal and acoustic insulation markets for use in industrial and commercial applications. The most popular style of Cup Head Weld Pins is produced out of a mild steel weld nail with a galvanized-coated mild steel retaining washer.

Specifications
Cupped Head Weld Pin diameter Base size Length Material Finished
2.7mm 25mm, 30mm 15-250mm Mild steel, stainless steel copper Zinc/copper plating
3mm 25mm, 30mm 15-250mm
3.4mm 25mm, 30mm 15-250mm

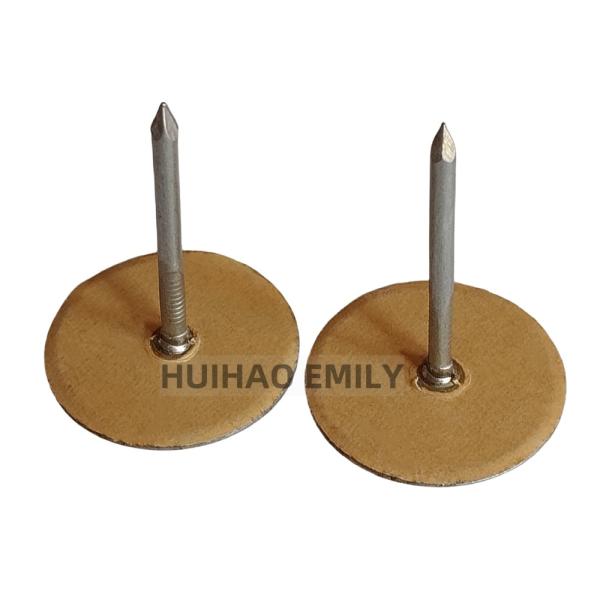

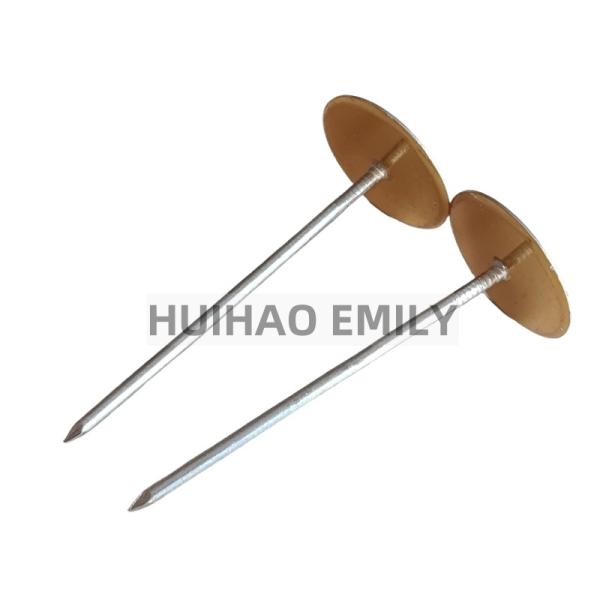

Product Image
Galvanized Steel Cup Head Weld Pins,12ga Insulated Cup Head Pins With Paper Base
Key Features
  • Beveled Edge Cap: Prevents tearing of duct liner
  • Faster Welds: Forged diamond point design creates more electrical resistance for faster
  • Better Plating: Zinc and Chromate plating exceeds SMACNA standards and gives a more professional appearance.
  • Reduced Down Time: Consistent point quality reduces frequency of machine adjustments.
  • Stronger Welds: Hardened steel point assures positive electrical contact for complete sheet to pin fusion.
  • Applied with Standard Equipment: Easily applied with Automatic Pin Welder or most standard hand held or hopper fed resistance welders
Packaging Information
  • 500pcs per carton. 72 cartons per pallet
  • 1000pcs per carton, 48 cartons per pallet.
  • Custom packaging available to meet your requirements
