Galvanized Steel M8X110mm Insulation Pins, Metal Anchor Wall Plugs for fastening rigid insulation to masonry. It is as simple as drilling straight through the insulation into the masonry and hammering the insulation fixing home. The 35mm diameter head allows the load to be spread over a larger area.

Insulation fixings have a 35mm perforated head. A dome-shaped reinforcing center is attached to a patented precise pitch Thor Helical shank to corkscrew into a variety of building materials including concrete, brick, perforated brick, Thermalite block. Metal anchor wall plugs are suitable for fixing mineral wool insulation to masonry walls and concrete soffit boards in all applications where fire-resistance is required. Also suitable for fixing Kingspan or Celotex panels where external wall insulation includes rendalath, expamet or other mesh types. Fixings are available in 304 grade Stainless Steel.

• Quick and simple hammer-set installation saves work
• No additional screws or nails required
• Provides fire protection

Expansion Insulation Fixing Pins are suitable for:

• Concrete
• Natural stone with dense structure
• Solid brick
• Solid sand-lime brick
• Solid block made from lightweight concrete
• Aerated concrete
• Vertically perforated brick
• Perforated sand-lime brick

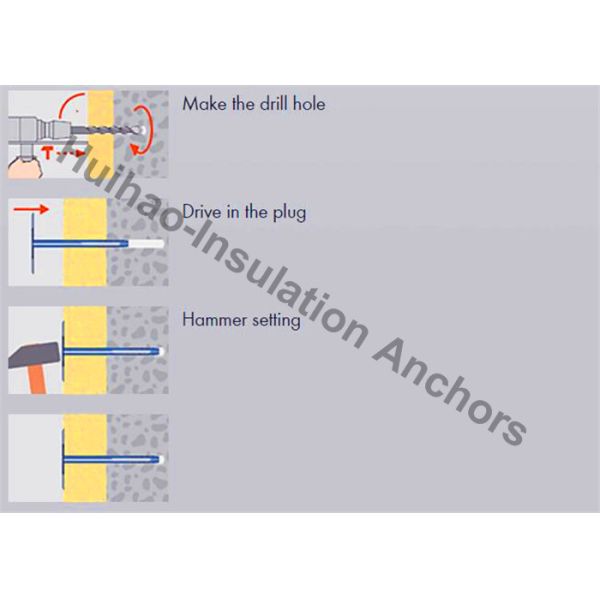

Can be fixed either manually using a conventional hammer or driven home using a hammer drill fitted with an SDS adapter. The anchor has a wide integral washer-like retaining head making it quick and easy to fix, with or without pilot holes.

• 110mm insulation fixings for 40-70mm insulation boards
• 145mm insulation anchors for 75-105mm insulation slabs
• 170mm fireproof fixings for 105-130mm insulation panels
• 200mm metal fasteners for 135-160mm insulation boards
