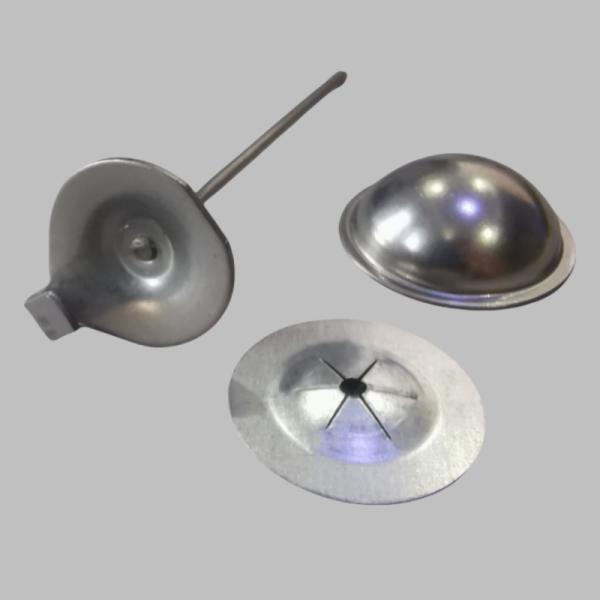

Lacing anchor Type Insulation Mounting Pins For Fixing Fabrication
Lacing anchor Type Insulation Mounting Pins For Fixing Fabrication
Lacing anchor Type Insulation Mounting Pins For Fixing Fabrication
Lacing anchor Type Insulation Mounting Pins For Fixing Fabrication
Lacing anchor Type Insulation Mounting Pins For Fixing Fabrication
Lacing anchor Type Insulation Mounting Pins For Fixing Fabrication
Specifications
Price :
USD0.06-USD0.11/PC
material :
stainless steel 304, 316
ring size :
3x30mm
washer size :
1mmx38mm
hook size :
30mmx1mmx11mm
application :
Fixing Fabrication
key word :
lacing Hook system
small order :
available
sample :
available
Brand Name :
huihaokasite
Model Number :
insulation mounting pins
Place of Origin :
China
MOQ :
30000sets
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
1000000 psc per month
Delivery Time :
5-8 work days
Packaging Details :
500 sets per bag, 4 bags per cartons
Certification :
ISO 9001-2015
Description
Lacing Anchor Type Insulation Mounting Pins For Fixing Fabrication
Attribute Value
Material Stainless Steel 304, 316
Ring Size 3x30mm
Washer Size 1mmx38mm
Hook Size 30mmx1mmx11mm
Application Fixing Fabrication
Key Word Lacing Hook System
Small Order Available
Sample Available

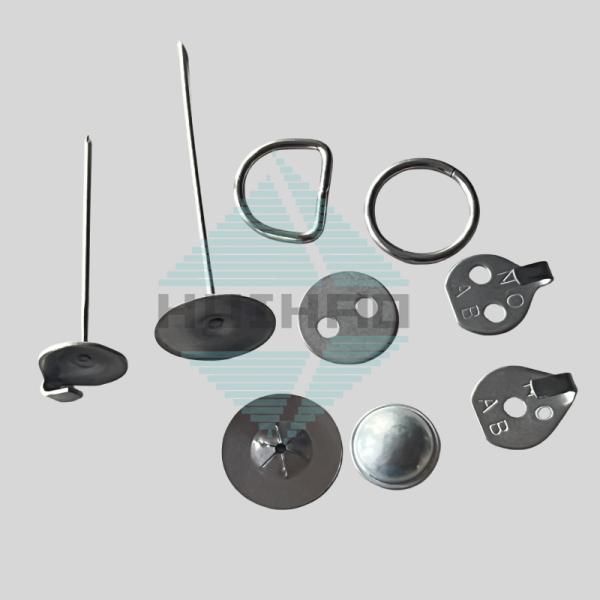

Lacing Ring Washer System and Lacing Hook System are used for securing and tying removable insulation blankets. They work with lacing washers to fasten the insulation. Install the lacing hook with wire, secure with lacing washer, and use lacing wire to fasten the insulation through the lacing hooks.
Lacing anchor Type Insulation Mounting Pins For Fixing Fabrication
Specification of Stainless Steel Lacing Hook:
22mm head diameter, lacing hook material thickness 1mm, hook length 11mm
Specification of Stainless Steel Lacing Washer:
Material thickness: 0.5mm-1mm, type: round plate with two holes; diameter: 25mm-40mm
Specification of Stainless Steel Lacing Ring
Wire Diameter Inter Diameter SWL(KG) BL(KG)
3MM 15MM-40MM 162 650
4MM 20MM-40MM 250 1000
5MM 25MM-65MM 500 2000
6MM 25MM-90MM 800 2700
8MM 30MM-100MM 1250 3200
9MM 30MM-90MM 1500 5000
10MM 40MM-100MM 2125 6200
12MM 50MM-140MM 2500 10000
13MM 55MM-160MM 2875 11500
Application of Stainless Steel Lacing Hook Systems
Lacing anchor Type Insulation Mounting Pins For Fixing Fabrication
Lacing Hook and Two-Hole Washer System provides an even lower cost and the same easy-to-lace design. The tie wire application provides more blanket flexibility with equally secure performance. The Series 80 Lacing Hook is similar in function and appearance to the Lacing Anchors. The Series 80 Lacing Hook is stocked in mild steel, cadmium plated and stainless steel. All Series 80 Lacing Hooks are stamped "NO AB" to indicate no asbestos at no additional cost.
Application of Stainless Steel Lacing Ring & Washer System
Lacing anchor Type Insulation Mounting Pins For Fixing Fabrication
Lacing Washer can also be used with a Lacing Ring and a second L100 lacing washer, which are fastened to the insulation blanket with a tie wire. One advantage with the lacing system is the positive detention of the lacing wire. The insulation blanket can be loosened for access or repositioning, without having to worry about the lacing wire falling away from the hooks. It is also advantageous in maintaining the position of the lacing wire when insulating complex shapes. All L100 Lacing Washers are stamped "NO AB" to indicate no asbestos, at no additional cost.
