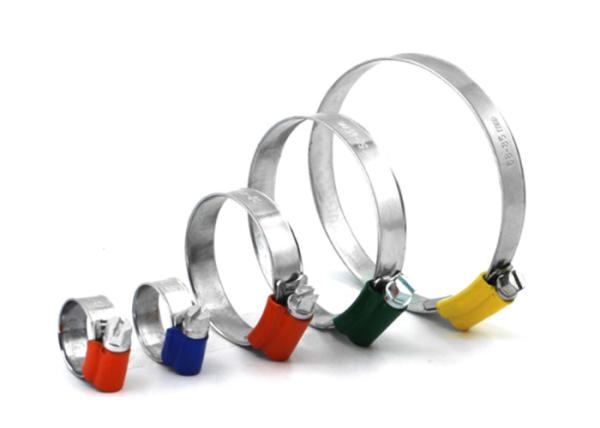

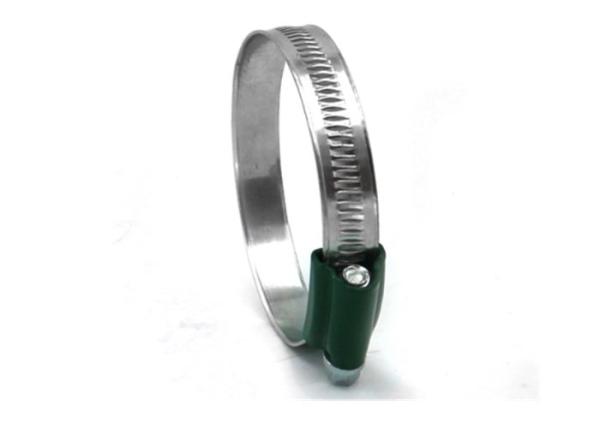

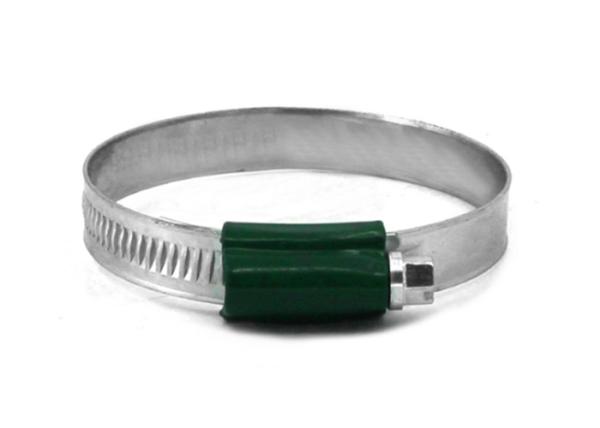

Insulation Metal Clamping Band Hose Clips
Insulation Metal Clamping Band Hose Clips
Insulation Metal Clamping Band Hose Clips
Insulation Metal Clamping Band Hose Clips
Insulation Metal Clamping Band Hose Clips
Insulation Metal Clamping Band Hose Clips
Specifications
Brand Name :
huihaokasite
Model Number :
British Hose Clamp
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C,T/T
Supply Ability :
2000pcs per 15 days
Delivery Time :
8 work days
Packaging Details :
100pieces/bag,20bags/carton
Price :
USD0.2
name :
British Hose Clamp
material :
stainless steel 304/ galvanized steel
brand size :
9.7/11.7mm
usage :
Pipe Clamp
clamping range :
8-14/277-307mm
finished :
zinc plated
Description

Insulation Metal Clamping Band Hose Clips


specification of British Hose Clamp Wth Tube Housing, Insulation Metal Clamping Band Hose Clips


Material
Band
Housing
Screw
W1
Zinc plated steel
Zinc plated steel
Zinc plated steel
W2
AISI 430ss
AISI 304ss
Zinc plated steel
W4
AISI 304ss
AISI 304ss
AISI 304ss


clamp range mm brand width mm pcs/bag pcs/carton suggested
installtorque
8-14 9.7 100 2000 3.0Nm
11-17 9.7 100 2000 3.0Nm
13-20 9.7 100 2000 3.0Nm
15-24 9.7 100 2000 3.0Nm
18-28 9.7 100 2000 3.0Nm
22-32 9.7 50 1000 3.0Nm
26-38 9.7 50 500 3.0Nm
32-44 9.7 50 500 3.0Nm
38-50 9.7 50 500 3.0Nm
44-56 9.7 25 500 3.0Nm
50-65 9.7 25 250 3.0Nm
58-75 9.7 25 250 3.0Nm
68-85 9.7 10 250 3.0Nm
77-95 9.7 10 250 3.0Nm
15--24 11.7 50 500 4.8Nm
19--28 11.7 50 500 4.8Nm
22--32 11.7 50 500 4.8Nm
26--38 11.7 50 500 4.8Nm
32--44 11.7 50 500 5.2Nm
38--50 11.7 50 500 5.2Nm
44--56 11.7 25 500 5.2Nm
50--65 11.7 25 500 5.2Nm
58--75 11.7 25 200 5.2Nm
68--85 11.7 25 200 5.2Nm
77--95 11.7 10 200 5.2Nm
87--112 11.7 10 200 5.2Nm
104--138 11.7 10 100 5.2Nm
130--165 11.7 - 100 5.2Nm
150--180 11.7 - 100 5.2Nm
175--205 11.7 - 100 5.2Nm
200--231 11.7 - 50 5.2Nm
226--256 11.7 - 50 5.2Nm
251--282 11.7 - 50 5.2Nm
277--307 11.7 - 50 5.2Nm


details of British Hose Clamp Wth Tube Housing, Insulation Metal Clamping Band Hose Clips


Surface treatment difference:

Galvanizing treatment: (blue white zinc, multicolored zinc, military green, brown, black, etc.); The corrosion resistance is 48-96 hours

Zinc aluminum coating: (Dacromet, Jiumei, Meili, etc.); The corrosion resistance is 120-1080 hours.

Metal coating: (Zn-Ni alloy, gold plating, silver plating, copper plating, etc.); The corrosion resistance is 240-720 hours.



Insulation Metal Clamping Band Hose Clips


British Hose Clamp Wth Tube Housing is widely used in various fields such as automobile oil circuits, engine pipelines, drainage pipelines,

building materials, hardware, etc.
