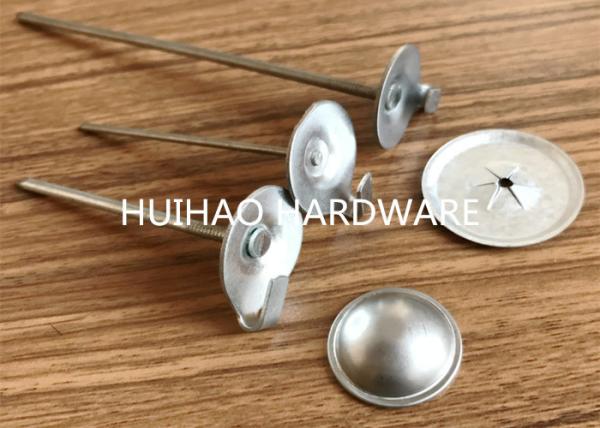

Stainless Steel Insulation Anchor Pins For Cooling Insulation Covers
Stainless Steel Insulation Anchor Pins For Cooling Insulation Covers
Stainless Steel Insulation Anchor Pins For Cooling Insulation Covers
Stainless Steel Insulation Anchor Pins For Cooling Insulation Covers
Stainless Steel Insulation Anchor Pins For Cooling Insulation Covers
Stainless Steel Insulation Anchor Pins For Cooling Insulation Covers
Specifications
Brand Name :
Huihaokasite
Model Number :
lacing anchor
Certification :
ISO9001-2015
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
L/C,T/T,Western Union,Paypal
Supply Ability :
500000 pcs per 15 days
Delivery Time :
15 days after the payment
Packaging Details :
paper carton + wood pallet
Price :
USD0.06-USD0.12/PC
Material :
stainless steel , galvanized steel. mild steel
Head :
7/8" as standard
Spindle Dia :
12ga or 14ga As Standard
length :
2-1/2" or 4-1/2" as standard
Head thickness :
1mm
application :
Removable Insulation Jacket
Description

Stainless Steel Insulation Anchor Pins For Cooling Insulation Covers


Specification Of Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin


product nameinsulation lacing anchors pins
head diameter22mm, 30mm
hook size5mmx11mm
head material thickness1mm
pin diameter2.2mm, 2.7mm, 3mm
pin length25.4mm-140mm


  • Materials: stainless steel , galvanized steel and mild steel
  • fixing parts : Self-locking washers , speed clips and dome cap washers. or to be your request.
US Standard of lacing anchorEU standard of lacing anchorsAustralia standard of lacing anchors

The head diameter is 1",
the pin diameter is 10Ga,
the length we have 1/2"- 2 "

The head diameter is 30mm,
the pin diameter is 2.7mm,
there are many different length for EU market,
the length we manufactured-22mm- 100mm
Some customer will need kraft paper under head,
some customer will need a plastic sleeve on pin,

People in Australia will need the US standard or EU standard weld pins, someone will need the 14Ga pin.
The mostly of length in Australia is 25mm, 50mm, 75mm, 100mm.
Lacing anchors marked NO AB to notify the blanket is asbestos free


types of Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin

Stainless Steel Insulation Anchor Pins For Cooling Insulation Covers

How to Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin

1: prepare the insulation blanket or removable cover
2: press the lacing anchor through the insulation
3: press the self locking washer into the pin to fasten the insulation
4: bend over or clip off the pin
5:install the insulation blanket or removable cover
6: Lace the hook by lacing tie in order to fasten the insulation.


applications of Cooling Insulation Covers Lacing Anchors, Removable Insulation Jacket Anchor Pin

stainless steel material lacing anchors are wildy used for fixing:
  • exhaust insulation blankets
  • fabric expansion joints
  • temptec exhaust blankets
  • mat insulation
  • thermal insulation covers
  • cooling insulation covers
  • heat insulatiuon covers
  • freeze protection cover
  • removable insulation covers
  • tank insulation cover
  • flanhe leak insulation covers
  • offshore production cover
  • heat-shield insulation blankets
  • removable insulation jacket

Stainless Steel Insulation Anchor Pins For Cooling Insulation Covers
