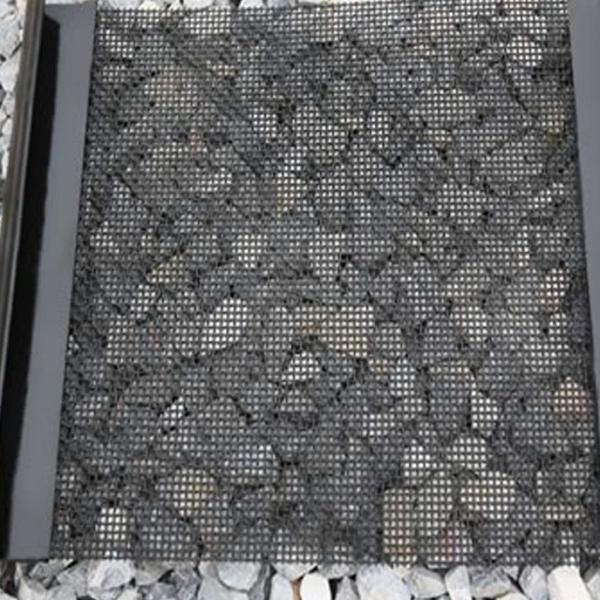

3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh
3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh
3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh
3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Hook :
45 60 180
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane, rubber
Aperture :
0.6-160mm
Specification :
1.5*2M 2*2M 2*2.5M 2*3M
Standards :
EN 10270-1/SL, BS481 and ISO 4873
Tensile Stregth :
1000-1800Mpa
Usage :
vibrating screen
Wire Dia :
0.3mm - 16mm
Description

3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh

Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio. The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped, flat mesh, etc.).

Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, quarry screen mesh etc. it is wearable resistance, high frequency and longer life. Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.

Below are the popular material chemical composition:

No. Steel Grade Chemical Composition
C Si Mn
1 45 0.42-0.50 0.17-0.37 0.50-0.80
2 50 0.47-0.55
3 55 0.52-0.60
4 60 0.57-0.65
5 65 0.62-0.70
6 70 0.67-0.75
7 65Mn 0.62-0.70 0.90-1.20
8 72A 0.70-0.75 0.15-0.35 0.30-0.60

VIBRATING SCREEN MESH DETAILS:

3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh
Material low carbon steel wire, mild steel wire, high carbon steel wire, 45# , 65Mn wire
Wire diameter 0.3-12mm
Hole size 0.5mm-70mm
Hole shape square hole, rectangle hole. if hole is rectangle, please advice the hole length and width.
Hook Flat (without hook), with hook and steel plate, with hook not with steel plate
Dimension A and B. if with hook, please show it on above drawing.
Remark We can produce any size crusher stone screens according to customer's requirements like different mesh opening, width or length. If you have drawings, it is best.
CRIMPED WIRE MESH WEAVING TYPE:
Plain weave. Double crimped. Intermediate crimped. Flat top crimped.
3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh
DIFFERENT EDGE DETAIL SHOW:

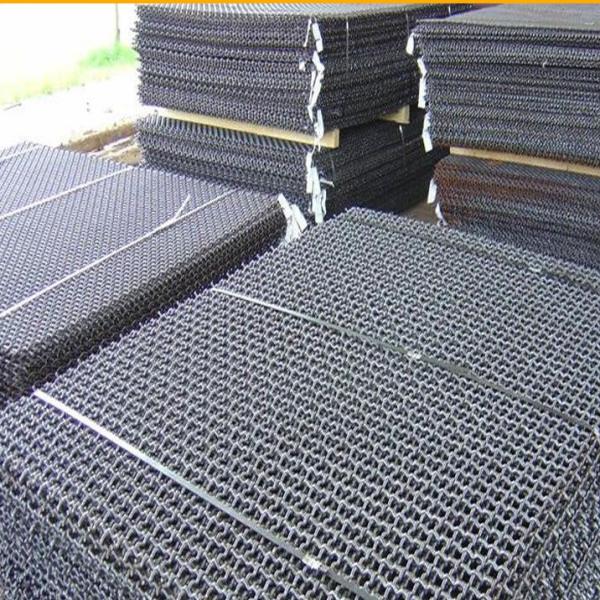

3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen MeshPRODUCTS DISPLAY:
3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen MeshRUST PROTECTION TREATMENT:
Rust Protection Treatment Of Heavy Duty Cimped Wire Mesh Is necessary. It can be protect the mesh without rust. especially during transportation by sea. When arrive warehouse, it can extend the storange time.
3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh


CRUSHER SCREEN APPLICATION:
Vibrating Screen Mesh is available in different wire diameters, mesh opening and open area. This is widely used for various applications such as screening, sizing, grading, shifting, separating, scalping and washing. This wire mesh can be also custom designed in case plungers and vibrating rods are needed to insert for protection against tearing. It is installed above rubber beads to avoid metal to metal contacts.

3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh

Packaging & Shipping

3mm 65mn Steel Vibrating Sieving Screen Mesh/Quarry Mesh Screen/Crusher Screen Mesh
