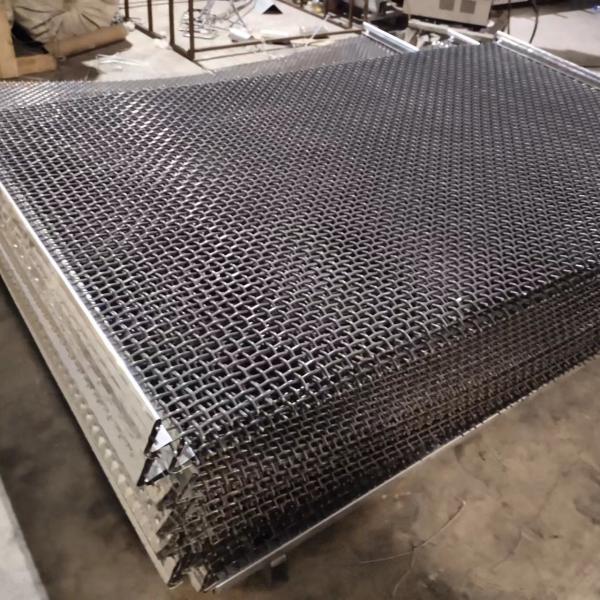

Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry
Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry
Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry
Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry
Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry
Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry
Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry
Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Mainly Material :
High and Middle Carbon Steel, SS 304,316
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane, rubber
Mesh Size :
Customized according to customer's requirements
Mesh Type :
Woven wire mesh, welded wire mesh, perforated metal mesh
Opening :
0.6-160mm
Specification :
1.5*2M 2*2M 2*2.5M 2*3M
Tensile Stregth :
1000-1800Mpa
Usage :
vibrating screen
Description

Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh for Quarry

Crimped wire mesh is a wire mesh product that the wire has been embossed by a ginning machine and then was woven into a metal mesh of different specifications through a new type of woven mesh machine.

Crimped woven wire mesh is made in a variety of materials through crimping mesh machine, a kind of universal wire products with square or rectangular openings.

2. Manufacture Method
The wires are crimped before they are woven. Our weave styles include, but not limited to, intermediate crimp weave in both W and F directions, lock crimp weave, flat top crimp weave, and crimp weave in both W and F directions and intermediate crimp weave in either W or F direction.
3. Specification

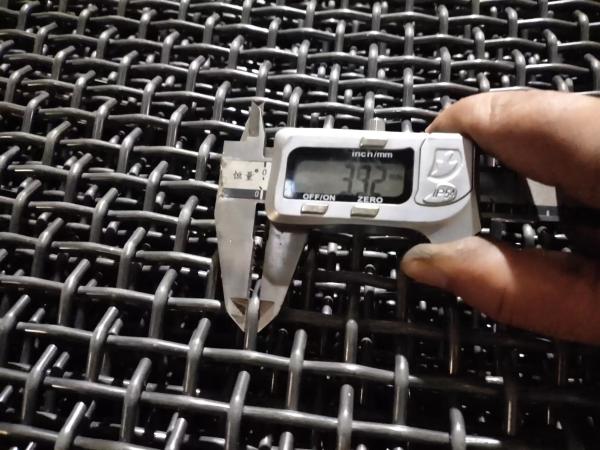

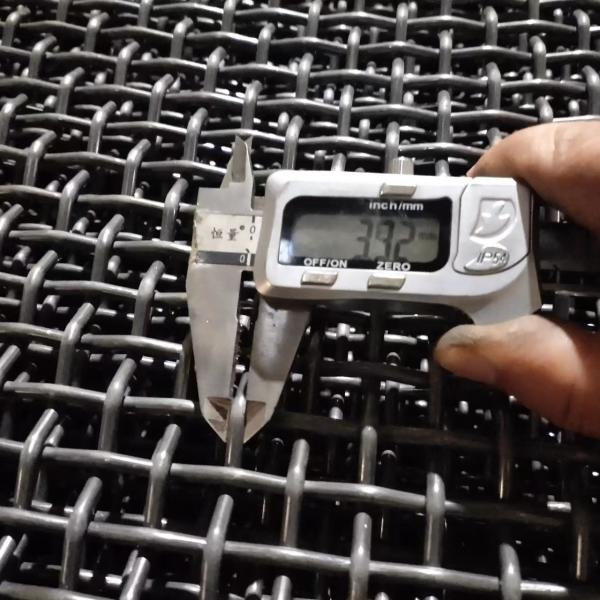

Wire diameter ranges from 1.37mm to 12.7mm, and aperture size 3mm to 100mm. The width and length of each mesh panel could be specified by the client.
4. Excellent Features
Screen mesh surface is smooth without snubby phenomena.
Mesh panel is square without obliqueity.
Overall structure is tight without looseness.
Mesh size is uniform with very small tolerance.
Service life is very long.
5. Uses
Quarry Screen Mesh is mainly used for primary filtration of mining, such as coal, iron ore, stones, etc. And also used in asphalt mixer equipment, mine vibrating screens, screen decks and trommels.

Below are the popular material chemical composition:

Product Name Vibrating Screen Mesh
Material 65Mn,45#,50#,55#,60#,70#,72A etc
Wire Diameter 0.8-12.7mm
Mesh Hole 2-100mm,tolerance +-3%
Certification SGS standard,ISO9001:2008
Angle 30 degrees, 45 degrees,60 degrees
Crimped Wire Mesh Shape v-shaped, u-shaped
Hook Type C or U hook for 30°-180°
Weaving Type Double crimped, intermediate crimped, flat top crimped, lock crimped
Mesh Type Square, rectangular slot, long slot.
Surface Type Anti rust oil painted
Edge Preparation Plain, bent, reinforced shroud, welded shroud, bolt shroud.

Double Crimp Woven Wire
Used for medium to heavy wire in relation to screen opening size.

Lock pre-crimp mesh
Unlike plain crimped mesh, lock crimped mesh is characterized by straight sections of wire connected by a well defined bump at the wire intersections, such a manner to actually lock the wires together, offering further assurance of no wire movement. Our lock crimp wire mesh is good in quality and competitive at price.

Flat Top Woven Wire
Flat top is similar to the lock crimp, but all of its crimping is offset to one side of the material. This creates a smooth top surface-with no high points-as all wires are woven on a single plane. Its bottom side, however, has crimp bumps approximately twice the height of lock crimp bumps. Flat top was originally created to allow for the smooth flow of materials over the surface and provide a flat face for use as backer screens. Flat top is ideal for aggregate sizing and sorting, agriculture, filtration, and heat-treating applications.

Intermdiate Crimp Woven Wire
Used in coarse weaves of lighter gauge woven wire to provide greater stability, tightness of weave and maximum rigidity. Very common in wire mesh openings larger than 1/2" (12.7mm).

Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry

stainless steel crimped wire mesh

Stretching Reusable Mine Sand Gravel Vibrating Steel Screen Mesh For Quarry

mild steel vibrating screen mesh
