High Tensile 65mn Steel Vibrating Screen Mesh Crimped Wire
High Tensile 65mn Steel Vibrating Screen Mesh Crimped Wire
High Tensile 65mn Steel Vibrating Screen Mesh Crimped Wire
High Tensile 65mn Steel Vibrating Screen Mesh Crimped Wire
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Hook :
45 60 180
Length :
Require
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane, rubber
Mesh Size :
Customized according to customer's requirements
Mesh Type :
Woven wire mesh, welded wire mesh, perforated metal mesh
Opening :
0.6-160mm
Specification :
1.5*2M 2*2M 2*2.5M 2*3M
Tensile Stregth :
1000-1800Mpa
Usage :
vibrating screen
Wire Dia :
0.3mm - 16mm
Wire Diameter :
0.5mm - 22mm
Description

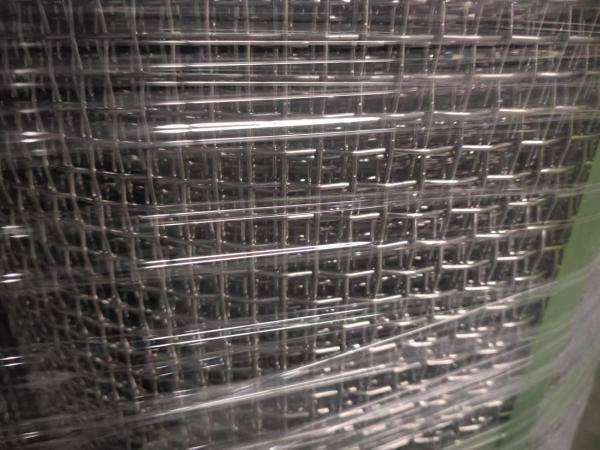

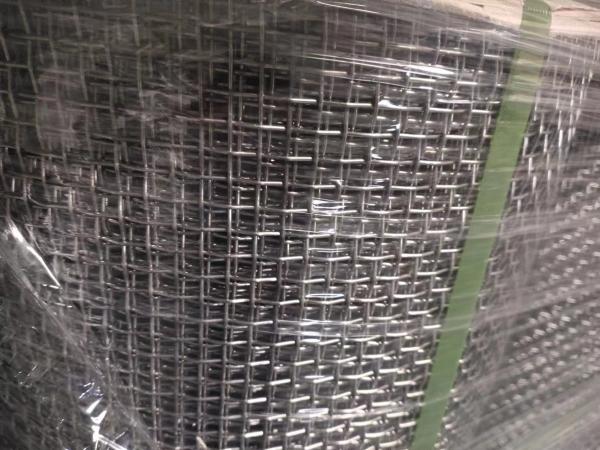

High Tensile 65mn Steel Vibrating Screen Used Crimped Wire Mesh

Vibrating Screen Mesh are manufactured in either High Tensile Steel or Stainless steel, in either plain or intercrimp profiles, and a variety of weave patterns, including square, rectangular and double or triple.

Opening: 0.5mm to 100mm.
Wire Dia: 0.8mm to 12mm.
Width and Length: As per your requirements.
Wire Material: Spring Steel, High Carbon steel, Stainless Steel, G.I. Etc.

Vibrating Screen Mesh
Aperture Nominal Aperture Nominal Aperture Nominal
(mm) Wire Dia. (mm) Wire Dia. (mm) Wire Dia.
(mm) (mm) (mm)
2 1.25 16 4 40 5.6
2.5 1.25 5 6.3
3.15 1.25 5.6 8
4 1.6 20 5 10
1.25 5.6 45 5.6
5 1.6 22.4 5 8
2 6.3 10
2.5 25 5 50 6.3
6.3 2 6.3 12
2.5 8 56 6.3
3.15 28 5.6 8
8 2 6.3 10
2.5 8 12
3.15 31.5 5.6 63 6.3
10 2.5 6.3 8
3.15 8 10
4 10 12
12.5 3.15 36 5.6 80 8
4 6.3 10
5 8 12
14 3.15 10 100 8
4 10
5 12
Product Name Crimped wire mesh
Material Stainless steel,copper,brass,aluminium alloy,or customized
Wire diameter 0.7mm-5mm
Openning size 1.4mm-60mm
Weaving pattern Plain crimped,intermediate crimped,lock crimped,flat top crimpd

Feature of Vibrating Screen Mesh

  • High Tensile .
  • High sieve net rate.
  • Wear resistance,corrosion resistance.
  • Uniform mesh,high open rate.
  • Prevent slippery,anti vibration,good elasticity and toughness.
  • Long using life.
