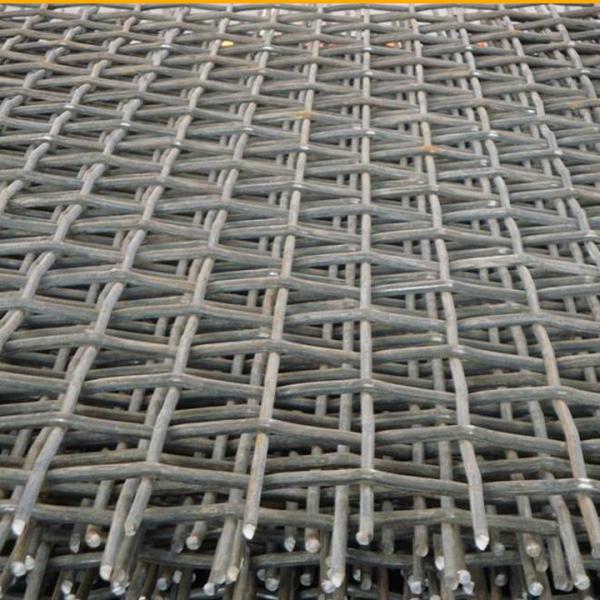

Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh
Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh
Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh
Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Hook :
45 60 180
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane, rubber
Aperture :
0.6-160mm
Specification :
1.5*2M 2*2M 2*2.5M 2*3M
Standards :
EN 10270-1/SL, BS481 and ISO 4873
Tensile Stregth :
1000-1800Mpa
Usage :
vibrating screen
Wire Dia :
0.3mm - 16mm
Description

Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh

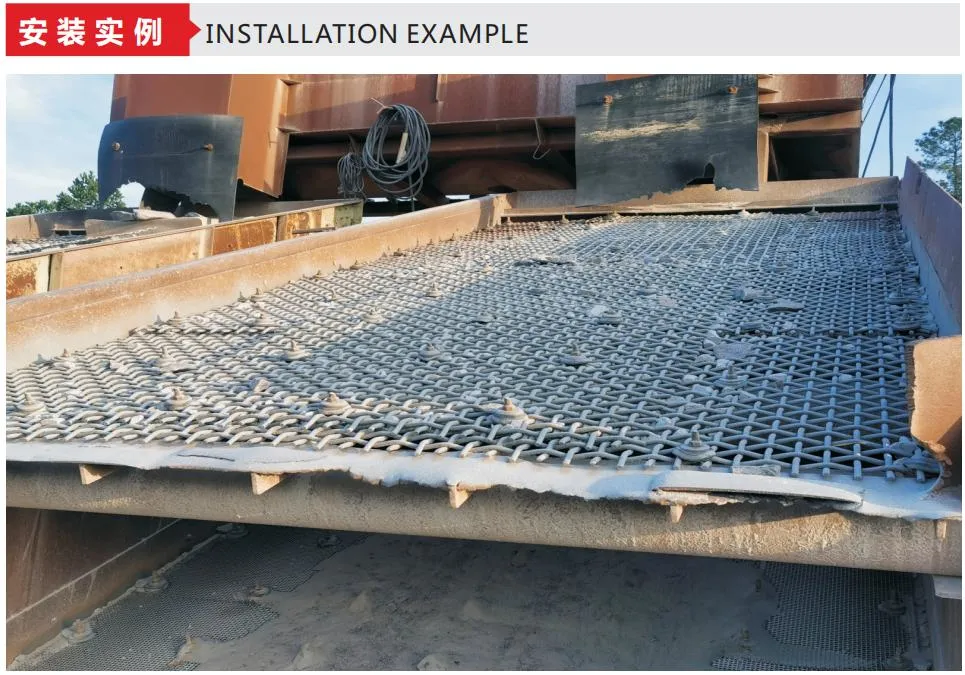

Woven wire vibrating screen is also called quarry screen mesh or stone crusher screen mesh. It is made of spring steel wire (high carbon steel wire, medium carbon steel wire, manganese steel wire) and stainless steel wire. The high-quality raw materials make woven vibrating screen mesh have many features, such as high tensile, wear, temperature and weather resistance and so on. With so many features, the woven vibrating screen mesh is used on vibrating machines in screening and sizing all kinds of sand, gravel, coal, stone, rock and other materials in mining, quarry, aggregate production industries.

Material: High tensile spring steel, manganese steel, High carbon and medium carbon steel wire, black wire, and stainless steel wire.

Wire diameter: 0.71-14 mm.

Opening size: 1-110 mm.

Surface treatment: Galvanized before weave and galvanized after weave, painted.

Hole type: Square mesh, rectangular mesh.

Hook Type: C or U hook for 30° - 180°

Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.

Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.



5.Vibrating screen mesh Hook:60-180 degree, C hook available
Hook Covered edge :galvanized metal or others

6.Vibrating screen mesh Application: it is used extensively in the minerals extraction, food and chemical processing, water and waste treatment, and construction industries, coal industry, decorate area, etc

SWG Wire diameter (mm) mesh Mesh size ( mm) Weightkg/m2
14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 1 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 2 20
6 4.8 0.7 3 14
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5 1.9


Woven and hook type:

Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh


Product pics:
Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh
Exhibition scene:
Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh
Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh

Features

High strength, not easily deformed.

Wear resistance, corrosion resistance, and rust resistance.

High temperature is resistant.

High-quality ductility and toughness.

Mesh uniform.

Long service life.

The opening of the cloth is neat and precise.

Various materials for choice.

Beautiful surface.

Acid and alkali resistance.

Uses: used in mining, petrochemical, food and medical equipment, can be widely used in various
machinery manufacturing industries


Packing method:
Manganese Steel Wire Woven Wire Vibrating Screen Quarry Screen Mesh
