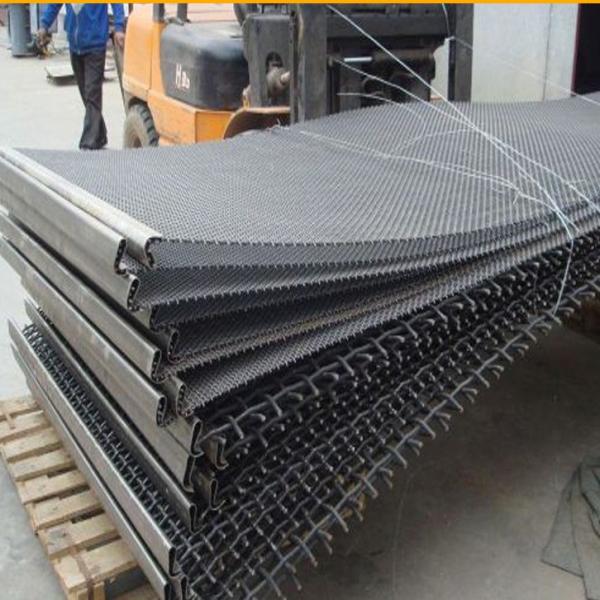

Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Hook :
45 60 180
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane, rubber
Aperture :
0.6-160mm
Specification :
1.5*2M 2*2M 2*2.5M 2*3M
Standards :
EN 10270-1/SL, BS481 and ISO 4873
Tensile Stregth :
1000-1800Mpa
Usage :
vibrating screen
Wire Dia :
0.3mm - 16mm
Description

Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh

Crimped Wire Mesh is made of high quality carbon steel wire, stainless steel wire, galvanized wire and other alloy material.
It has various weaving method, such as the double crimped, flat top crimped, intermediate crimped and lock crimped.
The hole type: square opening and rectangle opening, which has different wire diameter and applications.

Wire Material Galvanized steel wire
Stainless steel wire
Copper wire
Ni alloy wire
High tensile strength steel wire, 45#,65Mn steel wire
Diameter 1.2-10mm
Hole Shape Square, Rectangular,Slotted and elongated.
Woven Types Flat top,double crimp,lock crimp, corrugated crimp.
Dimension According to your request

Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
Mesh Types
Rectangular Slotted Mesh is economical to manufacture, and has a greater open area for increased air flow where binding or clogging occurs. The variable slot lengths mean it is often used to reduce flake content of material to acceptable levels.
Extra Long Slotted Mesh is manufactured with double or triple cross wires. It is stronger and more cost effective in comparison to Piano Wire or Self-Cleaning Screens. It provides a high open area and higher throughput than normal slotted mesh, decreasing the risk of clogging or binding.
Square Mesh is the most cost efficient of the Woven Mesh range with an expanded lifespan. The formation of the wire allows for screening and production of regular shaped material. Square Mesh decreases the risk of clogging.
SELF CLEANING SCREENS are recommended where the prevention of clogging and anti-pegging are required, or in very difficult areas. Crimped and straight wires are connected by cross wires at regular intervals. The wires vibrate independently of each other.

Application
Quarry Screen mesh is widely used in vibrating screen machines to filter and separate sands, gravel, coal, stones, rocks and other wet and dry materials.
Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh

Crimped Wire Mesh For Mining Screen / Vibrating Screen Mesh
