Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh
Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh
Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh
Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Hook :
45 60 180
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane, rubber
Aperture :
0.6-160mm
Specification :
1.5*2M 2*2M 2*2.5M 2*3M
Standards :
EN 10270-1/SL, BS481 and ISO 4873
Tensile Stregth :
1000-1800Mpa
Usage :
vibrating screen
Wire Dia :
0.3mm - 16mm
Description

Product Description

Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh

Steel Screen Mesh for Crusher , Stone Crusher Screen Mesh
1,Material: black wire, spring steel wire, manganese steel wire, and stainless steel wire.
2,Surface treatment: galvanized or painted.
3,Wire diameter: 0.71mm - 12.5mm.
4,Mesh size: 1mm - 100mm.
5,Hole type: square, rectangular and long slot.
6. Feature: Longer life, High adhesion, excellent efficiency of mechanical splice.
Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh

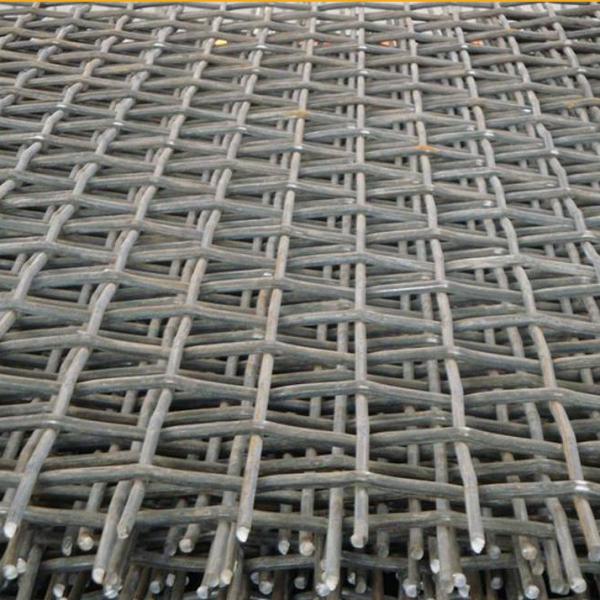

Detailed Photos

Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh
Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh





1. Name: crimped wire mesh
2. Material: high quality mild steel
3. Length :25 meters, 30 meters
4. Width: can be customized
5. Hole shape: square, etc
6. Crimped Woven wire mesh Process: Made with pre-crimped wire in the method of locked crimp, double plain weave, single wave weave, double plain weave, double crimp, space weave.

Product Parameters

Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh
Wire Gauge SWG Wire diameter mm Mesh/inch aperture Weight kg/m2
14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 1 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 4 20
6 4.8 1 2 20
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5 1.9

Product application


Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh
Sometimes you may need to attach two hooks to the ends of the shaker screen, so we have several options for you
Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh

Crimped wire mesh
is mainly used for mining industry, quarrying industry, coal industry, stone crushing industry, iron ore and steel industry, construction, cement industry, petrochemical industry, construction machinery, power plants, paper and pulp industry, etc.
Crimped wire mesh features: long using life, corrosion resistance, anti-acid and alkali, anti-high temperture, good filter performance, eliminates blinding and plugging.

Packing and shipping

Packing: Roll into a roll or several pieces in a packet on a tray, wrap in waterproof paper and cover with linen. Special packing can be arranged if necessary.
Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh
Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh

Crimped Woven Screen Mesh / Sieve Mesh / Wire Netting Metal Filter / Vibrating Screen Mesh
