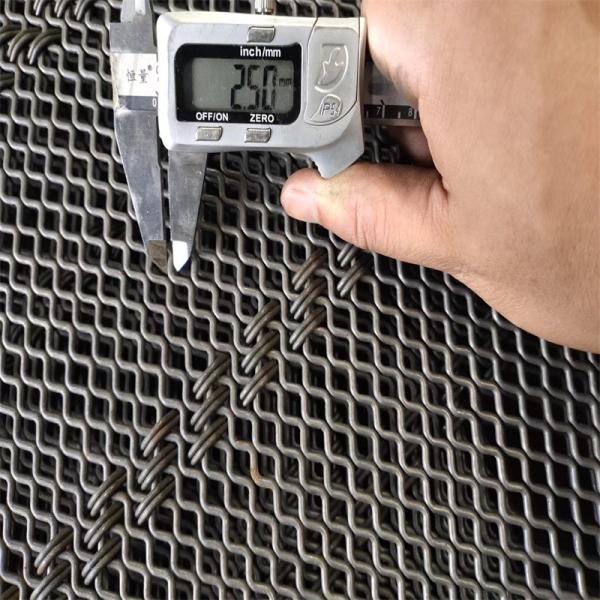

Powerscreen Woven Screen Mesh Vibrating Screen Sieves For Quarry Application
Powerscreen Woven Screen Mesh Vibrating Screen Sieves For Quarry Application
Powerscreen Woven Screen Mesh Vibrating Screen Sieves For Quarry Application
Powerscreen Woven Screen Mesh Vibrating Screen Sieves For Quarry Application
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Hook :
45 60 180
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane, rubber
Aperture :
0.6-160mm
Specification :
1.5*2M 2*2M 2*2.5M 2*3M
Standards :
EN 10270-1/SL, BS481 and ISO 4873
Tensile Stregth :
1000-1800Mpa
Usage :
vibrating screen
Wire Dia :
0.3mm - 16mm
Description

Product Description

Powerscreen Woven Screen Mesh Vibrating Screen Sieves For Quarry Application
Heavy duty Crimped wire mesh are the most widely used screens in the aggregate and mining industries, due to their high screening area, precision and price ratio. The Crimped wire mesh (mining screen wire mesh, square wire mesh) are manufactured in different geometries (square or slotted meshes) and different weaving styles (double crimped, flat mesh, etc.).

Crusher screen wire mesh is also called vibrating screen woven mesh, crusher woven wire mesh, quarry vibrating screen mesh, quarry screen mesh etc. it is wearable resistance, high frequency and longer life. Manganese steel vibrating screen mesh is made of the high tensile manganese steel, and the most widely used and common is 65Mn steel.
Material low carbon steel wire, mild steel wire, high carbon steel wire, 45# , 65Mn wire
Wire diameter 0.3-12mm
Hole size 0.5mm-70mm
Hole shape square hole, rectangle hole. if hole is rectangle, please advice the hole length and width.

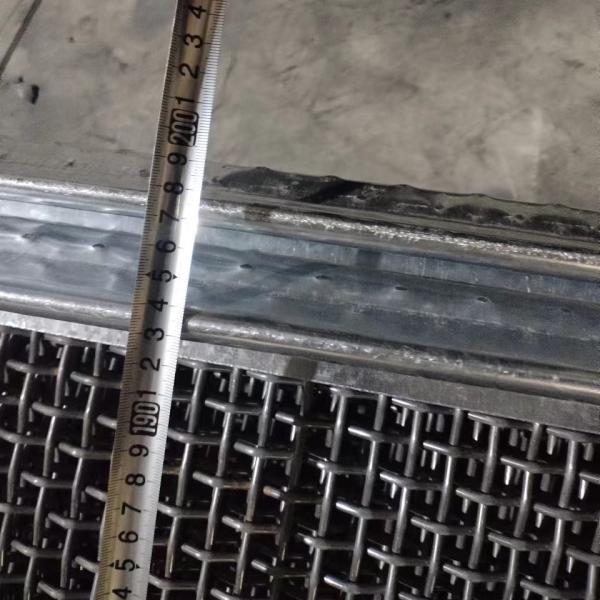

Hook Flat (without hook), with hook and steel plate, with hook not with steel plate
Dimension A and B. if with hook, please show it on above drawing.
Remark We can produce any size crusher stone screens according to customer's requirements like different mesh opening, width or length.

Powerscreen Woven Screen Mesh Vibrating Screen Sieves For Quarry ApplicationMaterials & Parameters-
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below
Table 1 Technical Parameters of Carbon Steel Wire
Grade Chemical Composition (%)
C Si Mn
45 0.42-0.50 0.52-0.60 0.50-0.80
50 0.47-0.55
55 0.52-0.60
60 0.57-0.65
65 0.60-0.70
70 0.67-0.75
65Mn 0.62-0.70 0.90-1.20
72A 0.70-0.75 0.15-0.75 0.30-0.60
Table 2 Technical Parameters of Stainless Steel Wire
Grade Chemical Composition (%)
C Ni Mn Cr
304 ≤0.08 8.0-10.5 ≤2.0 18.0-20.0
321 ≤0.08 9.0-12.0 ≤2.0 17.0-19.0
316 ≤0.08 10.-14.0 ≤2.0 16.0-18.0
2205 ≤0.03 4.5-6.5 ≤2.0 21.0-23.0
2207 ≤0.03 6-8 ≤1.2 24.0-26.0
Square Wire Mesh
Powerscreen Woven Screen Mesh Vibrating Screen Sieves For Quarry Application

Square Wire Mesh
Great Vibrating Screen Mesh with Robust Construction

Square Wire Mesh is one of the most commonly used mining screens in mining, mineral processing, quarrying and aggregating industries. Typically, it is made of wires of the same diameter that are crimped to form precise square openings and achieve maximum rigidity. Its high tensile strength, excellent vibration resistance and long service life make it a perfect choice for obtaining accurate screening results and services at best price.

  • Both high carbon steel and stainless steel wires are available
  • Flat top screens, double crimp screens and lock crimp screens are available
  • Excellent wear resistance and long service life
  • Special discount for large orders and a wide range of promotion campaigns
Weaving Types-Powerscreen Woven Screen Mesh Vibrating Screen Sieves For Quarry Application
Specification-
Width: up to 2 m or upon request.
Length: 30 m or upon request.
Aperture (mm) Wire Diameter (mm) Weight (kg/m2) Open Area (%)
1.50 × 50.00 1.25 4.12 53
2.00 × 50.00 1.25 3.56 60
2.50 × 50.00 1.25 3.15 65
2.50 × 50.00 1.60 4.77 59
3.00 × 50.00 1.60 3.95 63
3.50 × 50.00 1.60 3.97 67
4.00 × 50.00 2.00 5.41 64
5.00 × 50.00 2.00 4.77 69
5.00× 60.00 2.50 6.81 64
6.00 × 50.00 2.00 4.29 72
6.00 × 60.00 2.80 7.50 65
7.00 × 60.00 3.15 8.45 65
8.00 x 60.00 3.15 7.85 68
9.00 x 60.00 3.15 7.33 70
10.00 x 60.00 3.15 6.89 72
10.00 x 60.00 4.00 10.55 67
12.00 x 60.00 3.15 6.17 75
12.00 x 60.00 4.00 9.50 70
Other mesh sizes and types are available upon request.
