1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Hook :
45 60 180
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane, rubber
Aperture :
0.6-160mm
Specification :
1.5*2M 2*2M 2*2.5M 2*3M
Standards :
EN 10270-1/SL, BS481 and ISO 4873
Tensile Stregth :
1000-1800Mpa
Usage :
vibrating screen
Wire Dia :
0.3mm - 16mm
Description
1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
Crimped Mesh is also known as wave woven screen. According different materials can also be called wire crimped mesh, galvanized crimped mesh, white steel crimped mesh, black steel crimped mesh, stainless steel crimped mesh, wire crimped mesh, copper-clad steel crimped mesh. The use of different gin mesh can also be a mine sieve gin mesh, piggin mesh, barbecue gin mesh, granary gin mesh, decorative gin mesh. According to the shape can also be called a knot crimped mesh, wrapped edge crimped mesh, crimped mesh. Ginning mesh is a square mesh product with a variety of uses, which is woven by the ginning machine and then through the new mesh machine to different materials and different specifications of metal wire.
Product Specifications
Name Crimped wire mesh
Material SS304 316L Galvanized steel; Iron; Q235;Mn steel
Wire diameter 0.2-20mm
Hole size 10-100mm
Max length 35m
Max width 4m
Surface coating Hot dip galvanized; Pvc coating; powder spray

Crimped wire mesh specifications list
Wire No. Wire diameter(mm) Mesh Hole diameter(mm) Weight(kg/sqm)
14 2.0 21 1 4.2
8 4.05 18 1 15
25 0.50 20 0.61 2.6
23 0.61 18 0.8 3.4
24 0.55 16 0.1 2.5
24 0.55 14 0.12 4
22 0.71 12 0.14 2.94
19 1 2.3 0.18 1.45
6 4.8 1.2 2 20
6 4.8 1 2 20
6 4.8 0.7 3 14
14 2.0 5.08 0.3 12
14 2.0 2.1 1 2.5
14 2.0 3.6 1.5 1.9

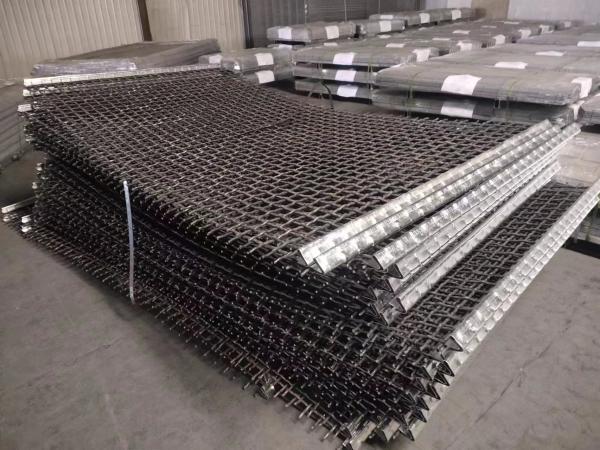

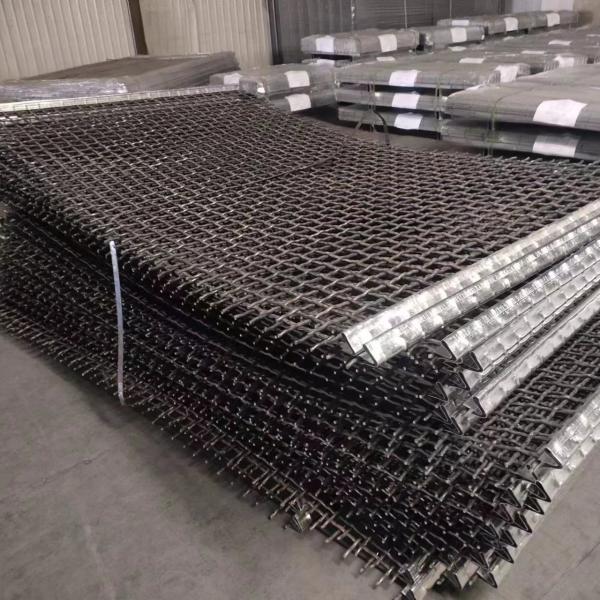

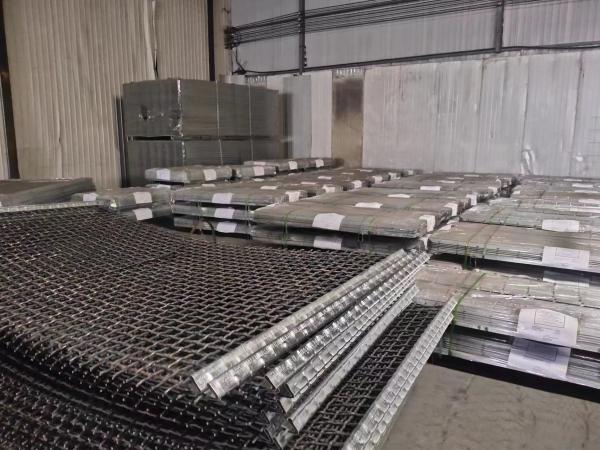

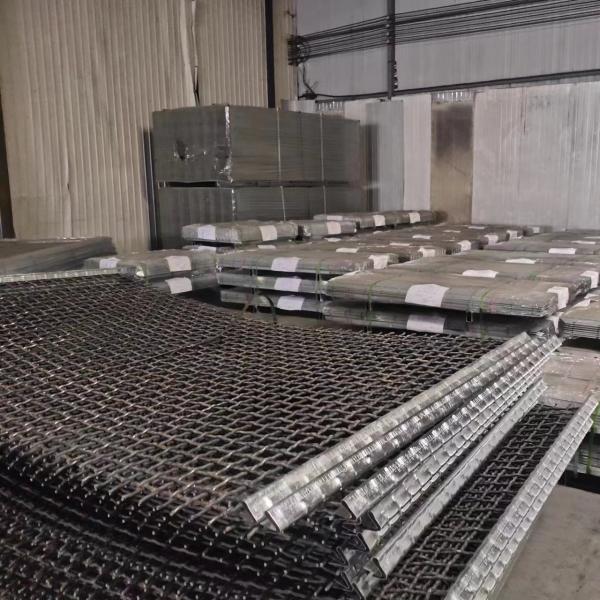

Detailed Photos

1.5X2m High Carbon Steel Square Hole Vibrating Screen Mesh
