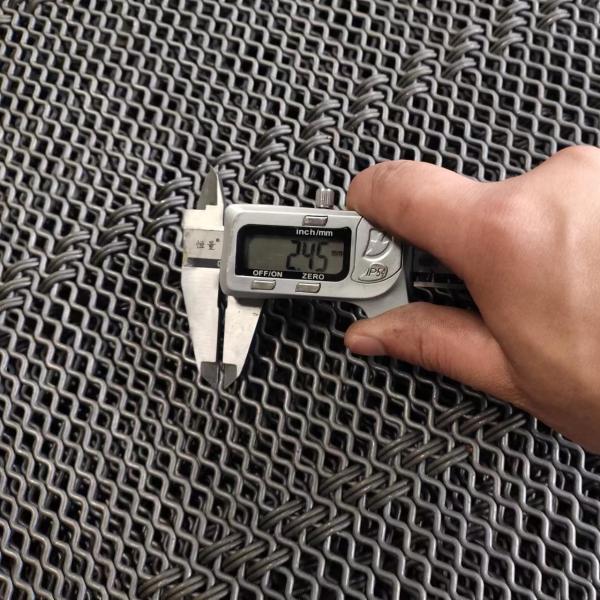

Mine Steel Crimped Wire Mesh 1mm 4.8mm 2.0mm Diameter Vibrating Screen
Mine Steel Crimped Wire Mesh 1mm 4.8mm 2.0mm Diameter Vibrating Screen
Mine Steel Crimped Wire Mesh 1mm 4.8mm 2.0mm Diameter Vibrating Screen
Mine Steel Crimped Wire Mesh 1mm 4.8mm 2.0mm Diameter Vibrating Screen
Specifications
Brand Name :
Qijie
Place of Origin :
China
MOQ :
10pcs
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
100pcs/week
Delivery Time :
15-18days
Packaging Details :
pallets
Color :
Black Self Color
Hook :
45 60 180
Mainly Material :
High and Middle Carbon Steel, SS 304,316
Material :
High tensile spring steel, manganese steel, stainless steel, polyurethane, rubber
Mesh Size :
Customized according to customer's requirements
Mesh Type :
Woven wire mesh, welded wire mesh, perforated metal mesh
Opening :
0.6-160mm
Specification :
1.5*2M 2*2M 2*2.5M 2*3M
Tensile Stregth :
1000-1800Mpa
Usage :
vibrating screen
Wire Dia :
0.3mm - 16mm
Wire Diameter :
0.5mm - 22mm
Description

Mine Crimped Wire Mesh China Wholesalers 1mm 4.8mm 2.0mm Diameter Steel Vibrating Screen Crimped Wire Mesh​

Manganese steel vibrating screen is high tensile, wear and abrasion resistant and long service life.

Manganese steel vibrating screen mesh has high quality ductility and toughness. When it is strong impacted and abrased, the surface will have a strong work-hardening due to the plastic deformation. And the surface hardness can be increased to more than HRC60 so that it can obtain the high wear resistance. While the interior remains high plasticity and toughness. When the old surface is worn and torn, the new surface will form a wear-resistant layer. The average life of manganese steel vibrating screens 4 to 8 times of ordinary screen.

Manganese steel vibrating screen mesh is widely used for screening all kinds size of sand, gravel, coal, stone, rock, metal material and other ore material in mining, quarry, aggregate industries.

Specifications

  • Material: High tensile manganese steel.
  • Wire diameter: 1.5mm - 14mm.
  • Opening size: 2mm - 110mm.
  • Hole type: Square mesh, rectangular mesh.
  • Weaving type: Double crimped, intermediate crimped, flat top crimped, lock crimped.
  • Surface treatment: Galvanized before weave and galvanized after weave, painted.
  • Edge preparation: Plain, bent, reinforced shroud, welded shroud, bolt shroud.
Product Name Vibrating Screen Mesh
Material 65Mn,45#,50#,55#,60#,70#,72A etc
Wire Diameter 0.8-12.7mm
Mesh Hole 2-100mm,tolerance +-3%
Certification SGS standard,ISO9001:2008
Angle 30 degrees, 45 degrees,60 degrees
Crimped Wire Mesh Shape v-shaped, u-shaped
Hook Type C or U hook for 30°-180°
Weaving Type Double crimped, intermediate crimped, flat top crimped, lock crimped
Mesh Type Square, rectangular slot, long slot.
Surface Type Anti rust oil painted
Edge Preparation Plain, bent, reinforced shroud, welded shroud, bolt shroud.

Application

Manganese steel vibrating screen mesh can be used as the screen deck in the stone crushers, vibrating screens, and trommel screens.

Manganese steel vibrating screen mesh is widely used for screening all kinds size of sand, gravel, coal, stone, rock, metal material and other ore material in mining, quarry, aggregate industries.

Mine Steel Crimped Wire Mesh 1mm 4.8mm 2.0mm Diameter Vibrating Screen

Mine Steel Crimped Wire Mesh 1mm 4.8mm 2.0mm Diameter Vibrating Screen
