Specifications
Brand Name :
ShuangYi
Model Number :
SHU-04M-022-N2R
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.06-0.09 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
2-piece stamped brass shell
Material :
Brass (C2680)
Plating :
Nickel ≥ 80u" (bright finish)
Surface Treatment :
Smooth, no scratches, dents, or deformation
Orientation :
180-degree straight type
Application Category :
Wire-to-PCB, power transmission, electronic equipment
Compliance :
RoHS, REACH
Withstand Voltage :
AC 500V/min
Description

Product Description

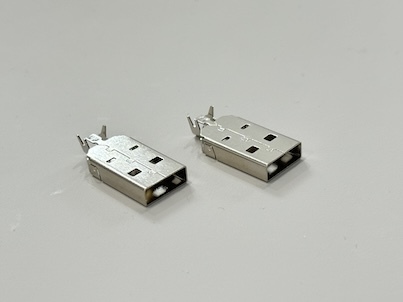

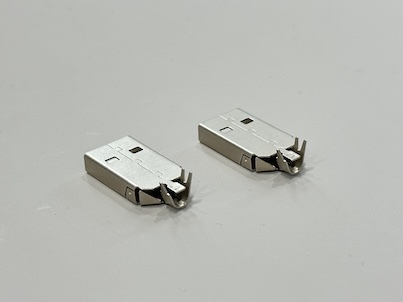

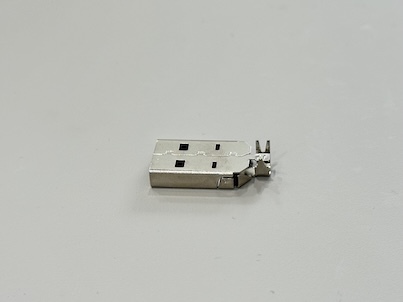

This USB 2.0 AM dual-piece connector features a precision-stamped brass shell (C2680) with a bright nickel plating of 80u" minimum, ensuring excellent corrosion resistance and long-term durability. It supports stable electrical signal transmission and is widely used in power supply cables, electronic devices, industrial equipment, and automotive interfaces. The connector is engineered with strict dimensional control, smooth surface finish, and enhanced mechanical strength, making it suitable for high-reliability assemblies and customized cable production.

USB 2.0 AM Dual-Piece Connector | Brass Shell, Ni Plated 80u”, Wire Cable Electrical Signal Connector for PCB, Power & Automotive ApplicationsUSB 2.0 AM Dual-Piece Connector | Brass Shell, Ni Plated 80u”, Wire Cable Electrical Signal Connector for PCB, Power & Automotive ApplicationsUSB 2.0 AM Dual-Piece Connector | Brass Shell, Ni Plated 80u”, Wire Cable Electrical Signal Connector for PCB, Power & Automotive Applications

Product Type USB 2.0 AM Dual-Piece Connector
Structure 2-piece stamped brass shell
Material Brass (C2680)
Plating Nickel ≥ 80u" (bright finish)
Length 24.7 mm
Outer Diameter Ø4.50 mm (reference)
Pin Count Standard USB Type-A male interface
Surface Quality No scratches, dents, or burrs ≤ 0.02 mm
Salt Spray Test ≥ 48 hours
Tolerance ±0.10 / ±0.20 (per drawing zones)
Compliance RoHS, REACH
Application Type Wire-to-PCB, power transmission, electronic equipment

Applications

Power supply cables and USB charging assemblies

PCB-mounted electronic devices

Automotive diagnostic equipment and in-vehicle electronics

Consumer electronics, home appliances, smart devices

Industrial controllers, servers, and data-transmission modules

Precautions

Ensure the connector length and shell dimensions match your cable and tooling requirements.

Avoid excessive mechanical impact during termination to maintain plating integrity.

Store in a dry environment to prevent moisture corrosion or oxidation.

Follow correct soldering and assembly guidelines to ensure stable electrical performance.

Verify compatibility with USB 2.0 standard during product design.
