Specifications
Brand Name :
ShuangYi
Model Number :
SHU-04F-002-N2R
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.07-0.11 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
Two-Piece Welded Cable Housing
Material :
SPCC Steel, ≥0.30 mm
Plating :
Nickel plating 80U" (corrosion-resistant)
Surface Treatment :
No burrs, scratches, dents
Orientation :
180-degree straight type
Application :
USB power/data cable assembly
Compliance :
RoHS compliant
Salt Spray Test :
12 hours minimum
Tolerance :
±0.10 mm / ±0.20 mm depending on dimension
Description

Product Description

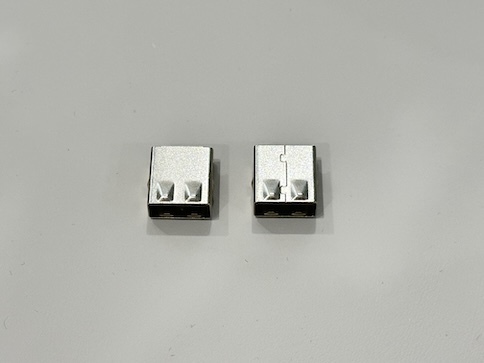

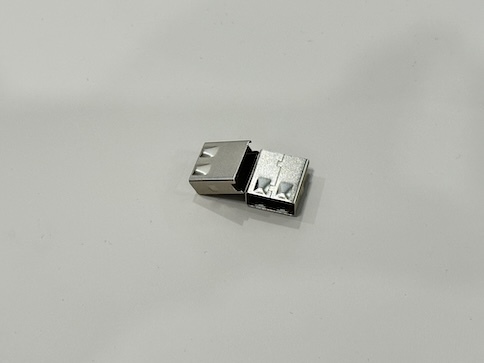

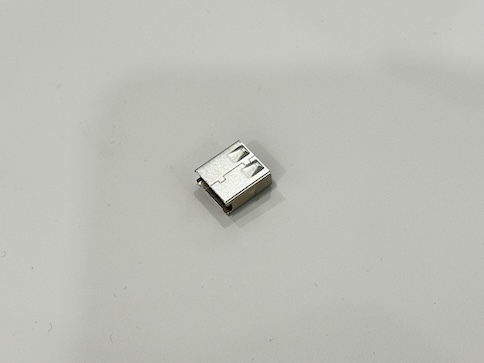

This USB A/F 180° Wiring-Type Protective Connector Shell is designed for durable USB cable assembly and high-reliability electronic applications. Made from high-strength SPCC steel with a thickness of ≥0.30 mm, it provides excellent structural integrity and long-lasting protection.

The housing features 80U" nickel plating, offering corrosion resistance, improved conductivity, and extended service life. The 180° straight structure is optimized for standard USB cable welding operations, ensuring stable electrical performance and solid mechanical connection.

Its precise forming process ensures a smooth surface without burrs, dents, or scratches—ideal for high-quality cable manufacturing, electronic products, and customized wiring harness production.

USB 2.0 AM Male Connector Three-Piece Front Shell Assembly | Pin Wire Cable Electrical Electronic Terminal Connector for Customization & Power TransmissionUSB 2.0 AM Male Connector Three-Piece Front Shell Assembly | Pin Wire Cable Electrical Electronic Terminal Connector for Customization & Power TransmissionUSB 2.0 AM Male Connector Three-Piece Front Shell Assembly | Pin Wire Cable Electrical Electronic Terminal Connector for Customization & Power Transmission

Parameter Specification
Product Type USB A Female 180° Wiring-Type Protective Shell Connector
Structure Two-Piece Welded Cable Housing
Material SPCC Steel, ≥0.30 mm
Plating Nickel plating 80U" (corrosion-resistant)
Surface Treatment No burrs, scratches, dents
Orientation 180-degree straight type
Application USB power/data cable assembly
Compliance RoHS compliant
Salt Spray Test 12 hours minimum
Tolerance ±0.10 mm / ±0.20 mm depending on dimension

Applications

USB data and charging cable assembly

Consumer electronics (smartphones, tablets, accessories)

Computer peripherals and communication devices

Industrial control equipment requiring reliable USB interfaces

Custom wire harness production and OEM/ODM cable projects

Precautions

Ensure the correct wire gauge and pin configuration before welding.

Avoid overheating during soldering to prevent deformation of the shell.

Keep the connector free from dust or moisture before assembly.

Follow RoHS-compliant manufacturing processes.

Store in a dry environment to prevent oxidation before use.

USB 2.0 AM Male Connector Three-Piece Front Shell Assembly | Pin Wire Cable Electrical Electronic Terminal Connector for Customization & Power Transmission

USB 2.0 AM Male Connector Three-Piece Front Shell Assembly | Pin Wire Cable Electrical Electronic Terminal Connector for Customization & Power Transmission

USB 2.0 AM Male Connector Three-Piece Front Shell Assembly | Pin Wire Cable Electrical Electronic Terminal Connector for Customization & Power Transmission

USB 2.0 AM Male Connector Three-Piece Front Shell Assembly | Pin Wire Cable Electrical Electronic Terminal Connector for Customization & Power Transmission

USB 2.0 AM Male Connector Three-Piece Front Shell Assembly | Pin Wire Cable Electrical Electronic Terminal Connector for Customization & Power Transmission

USB 2.0 AM Male Connector Three-Piece Front Shell Assembly | Pin Wire Cable Electrical Electronic Terminal Connector for Customization & Power Transmission
