Specifications
Brand Name :
ShuangYi
Model Number :
SHU-04M-06D-N2R
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.02-0.03 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
2-Piece stamped metal housing
Material :
SPCC Steel (Shell)
Plating :
Full-nickel plating ≥ 80u’’
Surface Treatment :
Nickel plated for corrosion resistance
Orientation :
180-degree straight type
Application Category :
Wire-to-cable electrical connector
Compliance :
RoHS 2.0 + REACH
Withstand Voltage :
AC 500V/min
Description

Product Description

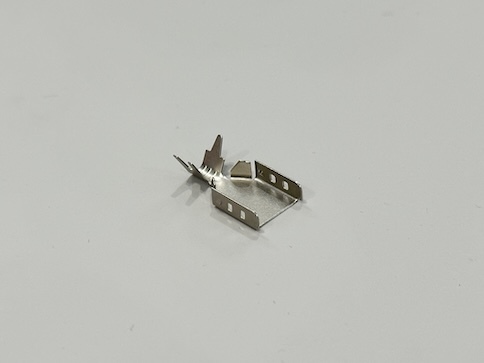

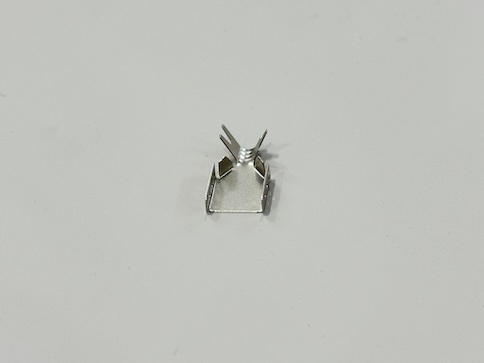

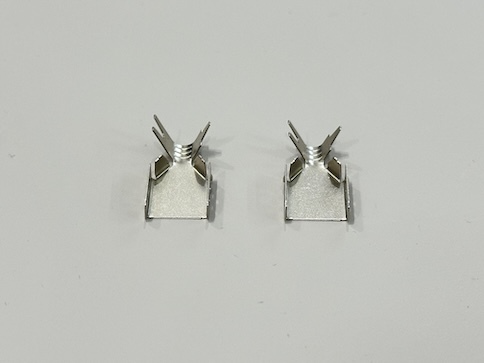

This USB 2.0 AM three-piece front shell connector is designed for OD3.8 mm cables and provides a durable wire-to-cable termination solution for consumer electronics and industrial equipment. The housing is made from SPCC metal with a copper-base nickel plating (80u" Min), ensuring strong corrosion resistance and long-term stability. Its structural strength and precise forming dimensions help maintain reliable transmission performance under frequent plugging and unplugging. Fully compliant with USB 2.0 specifications and RoHS environmental standards, this connector is ideal for customized cable assemblies requiring secure mechanical protection and stable signal performance.

USB 2.0 AM Connector Three-Piece Front Shell for OD3.8 Cable | Electrical Wire Terminal Plated HousingUSB 2.0 AM Connector Three-Piece Front Shell for OD3.8 Cable | Electrical Wire Terminal Plated HousingUSB 2.0 AM Connector Three-Piece Front Shell for OD3.8 Cable | Electrical Wire Terminal Plated Housing

Product Type USB 2.0 AM Three-Piece Front Shell Connector
Cable OD Support OD 3.8 mm
Structure Three-piece (front shell) design
Material SPCC Metal Shell
Surface Finish Nickel Plating ≥ 80u"
Inner Copper Layer Copper base plating 100u" Min
Shell Thickness T = 0.30 mm
Salt Spray Test ≥ 24 hours
Color Metal / Unplated + Nickel options
Connector Gender Male
Assembly Type Wire-to-Cable termination
Environmental Standard RoHS 2.0 compliant
Tolerance ±0.05 / ±0.10 / ±0.15 (per drawing)

Applications

Consumer electronics (chargers, power banks, adapters)

Data transmission cables and USB peripheral devices

Automotive diagnostic and in-car entertainment systems

Industrial control equipment requiring USB interfaces

Customized cable harness manufacturing

Computer and server accessories

Precautions

Ensure the cable OD matches the 3.8 mm specification for proper fit.

Use appropriate crimping and soldering tools to maintain stable electrical contact.

Avoid excessive mechanical stress during cable routing or assembly.

Keep components clean and dry before installation to prevent oxidation.

Follow USB 2.0 wiring standards to ensure correct signal transmission.
