Specifications
Brand Name :
ShuangYi
Model Number :
SHU-04M-012-N2H
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.01-0.02 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
Three-piece stamped metal housing
Material :
SPCC steel shell
Plating :
Nickel plating, 80 μ" Min (solderable Ni)
Surface Treatment :
Smooth, no scratches, dents, or deformation
Orientation :
180-degree straight type
Application Category :
Wire-to-cable electrical connector
Compliance :
RoHS 2.0 + REACH
Withstand Voltage :
AC 500V/min
Description

Product Description

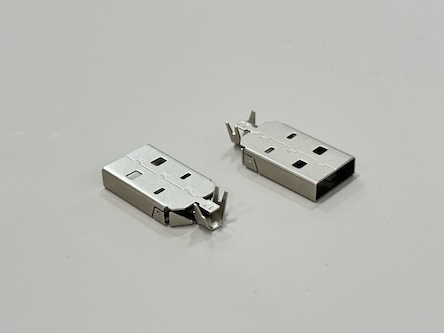

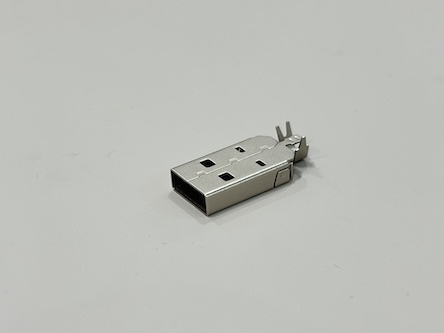

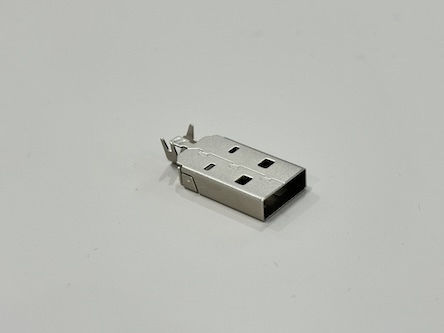

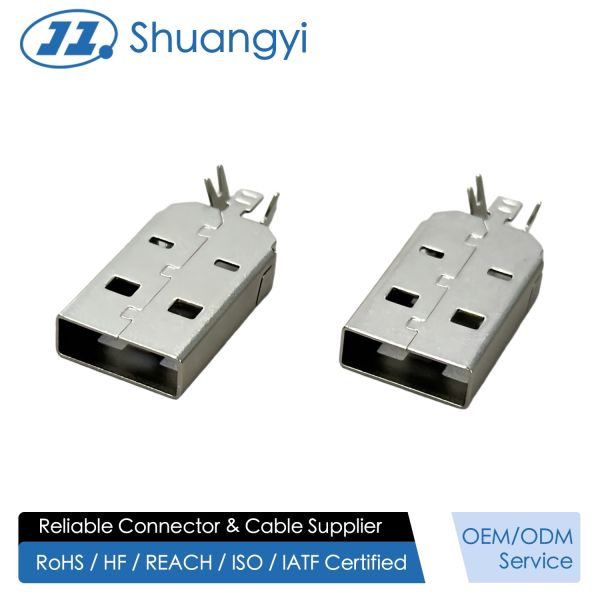

This USB 2.0 AM two-piece connector shell is designed for reliable electrical and electronic cable assemblies. Manufactured with high-strength SPCC steel and finished with durable nickel plating, it provides excellent corrosion resistance and stable signal transmission. The 24.7 mm housing supports secure cable termination, making it suitable for power supply, data transfer, and general electronic wiring applications. Its two-piece structure ensures easy assembly, strong mechanical retention, and consistent performance during long-term use.

USB 2.0 AM Connector Two-Piece Shell 24.7mm | Electrical Cable Terminal Assembly for Power & Data TransmissionUSB 2.0 AM Connector Two-Piece Shell 24.7mm | Electrical Cable Terminal Assembly for Power & Data TransmissionUSB 2.0 AM Connector Two-Piece Shell 24.7mm | Electrical Cable Terminal Assembly for Power & Data Transmission

Item Specification
Product Type USB 2.0 AM connector, two-piece metal shell
Overall Length 24.7 mm
Material SPCC steel
Surface Plating Nickel plating ≥ 80 μ" or per customization
Structure Two-piece snap-fit housing
Compatibility USB 2.0 high-speed transmission
Wire OD Range Compatible with standard USB cable assemblies
Insertion Style Cable end soldering / crimping compatible
Durability ≥ 1,500 mating cycles
Operating Temperature −20°C to +85°C
Compliance RoHS / REACH

Applications

Consumer electronics cable assemblies

Power and data transmission cables

USB extension cables and adapter cables

Automotive diagnostic devices

Industrial control equipment

Communication devices and peripheral accessories

Precautions

Confirm cable outer diameter and conductor size before assembly.

Ensure proper soldering or crimping to maintain stable signal performance.

Avoid excessive bending or pulling after assembly.

Store in a dry environment to prevent oxidation of metal surfaces.

Follow standard ESD handling procedures during production.
