Specifications
Brand Name :
ShuangYi
Model Number :
SHU-04M-023-N2H
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.01-0.02 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
Two-piece stamped iron shell (SPCC)
Material :
Brass (C2680)
Plating :
Copper ≥100 μ″ + Nickel ≥80 μ″
Surface Treatment :
Smooth, no scratches, dents, or deformation
Orientation :
180-degree straight type
Application Category :
Wire-to-PCB, power transmission, electronic equipment
Compliance :
RoHS, REACH
Withstand Voltage :
AC 500V/min
Description

Product Description

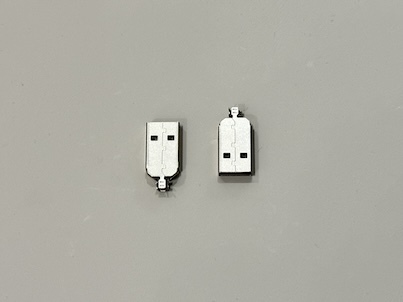

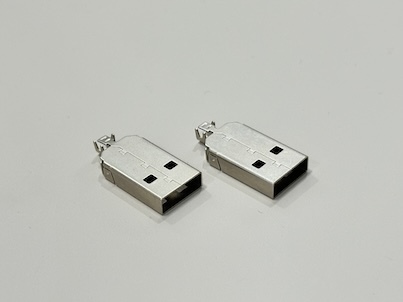

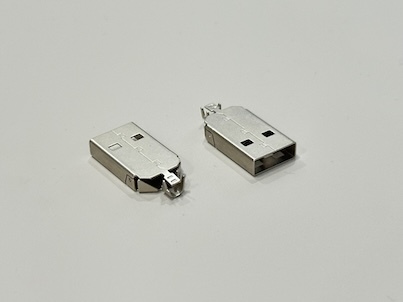

This USB 2.0 AM connector features a durable two-piece SPCC metal shell with a 24.7 mm length and support for 2.2 mm cable OD, making it ideal for molded USB cable assemblies. The shell is plated with 100 μ″ copper and 80 μ″ nickel to ensure excellent corrosion resistance, conductivity, and long-term stability. Designed for reliable electrical and signal transmission, it is widely used in computers, peripherals, chargers, consumer electronics, and custom wire-to-cable manufacturing.

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power TransmissionUSB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power TransmissionUSB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission

Product Type USB 2.0 AM 2-Piece Metal Shell Connector
Structure Two-piece stamped iron shell (SPCC)
Overall Length 24.7 mm
Cable OD Compatibility 2.2 mm
Material Thickness 0.35 mm (SPCC)
Plating Copper ≥100 μ″ + Nickel ≥80 μ″
Insulation / Fit Designed for molded USB cable assembly
Salt Spray Test 24 hours minimum
Application Data transmission & power supply cables
Compliance RoHS2.0 + REACH

Applications

USB data and power cable manufacturing

Consumer electronics and peripheral devices

Computer accessories and charging products

Automotive infotainment wiring

Custom PCB-to-wire cable assemblies

Precautions

Ensure cable OD matches the required 2.2 mm for proper molding and strain relief

Verify plating thickness requirements before mass production

Avoid deformation of the shell during assembly and crimping

Store in a dry, clean environment to maintain surface integrity
