Specifications
Brand Name :
ShuangYi
Model Number :
SHU-04M-011-N2H
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.01-0.02 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
Three-piece stamped metal housing
Material :
SPCC steel shell
Plating :
Nickel plating, 80 μ" Min (solderable Ni)
Surface Treatment :
Smooth, no scratches, dents, or deformation
Orientation :
180-degree straight type
Application Category :
Wire-to-cable electrical connector
Compliance :
RoHS 2.0 + REACH
Withstand Voltage :
AC 500V/min
Description

Product Description

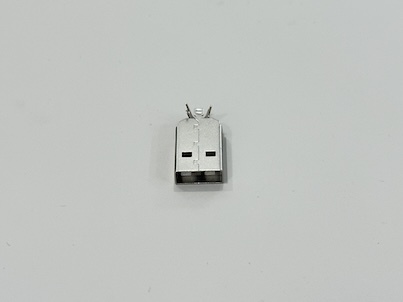

This USB 2.0 AM two-piece metal shell connector is designed for high-reliability wire-to-cable assemblies. The housing is stamped from 0.35-mm SPCC steel and enhanced with heavy copper and nickel plating to ensure excellent corrosion resistance, mechanical strength, and stable electrical transmission. The 24.7-mm standardized shell length supports precise cable soldering, secure strain relief, and consistent high-speed data and power delivery performance. It is suitable for mass-production cable manufacturers seeking durable, customizable, and stable USB male connector solutions.

USB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Pin Wire Cable Electrical Electronic Terminal Connector for Power Transmission & CustomizationUSB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Pin Wire Cable Electrical Electronic Terminal Connector for Power Transmission & CustomizationUSB 2.0 AM Connector Two-Piece Metal Shell 24.7mm | Pin Wire Cable Electrical Electronic Terminal Connector for Power Transmission & Customization

Item Specification
Product Type USB 2.0 AM Two-Piece Metal Shell
Structure Two-piece stamped shell, straight type
Length 24.7 mm
Material SPCC steel, 0.35 mm thickness
Plating Full copper ≥100 μ'' + full nickel ≥80 μ''
Color Metal (unplated / nickel-plated options)
Durability Designed for high-strength cable assembly
Salt Spray Test ≥8 hours
Compatibility Standard USB 2.0 male interface
Application Cable OD Suitable for 4.0–5.0 mm outer diameter (depending on final molding design)
Environmental Compliance RoHS 2.0 + REACH
Assembly Type Solder-type wire termination

Applications

Consumer electronics charging cables

Data transmission cables for computers and peripherals

Automotive electronics wiring and diagnostic tools

Industrial control USB interfaces

Power supply and signal transmission devices

Custom wire harness manufacturing for OEM/ODM

Precautions

Ensure cable OD and wire gauge match the connector structure before assembly.

Follow proper soldering temperature and process guidelines to prevent shell deformation.

Avoid exposing the connector to corrosive environments beyond the rated plating protection.

Use appropriate strain-relief and molding (if required) to maintain cable durability.

Store in a dry, dust-free environment to prevent oxidation before assembly.
