Specifications
Brand Name :
ShuangYi
Model Number :
SHU-04M-026-N2R
Certification :
ROHS, HF, ISO 9001, ISO 14001, IATF 16959
Place of Origin :
China
MOQ :
1000
Price :
$0.01-0.02 PCS FOB
Payment Terms :
T/T
Supply Ability :
500000 pcs per month
Delivery Time :
8-15 working days
Packaging Details :
Tape and Reel, 1500 per case, 10KG
Structure :
Two-piece stamped iron shell (SPCC)
Material :
Brass (C2680)
Plating :
Copper ≥100 μ″ + Nickel ≥80 μ″
Surface Treatment :
Smooth, no scratches, dents, or deformation
Orientation :
180-degree straight type
Application Category :
Wire-to-PCB, power transmission, electronic equipment
Compliance :
RoHS, REACH
Withstand Voltage :
AC 500V/min
Description

Product Description

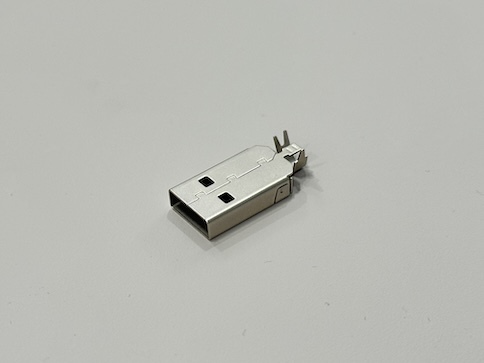

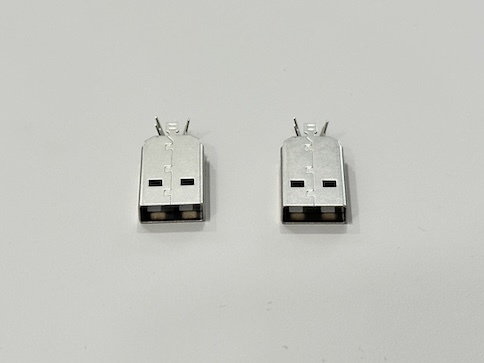

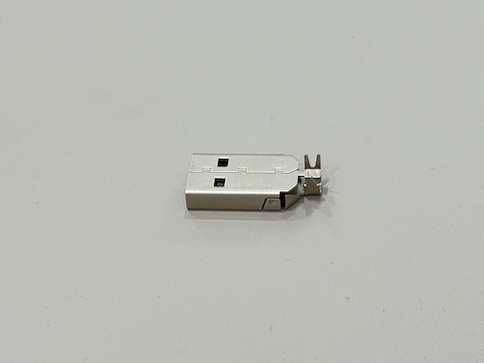

This USB 2.0 AM two-piece zinc-carved connector shell is designed for reliable wire-to-cable assembly and high-strength mechanical protection. Made from durable stainless steel or zinc alloy with ≥30u’’ nickel plating, the housing offers excellent corrosion resistance and stability during repeated insertions. The 24.7 mm compact form factor fits standard USB 2.0 cable assemblies and supports power transmission, data communication, electronic terminals, and customized harness manufacturing. The enhanced zinc-engraved structure ensures tight fit, precise cable retention, and improved durability in consumer electronics, automotive electronics, industrial controls, and computer peripheral applications.

USB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power TransmissionUSB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power TransmissionUSB 2.0 AM Connector Two-Piece Metal Shell | 24.7mm Length | 2.2mm Cable OD | Electrical Wire Terminal Connector for Data & Power Transmission

Product Type USB 2.0 AM 2-Piece Metal Shell
Structure Two-piece zinc-carved housing
Length 24.7 mm
Material Stainless steel / zinc alloy housing
Plating Full-nickel plating ≥ 30u''
Cable Compatibility Suitable for USB 2.0 cable assembly
Shell Thickness 0.35 mm (typical)
Salt Spray Test ≥ 48 hours
Application Type Wire-to-Cable Connector / Terminal Shell
Environment Compliance RoHS / REACH compliant
Assembly Style Crimping / soldering compatible

Applications

USB cable manufacturing and custom harness assembly

Consumer electronics such as chargers, adapters, and hubs

Automotive data/power wiring systems

Industrial controllers and machine interfaces

Computer peripherals and communication devices

Precautions

Ensure the cable OD and conductor size match the shell structure for proper crimping.

Avoid excessive force during assembly to prevent deformation of the metal housing.

Keep the connector dry and free from conductive debris before use.

Follow standard USB 2.0 assembly guidelines for best electrical performance.

Store in a clean, dry environment to maintain plating quality.
