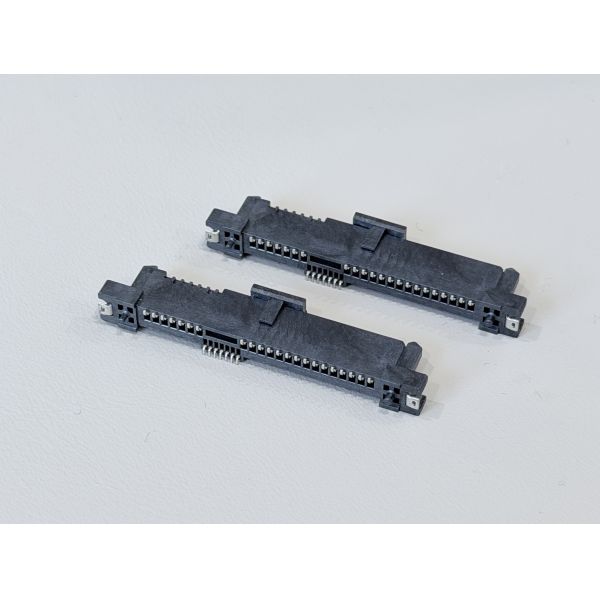

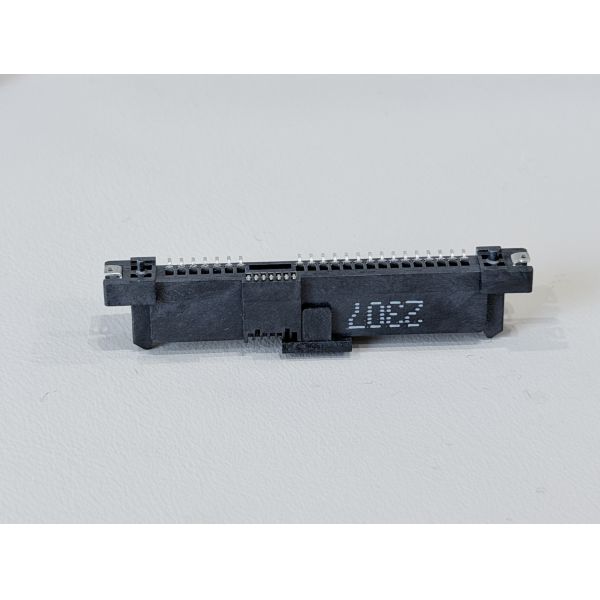

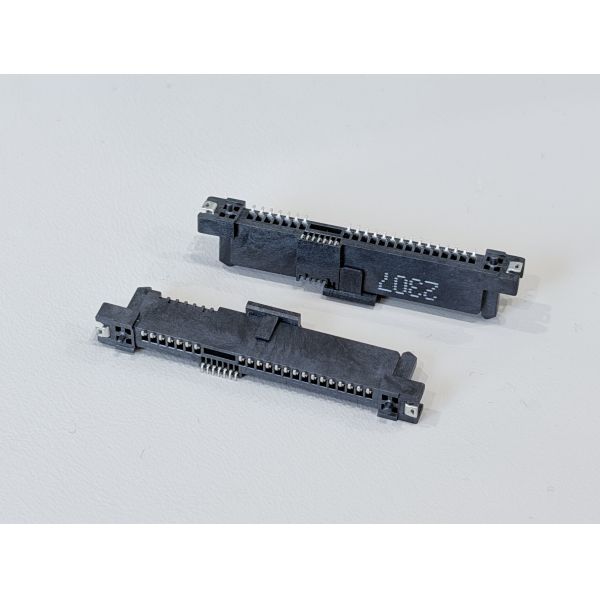

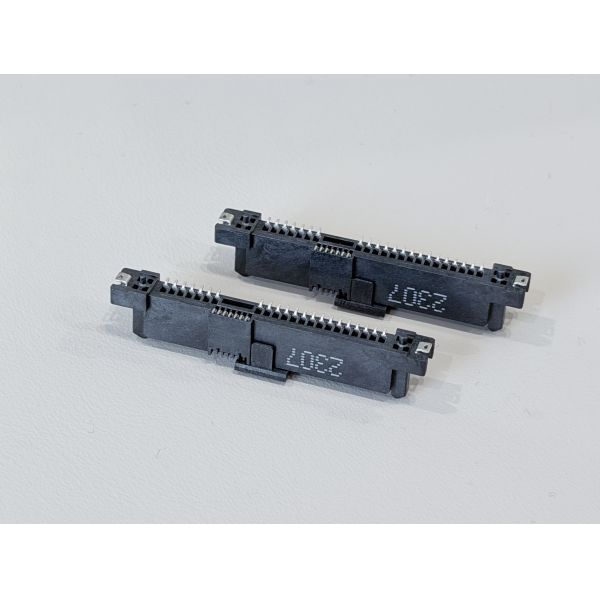

This SAS 29P SMT female connector is a high-reliability electronic connector designed for dense PCB layouts and high-speed SAS 4.0 signal transmission. With a 1.27mm pitch and full surface-mount design, it supports automated reflow soldering and compact routing in server, storage, automotive and industrial systems.

The contact system uses phosphor bronze C5191-H terminals with a robust three-layer plating structure: 50µ" nickel underplate for corrosion protection, 30µ" gold on the contact area to maintain low contact resistance for high-speed differential pairs, and 80µ" matte tin on the solder area for strong, reliable joints to PCB pads. A brass positioning peg and SUS304 metal clips provide extra mechanical retention, improving resistance to vibration and shock in demanding applications.

Electrically, the connector is rated at 1.5A @ 40VAC, with contact resistance ≤30mΩ, insulation resistance ≥1000MΩ, and a withstand voltage of 500VAC per minute. Mechanically, it offers controlled mating and unmating forces and up to 500 mating cycles on the backplane side according to EIA 364-09. A 48-hour salt-spray test on the gold area further verifies long-term reliability in harsh environments.

Using halogen-free, UL94-V0 LCP housing and fully RoHS 2.0 compliant materials, this SAS 29-pin SMT female connector is ideal for customized wire cable assemblies, high-density server backplanes, and other electrical power and signal transmission applications that require stable performance and long service life.

⚙️ Applications

• Server & Data Center Equipment – Used as SAS / SATA electronic signal and power connectors on HDD/SSD backplanes, RAID cards, JBOD/NAS and 1U/2U server boards.
• Communication & Networking Systems – For routers, switches, base stations and other networking equipment that need compact PCB connectors and reliable high-speed transmission.
• Industrial & Automation Electronics – Applied in industrial PCs, PLCs, motion controllers, data loggers and test instruments as PCB-to-wire or cable connectors.
• Automotive & New Energy Applications – Used in in-vehicle data recorders, infotainment units, EV chargers and energy-storage systems for signal and low-power transmission.
• Custom Wire Harness & Cable Assemblies – Suitable for OEM/ODM projects that require connector customization for PCB, wire and cable layouts in electrical and electronic devices.

⚠️ Notes

• Make sure the working voltage, current and temperature of your design stay within the connector’s rated values, with proper safety margin.
• Design PCB pads, holes and mechanical space according to the drawing and pitch, and avoid bending or twisting stress on the connector after soldering or assembly.
• Select appropriate wire gauge, insulation and cable structure based on current load, signal speed and bending requirements for both power and signal terminals.
• For IDC / crimp types, use matched tooling and press-force to ensure full insulation displacement; for solder types, follow a controlled soldering profile to avoid overheating the LCP housing.
• Insert and pull out the connector along the mating direction, avoid pulling on the cable itself, and do not exceed the specified mating/unmating force or durability cycles.
• Keep gold-plated contact areas clean and dry, avoid touching them with bare fingers, and store products in dry anti-static packaging before assembly.
