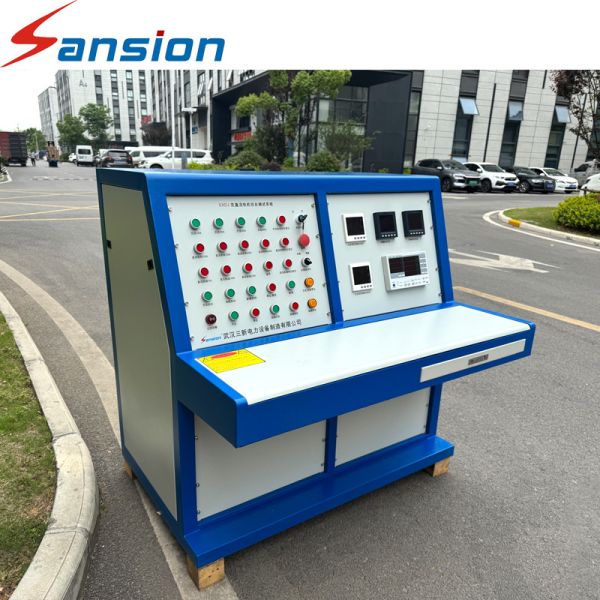

Portable Design Automated Motor Test System Comprehensive Motor Testing Solution
Portable Design Automated Motor Test System Comprehensive Motor Testing Solution
Portable Design Automated Motor Test System Comprehensive Motor Testing Solution
Portable Design Automated Motor Test System Comprehensive Motor Testing Solution
Portable Design Automated Motor Test System Comprehensive Motor Testing Solution
Portable Design Automated Motor Test System Comprehensive Motor Testing Solution
Specifications
MOQ :
1
Price :
US $1,000-50,000 /
Place of Origin :
Chnia
Brand Name :
Sansion
Certification :
CE SGS ISO9001
Packaging Details :
plywood case
Payment Terms :
TT LC
Model NO. :
SXDJ
Max Diameter of Workpiece :
2000mm
Mass Scope of Workpiece :
1000kg
Type :
Strength Testing Machine
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual/Auto at Customized
Weight :
500-1000Kg
Power Source :
AC380V
Oil Cylinder Position :
Under
Test Project1 :
Hv/LV Motor Turn to Turn Withstand Voltage Test
Test Project2 :
Hv/LV Motors Measurement of No-Load Loss
Test Project3 :
Hv/LV Motors Measurement of No-Load Current
Test Project4 :
Hv/LV Motors Cold Resistance Test
Test Project5 :
Three/Single Phase Voltage/ Average Voltage Test
Test Project6 :
Vibration Measurement
Test Project7 :
Temperature Measurement
Test Project8 :
Insulation Resistance Measurement
Test Project9 :
Power Frequency Withstand Voltage Test
Test Project10 :
Three/Single Phase Current/Average Current Test
Test Project11 :
Torque and Speed Measurement
Test Project12 :
Temperature Rise Test
Test Project13 :
Load Test
Test Project14 :
Blockage Test
Transport Package :
Plywood Case
Specification :
1000mm*600mm*560mm
Trademark :
Sansion
Origin :
China
HS Code :
9030339000
Production Capacity :
100 Units/Month
Description
Product Description
Automated Motor Comprehensive Test System Comprehensive Motor Testing Solution

General Information:
The SXDJ Motor Comprehensive Tester is applied for ex-work and after maintaining testing on AC motor, DC motor and variable frequency motor with which capacity of 0-10000kW and voltage degree 0-10kV.
The system is integrated with industry PC, power source system, controlling system, sensor, signal adjusting module, data sampling hardware & software, numerical computing software, graphical display & operation software, test report generating, waveform & measuring results storage and printing software.
Features:
1: Fully English interface, auto printing, easy to operate.
2: Motor AC hi-pot testing part is portable design designed, easy to move.
3: For HV motor of capacity 630kW-9000kW, voltage 6kV-10000V, it is needed to be equipped with 10kV booster, 10kV

Product Characteristics

1,the motor test bench to reliability, safety, economy, practicality, operability, maintainability as the design principle,while taking into account the advanced nature.
2,The measurement and control system of the testing equipment adopts industrial control computer +PLC control + digital display measuring instrument.
3,the test system all the bench, electric control cabinet, box surface spray treatment, all marks are clear and not easy to fall off.
4,All the equipment and installation materials in the testing equipment are new parts, and the measurement units of the parts and meters of the equipment and all the drawings and data adopt the international unit (SI) standard.

Product Parameter
Equipment power supply
Power supply voltage
460V
Frequency
60Hz
Phase number
3 Phase
Rated capacity
Not less than 500KVA
Test capacity
Serial number
Motor type
Rated voltage
Test frequency
No-load test
Remark
1
Low voltage three-phase asynchronous motor
230V-660V
Sine wave 50Hz, 60Hz
3kW-1250kW
The high-power motor adopts low-voltage test, and the motor rotates at full speed
2
High voltage three-phase asynchronous motor
3KV-13.2KV
Sine wave 50Hz, 60Hz
50kW-8000kW
3
DC motor
DC800V or less
DC
100kW-800kW

The main test parameters and accuracy of the test bench
Alternating current voltage
Low pressure measurement
10-700Vac
Precision
±0.2%FS
Alternating current
Low pressure measurement
1-1200A
Precision
±0.2%FS
High voltage measurement
1-500A
Precision
±0.2%FS
DC measurement
1-500A
Precision
±0.2%FS
DC resistance
0.005-2000Ω
Precision
±0.2%FS
Temperature
-20-200℃
Precision
±1℃
Frequency
45-65Hz
Precision
±0.1Hz
