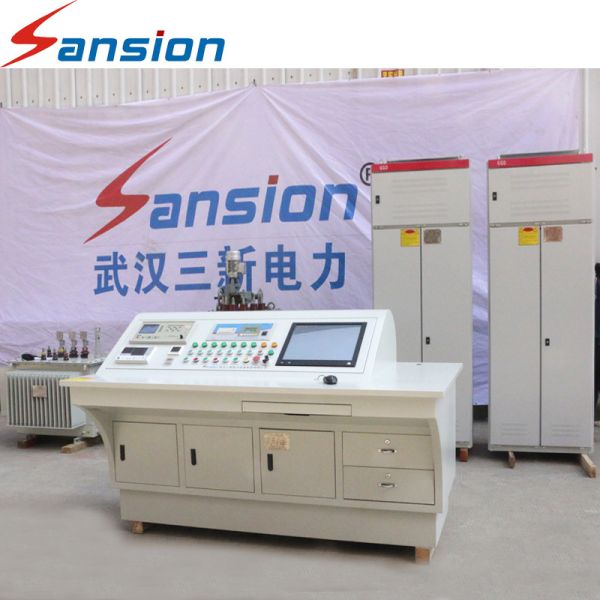

Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Specifications
MOQ :
1 Set
Price :
US $1,000-50,000 /
Place of Origin :
China
Brand Name :
Sansion
Certification :
CE/CNAS/ISO9001
Packaging Details :
Plywood Case
Payment Terms :
L/C T/T
Supply Ability :
100 Units/Month
Model NO. :
SXDJ
Max Diameter of Workpiece :
2000mm
Mass Scope of Workpiece :
1000kg
Type :
Strength Testing Machine
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual/Auto at Customized
Weight :
500-1000Kg
Power Source :
AC380V
Oil Cylinder Position :
Under
Test Project1 :
Hv/LV Motor Turn to Turn Withstand Voltage Test
Test Project2 :
Hv/LV Motors Measurement of No-Load Loss
Test Project3 :
Hv/LV Motors Measurement of No-Load Current
Test Project4 :
Hv/LV Motors Cold Resistance Test
Test Project5 :
Three/Single Phase Voltage/ Average Voltage Test
Test Project6 :
Vibration Measurement
Test Project7 :
Temperature Measurement
Test Project8 :
Insulation Resistance Measurement
Test Project9 :
Power Frequency Withstand Voltage Test
Test Project10 :
Three/Single Phase Current/Average Current Test
Test Project11 :
Torque and Speed Measurement
Test Project12 :
Temperature Rise Test
Test Project13 :
Load Test
Test Project14 :
Blockage Test
Transport Package :
Plywood Case
Specification :
1000mm*600mm*560mm
Trademark :
Sansion
Origin :
China
HS Code :
9030339000
Production Capacity :
100 Units/Month
Description
Product Description
Universal Motor Test Bench For Measurement of Three-phase/Single-phase Voltage and Average Voltage

General Information:
The SXDJ Universal Motor Test Bench is primarily used for in-line quality inspection and control of complete motors during factory production.
The system employs an industrial control computer for centralized management, enabling all test items to be completed with a single wiring setup.
Test results are automatically analyzed, evaluated,
statistically processed, stored, and printed. All user parameters can be pre-set for recall during testing.

Equipment Information
Test Items
DC resistance, thermal resistance, ambient temperature/humidity, withstand voltage current, insulation resistance, no-load test, back-EMF test
Display Method
21.5-inch monitor, equipped with 2U industrial host
Test Station
Single-station
Interface Fixtures
1. 15-20KV flexible high-voltage resistant cable
2. Yellow-green-red current clamps for main line connection, magnetic connectors for housing attachment
Test Sequence
Flexible configuration of measurement order, duration, and items
Alarm System
Audible/visual alerts with tri-color indicator lights
- Yellow: Test in progress
- Green: Test passed
- Red: Test failed
Data Storage Method
Test data saved locally on hard drive and transmitted in real-time to server for on-demand retrieval. Database uses MySQL 5.0+ format for efficient server queries. Data exportable to Excel format for management copying.
Report Output Method
Customizable non-standard formats
Protection Features
Fuses, circuit breakers, software protection, emergency stop button



Company Profile
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Certifications
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Packing & Delivery
Customized Integrated Motor Test System for Motor Durability and Endurance Testing
Customer Visit
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.

Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.

Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.

Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
