Customized Motor Comprehensive Test System English Interface For Generator Testing
Customized Motor Comprehensive Test System English Interface For Generator Testing
Customized Motor Comprehensive Test System English Interface For Generator Testing
Customized Motor Comprehensive Test System English Interface For Generator Testing
Customized Motor Comprehensive Test System English Interface For Generator Testing
Customized Motor Comprehensive Test System English Interface For Generator Testing
Specifications
MOQ :
1 Set
Price :
US $1,000-50,000 /
Place of Origin :
China
Brand Name :
Sansion
Certification :
CE/CNAS/ISO9001
Packaging Details :
Plywood Case
Payment Terms :
L/C T/T
Supply Ability :
100 Units/Month
Model NO. :
SXDJ
Max Diameter of Workpiece :
2000mm
Mass Scope of Workpiece :
1000kg
Type :
Strength Testing Machine
Maxcapacity :
<1000KN
Accuracy Grade :
0.5
Load Way :
Electronic Load
Loading Method :
Dynamic Load
Display :
Digital
Control :
Manual/Auto at Customized
Weight :
500-1000Kg
Power Source :
AC380V
Oil Cylinder Position :
Under
Test Project1 :
Hv/LV Motor Turn to Turn Withstand Voltage Test
Test Project2 :
Hv/LV Motors Measurement of No-Load Loss
Test Project3 :
Hv/LV Motors Measurement of No-Load Current
Test Project4 :
Hv/LV Motors Cold Resistance Test
Test Project5 :
Three/Single Phase Voltage/ Average Voltage Test
Test Project6 :
Vibration Measurement
Test Project7 :
Temperature Measurement
Test Project8 :
Insulation Resistance Measurement
Test Project9 :
Power Frequency Withstand Voltage Test
Test Project10 :
Three/Single Phase Current/Average Current Test
Test Project11 :
Torque and Speed Measurement
Test Project12 :
Temperature Rise Test
Test Project13 :
Load Test
Test Project14 :
Blockage Test
Transport Package :
Plywood Case
Specification :
1000mm*600mm*560mm
Trademark :
Sansion
Origin :
China
HS Code :
9030339000
Production Capacity :
100 Units/Month
Description
Product Description
Factory Customize Motor Comprehensive Test System For Generator Testing

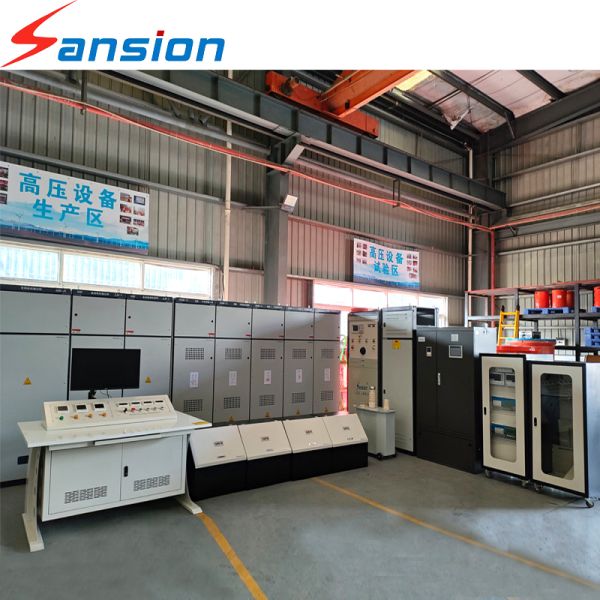

General Information:
The SXDJ Motor Comprehensive Tester is applied for ex-work and after maintaining testing on AC motor, DC motor and variable frequency motor with which capacity of 0-10000kW and voltage degree 0-10kV.
The system is integrated with industry PC, power source system, controlling system, sensor, signal adjusting module, data sampling hardware & software, numerical computing software, graphical display & operation software, test report generating, waveform & measuring results storage and printing software.
Features:
1: Fully English interface, auto printing, easy to operate.
2: Motor AC hi-pot testing part is portable design designed, easy to move.
3: For HV motor of capacity 630kW-9000kW, voltage 6kV-10000V, it is needed to be equipped with 10kV booster, 10kV HV CT/PT and etc.

Technical Specifications:

1. Core Testing & Measurement Capabilities

1.1 Electrical Insulation & Dielectric Tests

  • Insulation Resistance Test (IR Test)

  • Power Frequency Withstand Voltage Test (Hi-Pot Test) – for both high-voltage and low-voltage motors

  • Turn-to-Turn Impulse Withstand Voltage Test (Surge Test) – for both high-voltage and low-voltage motors

1.2 No-Load Performance Analysis

  • No-Load Loss Measurement (Iron Loss & Friction/Windage Loss)

  • No-Load Current Measurement (Three-Phase & Single-Phase)

  • No-Load Voltage-Current Characteristics

1.3 Electrical Parameter Measurement

  • Voltage: Three-phase / single-phase voltage (RMS, average, unbalance rate)

  • Current: Three-phase / single-phase current (RMS, average, unbalance rate)

  • Winding Resistance: DC resistance measurement (per phase, with temperature compensation)

  • Power & Efficiency: Input power, power factor, calculated no-load efficiency

1.4 Mechanical & Thermal Monitoring

  • Vibration Analysis: Vibration velocity/displacement measurement (can be extended with frequency spectrum analysis)

  • Temperature Measurement: Winding temperature (calculated or via sensor), bearing temperature, ambient temperature












System Features:

All-in-One Motor Test Solution (300kW, Multi-Voltage)

✅ Complete Test Suite: No-load (loss & imbalance), winding resistance, turn-to-turn, insulation, and power frequency withstand tests.

✅ Smart Data Handling: Real-time display, menu-driven parameter setting, and full printout capability.

✅ High-Precision Core: Advanced MCU, scientific algorithms, high-speed A/D conversion, and precision signal conditioning ensure reliable results.

✅ Flexible & User-Friendly: Operate via PLC or manually. Intuitive English interface with guided menus simplifies the entire testing process.

Company Profile
Customized Motor Comprehensive Test System English Interface For Generator Testing
Customized Motor Comprehensive Test System English Interface For Generator Testing
About Sansion
Sansion Power Electric was established in 2005, a technocrat who have rich experience of more than 20 years in R&D, manufacturing and marketing of power electrical testing products, which are widely used in the fields of power electric, railroad, energy conservation and environment protection, water conservancy, petrochemical industry, aerospace and etc.
Sansion Power Electric contains R&D department, instruments manufacturing workshop, HV workshop, sample exhibition room, HV testing laboratory, quality control department, general office, sales departments, information office and ete, now we have more than 80 employees including 20 technical engineers. We have obtained the IS09001 quality system certification and all products strictly conform to theinternational lEC and Chinese state standards.
Customized Motor Comprehensive Test System English Interface For Generator Testing
Certifications
Customized Motor Comprehensive Test System English Interface For Generator Testing
Customized Motor Comprehensive Test System English Interface For Generator Testing
Packing & Delivery
Customized Motor Comprehensive Test System English Interface For Generator Testing
Customer Visit
Customized Motor Comprehensive Test System English Interface For Generator Testing
FAQ
Q1: Is your company a sales company or a manufacturer?
A: Sansion Power Electric Co., Ltd. is an industrial and trade enterprise, with its own factory, self-produced and self-sold. We were founded in 2005 and have twenty years of production experience. Our company has reliable production lines, test rooms and R&D centers.

Q2: Whether the goods are in stock, whether they can be customized, and how long the delivery time is?
A: After the goods have been ordered, we can be made to order according to the special requirements of customers by using the latest technology. The delivery time is usually within 10 working days if there are no accidents.
Q3: Is the quality guaranteed?
A: In order to ensure quality, we use imported components in large quantities. After three times of quality inspection, the goods can be sent out, and the export is uniformly packed in non-fumigation wooden boxes.
Q4: What are the after-sales terms?
A: What are the after-sales terms?
We offer free consulting service, one year warranty, and adopt various methods such as email communication, video calls, technology door-to-door, aiming to solve any after-sales problems in a timely manner.
Q5: What are the cooperative countries or regions?
A: Products have been successfully exported to the United States, French ,Brazil, Australia, Spain, Portugal , Oman ,Russia, the Netherlands, Indonesia, Bangladesh, Saudi Arabia, Chile, Colombia, Panama, Malaysia and other countries and regions.
