Specifications
Brand Name :
RUYA
Model Number :
DT1000-A
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets，3 months
Delivery Time :
2-3 months
Packaging Details :
wooden box
Load Weight :
300KG
Table Diameter :
Ф1000mm
Table Flatness :
0.02mm
Table Runout :
0.02mm
Rotary Accuracy :
±3″
Rate Range :
±0.0001°/s~±1000°/s
Maximum Angular Acceleration :
≥100°/s²
User Slip Ring :
Customizable
Description
DT1000-A Big Single Axis Payload 300kg Electric Rate Positioning Turntables
Product Overview

The DT1000-A single-axis electric rate position turntable features a single-axis table-type mechanical shaft system structure. It is primarily designed for testing inertial components such as gyroscopes and accelerometers. This turntable offers multiple functions including position and speed control, and can automatically operate the turntable while collecting data.

Technical Specifications
Specification Value
Load Weight 300Kg
Table Diameter Ф1000mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±2″
Rate Range ±0.0001°/s~±1000°/s
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration ≥100°/s²
User Slip Ring Customizable

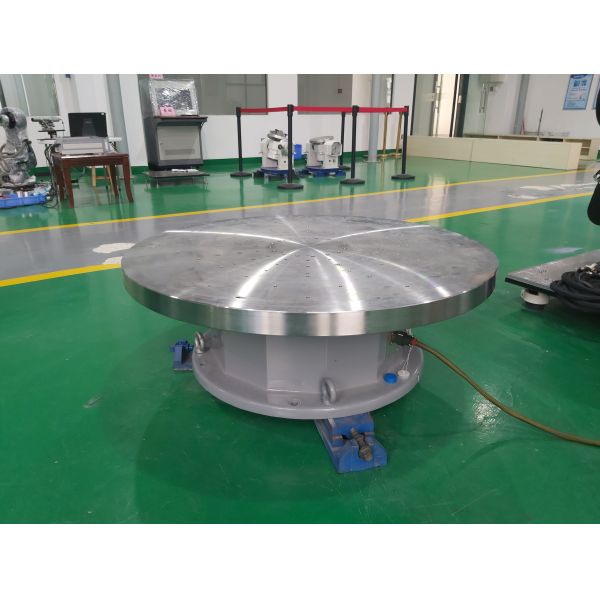

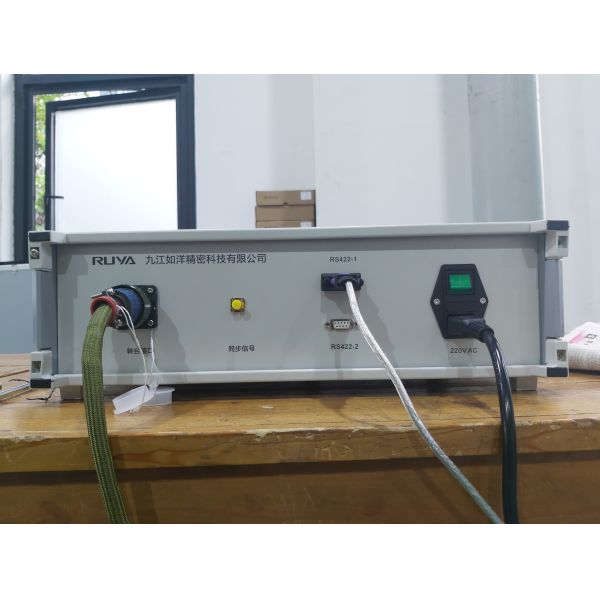

Product Images
