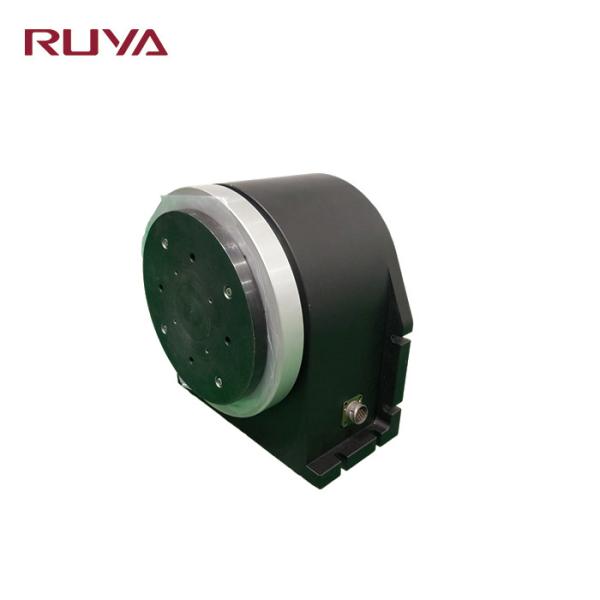

DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring
DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring
DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring
DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring
DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring
DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring
Specifications
Brand Name :
RUYA
Model Number :
DT200-B
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets，3 months
Delivery Time :
2-3 months
Packaging Details :
wooden box
Table Diameter :
Ф240mm
Table Flatness :
0.02mm
Table Runout :
0.02mm
Rotary Accuracy :
±3″
Positioning Error :
±5″
Positioning Repeatability :
±5″
Structure :
For both horizontal and vertical use
User Slip Ring :
Customizable
Description
DT200-B High Precision Payload 10kg Single Axis Inertial Test Turntable
Product Overview

The DT200-B high-precision single-axis test turntable is designed to provide exceptional rotary reference during testing operations. This system features high precision, stable construction, adaptability to various load requirements, and automatic centering capabilities.

Technical Specifications
Specification Value
Load Weight 10Kg
Table Diameter Ф240mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Axis ±3″
Positioning Error Of Angular Position ±5″
Positioning Repeatability Of Angular Position ±5″
Rate Range ±0.0001°/s~±200°/s
Rate Resolution 0.0001°/s
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration ≥100°/s²
Structure For both horizontal and vertical use
User Slip Ring Customizable
Product Images
DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring
DT200-B High Precision 10kg Payload Single Axis Inertial Test Turntable with Customizable Slip Ring
