DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing
DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing
DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing
DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing
DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing
DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing
Specifications
Brand Name :
RUYA
Model Number :
DT300-A
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets，3 months
Delivery Time :
2-3 months
Packaging Details :
wooden box
Load Weight :
30KG
Table Diameter :
Ф300mm
Rotary Accuracy :
±3″
Positioning Error :
±3″
Positioning Repeatability :
±2″
Rate Range :
±0.0001°/s~±1000°/s
Maximum Angular Acceleration :
≥300°/s²
User Slip Ring :
Customizable
Description

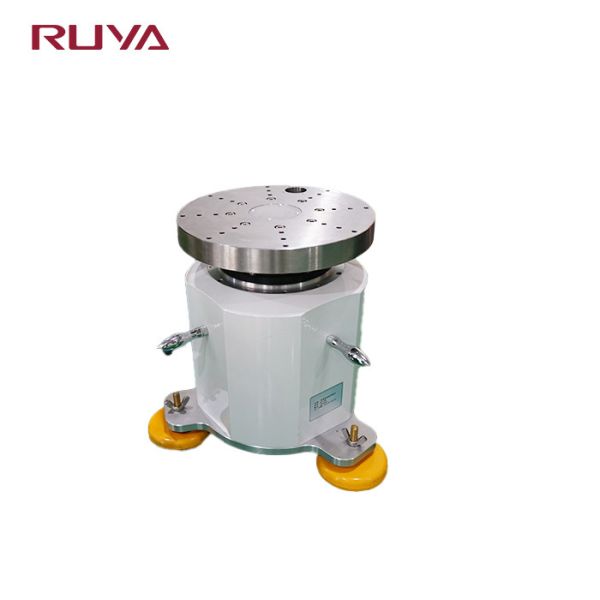

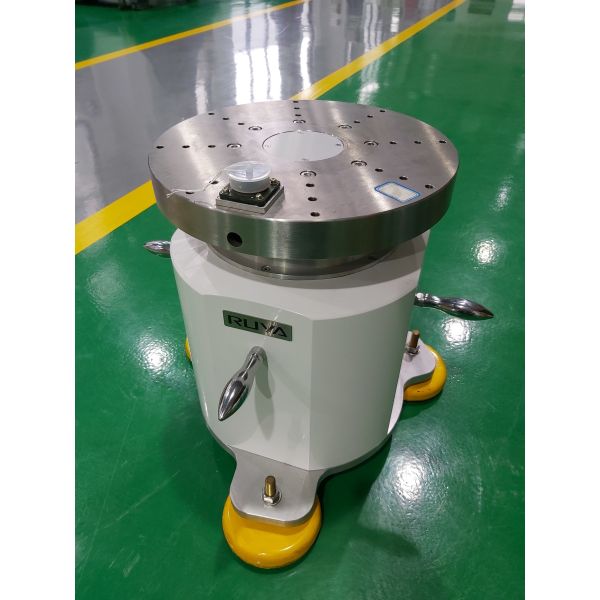

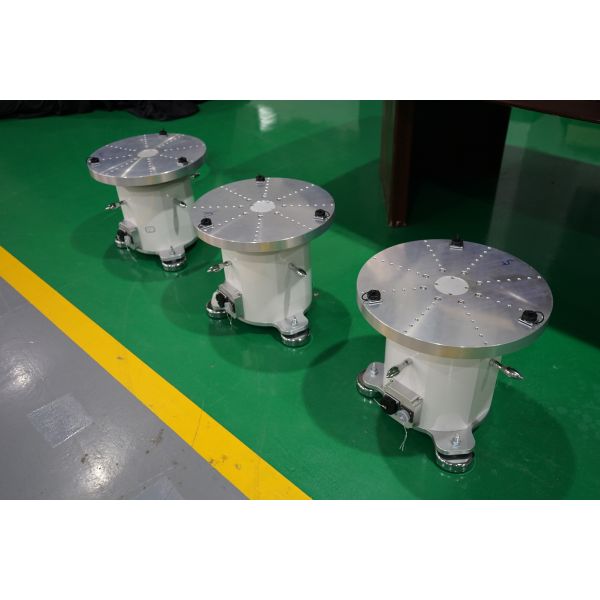

DT300-A Single Axis Electric Rate Position Test Turntable
Product Overview

This high-load single-axis electric rate position turntable is specially designed for testing heavy inertial components. It supports a load of 30kg and is suitable for a 300mm table. It meets the high-precision calibration needs of fiber optic gyroscopes, IMUs and various inertial devices.

The turntable features a compact structure and enhanced rigidity, balancing large load capacity with portability. It is suitable for laboratory, production line and field calibration scenarios. The standard intelligent control interface ensures easy operation with outstanding cost performance, making it an ideal solution for industrial-grade inertial testing.

Technical Specifications
Specification Value
Load Weight 30Kg
Table Diameter Ф300mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±2″
Rate Range ±0.0001°/s~±1000°/s
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration ≥300°/s²
User Slip Ring Customizable

DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing DT300-A Single Axis Electric Turntable with 30KG Load Weight Customizable User Slip Ring for Inertial Testing
