DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing
DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing
DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing
DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing
DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing
DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing
DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing
DT300-AS Single Axis Electric Turntable with 5kg Payload 0.02mm Flatness for Precision Testing
Specifications
Brand Name :
RUYA
Model Number :
DT300-AS
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets，3 months
Delivery Time :
2-3 months
Packaging Details :
wooden box
Load Weight :
5KG
Table Diameter :
Ф300mm
Rate Range :
±0.0001°/s~±500°/s
Maximum Angular Acceleration :
≥100°/s²
User Slip Ring :
Customizable
Table Flatness :
0.02mm
Table Runout :
0.02mm
Rate Resolution :
0.0001°/s
Description

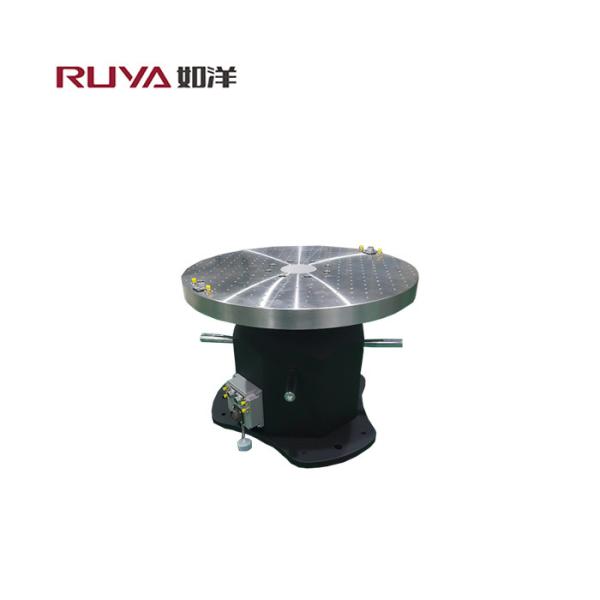

DT300-AS Small Payload 5kg Single Axis Electric Rate Position Test Turntable
Product Overview

Small electric turntables are designed for functional testing of precision components, including component velocity and position measurements.

Key Functions

Angular Position Function: Software sets target angular position, starting acceleration, and maximum speed to control turntable rotation to the target position.

Angular Rate Function: Software sets target rate and starting acceleration to control turntable operation at a constant rate.

Technical Specifications
Specification Value
Load Weight 5Kg
Table Diameter Ф300mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Axis ±3″
Positioning Error Of Angular Position ±3″
Positioning Repeatability Of Angular Position ±2″
Rate Range ±0.0001°/s~±500°/s
Rate Resolution 0.0001°/s
Rate Accuracy ω≤1°/s: 2*10⁻³ (1° average)
1°/s≤ω<10°/s: 2*10⁻⁴ (10° average)
ω≥10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration ≥100°/s²
User Slip Ring Customizable
