U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
U-T Structure 2DT350-A Small Dual Axis Electric Turntable with 20Kg Load Weight
Specifications
Brand Name :
RUYA
Model Number :
2DT350-A
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
20Kg
Table Diameter :
Ф350mm
Table Flatness :
0.02mm
Table Runout :
0.02mm
Intersection :
Ф0.5mm diameter ball
Positioning Repeatability :
±2″
User Slip Ring :
Customizable
Weight :
≤150Kg
Description

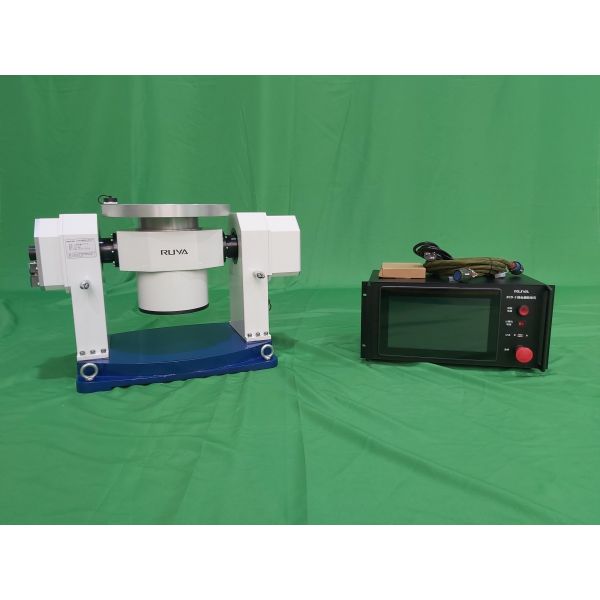

U-T Structure 2DT350-A Small Dual Axis Electric Turntable
Product Overview

The dual-axis turntable consists of a mechanical table body and a measurement and control system. Featuring a U-T structure and precision mechanical shaft system, it provides position, rate, and low-frequency sinusoidal swing motion capabilities. This system delivers accurate horizontal and position benchmarks for the load being measured, offering single-axis and dual-axis positioning and rate benchmarks for static testing and calibration of inertial systems.

The turntable supports multi-position measurement and rate detection functions for inertial guidance applications, with an inertial navigation attitude test accuracy of 0.06°.

Technical Specifications
Specification Details
Load Weight 20Kg
Table Diameter Ф350mm
Table Flatness 0.02mm
Table Runout 0.02mm
Rotary Accuracy Of Dual-Axis ±3″
Perpendicularity Of Dual-Axis ±3″
Intersection Of Dual-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position Outer frame: ±3″
Inner frame: ±3″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.01°/s~200°/s
Outer frame: 0.01°/s~100°/s
Rate Accuracy ω≤1°/s: 2×10⁻³ (1° average)
1°/s≤ω<10°/s: 2×10⁻⁴ (10° average)
ω≥10°/s: 2×10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥100°/s²
Outer frame: ≥80°/s²
User Slip Ring Customizable
Weight ≤150Kg
