Specifications
Brand Name :
RUYA
Model Number :
2DT495-C
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
≤3 sets， 3 months
Delivery Time :
3-4 months
Packaging Details :
wooden box
Load Weight :
20Kg
Maximum size of test piece :
220mm×220mm×280mm
Rotary Accuracy :
±3″
Perpendicularity :
±3″
Positioning Error :
±5″
Positioning Repeatability :
±2″
Maximum Angular Acceleration （inner frame） :
≥100°/s²
Maximum Angular Acceleration ( outer frame) :
≥50°/s²
Description

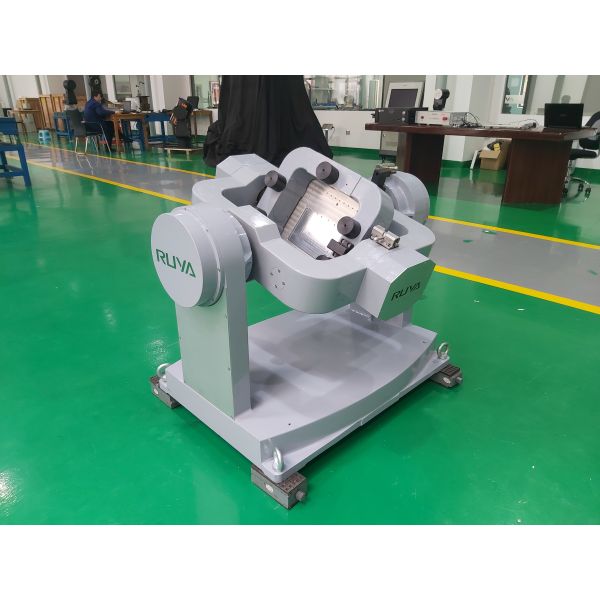

2DT495-C Dual Axis Automatic Frame Simulation Test Turntable
Product Overview

The 2DT495-C dual-axis rotating platform is a dual-axis automatic frame multi-functional simulation test equipment. It features test functions including position and speed measurement, designed to meet the functional testing and experimental requirements of inertial systems and inertial components. The system offers excellent dynamic characteristics with high-precision positioning capability, stable speed performance, and minimal waveform distortion.

Technical Specifications
Specification Details
Load Weight 20Kg
Maximum Size of Test Piece 220mm * 220mm * 280mm
Rotary Accuracy Of Dual-Axis ±3″
Perpendicularity Of Dual-Axis ±3″
Intersection Of Dual-Axis Ф0.5mm diameter ball
Positioning Error Of Angular Position ±5″
Positioning Repeatability Of Angular Position ±2″
Rate Range Inner frame: 0.01°/s ~ 200°/s
Outer frame: 0.01°/s ~ 200°/s
Rate Accuracy ω ≤ 1°/s: 2*10⁻³ (1° average)
1°/s ≤ ω < 10°/s: 2*10⁻⁴ (10° average)
ω ≥ 10°/s: 2*10⁻⁵ (360° average)
Maximum Angular Acceleration Inner frame: ≥100°/s²
Outer frame: ≥50°/s²
User Slip Ring Customizable
Product Images
2DT495-C Dual Axis Turntable with 20Kg Load Weight for Simulation Testing 2DT495-C Dual Axis Turntable with 20Kg Load Weight for Simulation Testing
