Portable CMM RA520 High Precision 3D Measuring Arm Articulated Arm Coordinate Measuring Machine
Portable CMM RA520 High Precision 3D Measuring Arm Articulated Arm Coordinate Measuring Machine
Portable CMM RA520 High Precision 3D Measuring Arm Articulated Arm Coordinate Measuring Machine
Portable CMM RA520 High Precision 3D Measuring Arm Articulated Arm Coordinate Measuring Machine
Portable CMM RA520 High Precision 3D Measuring Arm Articulated Arm Coordinate Measuring Machine
Portable CMM RA520 High Precision 3D Measuring Arm Articulated Arm Coordinate Measuring Machine
Specifications
Brand Name :
RUYA
Model Number :
RA520
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1-10 pieces，2 weeks
Delivery Time :
5-10 working days

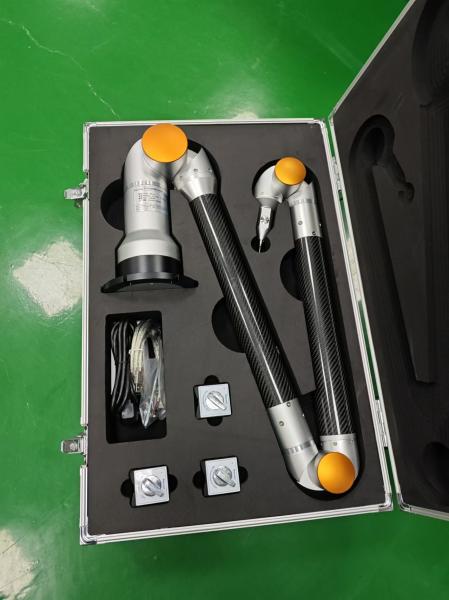

Packaging Details :
Flight case + Wooden box
Accuracy :
0.045mm
Repeatability :
0.032mm
Description

Portable CMM RA520 High Precision 3D Measuring Arm Articulated Arm Coordinate Measuring Machine


Product Description


Its main features are:

1. Absolute high-precision encoder is used to ensure the accuracy and stability of the instrument, and there is no need to find change when starting up;
2. Using military-quality conductive slip rings, all joints can rotate infinitely;
3 .Online is simple and convenient, just connect to the computer through a USB cable;
4. Wide working temperature range, can be used reliably in the ambient temperature of 10°C-40°C;
5. Aeronautical carbon fiber tube arm body, light weight and small deformation, meeting the measurement needs anytime and anywhere (weight only 7Kg);
6. The standard joints manufactured by mold opening make the working process highly stable;
7. It can be equipped with a battery module to complete on-site measurement without power supply to avoid data loss caused by sudden power failure;
8. A variety of mounting components and a full range of Renishaw probes are available for easy replacement;
9. With a variety of installation methods; tripod, magnetic base (magnetic suction cup) and U-shaped clips, etc., can realize rapid on-site measurement;


Geometric feature detection

1. Measure the geometric features on the workpiece. And through projection and intersection, existing geometric features are fitted to generate new features.

2. Quickly analyze spatial dimensions such as distances and angles between geometric features.

3. The coordinate system can be customized through points, lines, and surfaces, and linear dimensions can be marked.

GD&T geometric tolerance detection

The measurement software provides GD&T tools to evaluate the form and position tolerances of geometric features. For example, verticality, parallelism, flatness, cylindricity, coaxiality, inclination, position, etc.

Comparison between 3D model and actual object

The software is compatible with multiple 3D data formats and provides multiple coordinate alignment methods. It can automatically compare measured geometric features and surface point data with theoretical values on the three-dimensional model, and provide error analysis graphic reports.

Test report

Test reports in PDF, Excel, and mht formats can be quickly output.

The inspection report customization function is powerful, and the output report is convenient and fast, with pictures and texts.


Application fields: used in automobile production line, aerospace, shipbuilding, inspection fixture manufacturing, mold manufacturing, etc.


Product parameters


RA5 Series Specification
Model Spatial measurement range/m Space-length indication error/mm Uniaxial coordinate measurement consistency /mm
RA515 1.5m 0.035mm 0.025mm
RA520 2.0m 0.045mm 0.032mm
RA525 2.5m 0.060mm 0.035mm
RA530 3.0m 0.080mm 0.056mm
RA535 3.5m 0.100mm 0.071mm



Optional Accessories:
