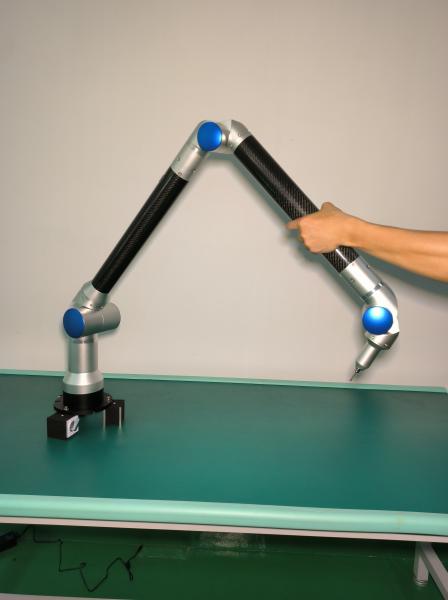

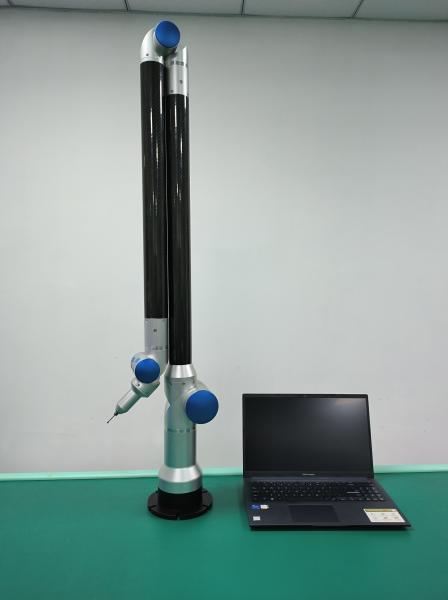

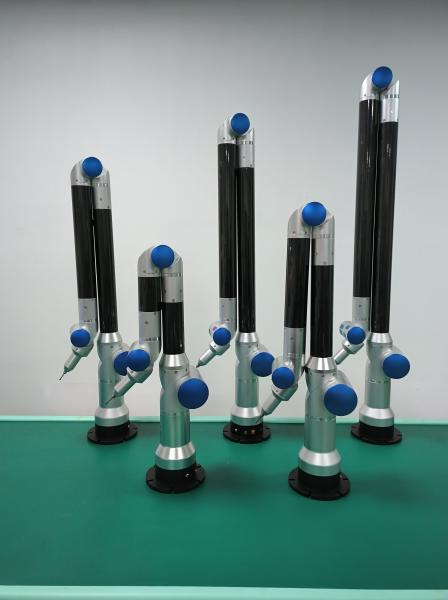

3D Measuring Arm RA330 Portable Coordinate Measuring Machine Portable CMM

Product Description

Portable CMM in automotive, oil & gas and heavy industries

Application: automotive industry, aviation and maritime, machinery manufacturing, reverse engineering and other fields.

Intelligent Multi-joint coordinate measuring machine (CMM) is a new technology intensive, affordable coordinate measuring device, which uses full-revolute open chain structure, and completely abandon the traditional coordinate measuring machine platform and rails, making the product weight and volume drastically reduced, prices will be significantly lower at the end, ease of use and environmental requirements for the use of greatly improved, lightweight simple and inexpensive. And out of the laboratory coordinate measuring machine can enter the shop and on-site, is a revolutionary scientific and technological achievements measurement technique.

Basic functions

Geometric feature detection

1. Measure the geometric features on the workpiece. And through projection and intersection, existing geometric features are fitted to generate new features.

2. Quickly analyze spatial dimensions such as distances and angles between geometric features.

3. The coordinate system can be customized through points, lines, and surfaces, and linear dimensions can be marked.

GD&T geometric tolerance detection

The measurement software provides GD&T tools to evaluate the form and position tolerances of geometric features. For example, verticality, parallelism, flatness, cylindricity, coaxiality, inclination, position, etc.

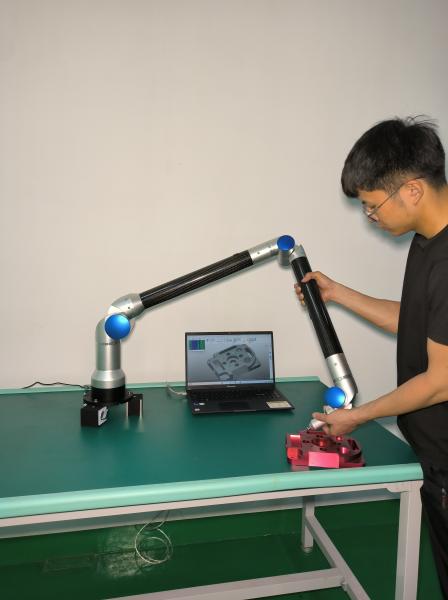

Comparison between 3D model and actual object

The software is compatible with multiple 3D data formats and provides multiple coordinate alignment methods. It can automatically compare measured geometric features and surface point data with theoretical values on the three-dimensional model, and provide error analysis graphic reports.

Test report

Test reports in PDF, Excel, and mht formats can be quickly output.

The inspection report customization function is powerful, and the output report is convenient and fast, with pictures and texts.

Application fields: used for auto parts, motorcycle frames, pipe fitting measurement, robotic arm measurement, sheet metal manufacturing, material rack factory, teaching demonstration, etc.

Product parameters

Optional Accessories:
