Specifications
Brand Name :
RUYA
Model Number :
RA315
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1-10 piece， 2 weeks
Delivery Time :
5-10 working days
Packaging Details :

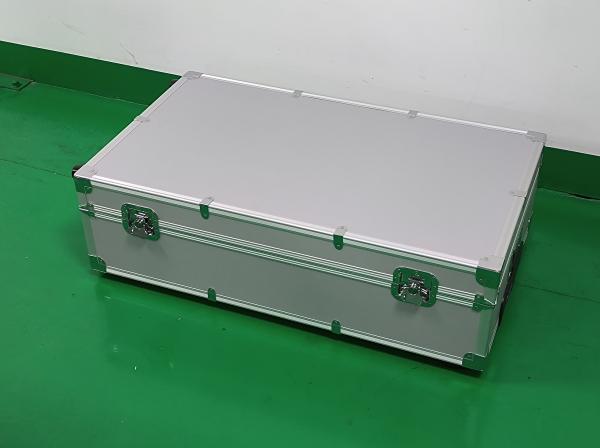

flight case+wooden box
Accuracy :
0.06mm
Repeatability :
0.03mm
Description
RUYA RA315 Portable Coordinate Measuring Machine Portable CMM 3D Measuring Arm
Product Overview

The RUYA RA315 Portable Coordinate Measuring Machine (CMM) is a universal coordinate measuring solution featuring Power INSPECT software. Designed for industrial measurement applications, it offers high precision with minimal environmental demands for temperature, humidity, and space. This flexible, lightweight system is simple to operate and ideal for factory workshops and on-site assembly measurements.

Core Functions
Geometric Feature Detection
  • Measure geometric features on workpieces and generate new features through projection and intersection fitting
  • Quickly analyze spatial dimensions including distances and angles between geometric features
  • Customize coordinate systems using points, lines, and surfaces with linear dimension marking capabilities
GD&T Geometric Tolerance Detection

The measurement software provides comprehensive GD&T tools for evaluating form and position tolerances of geometric features, including verticality, parallelism, flatness, cylindricity, coaxiality, inclination, and position.

3D Model to Actual Object Comparison

Compatible with multiple 3D data formats, the software offers various coordinate alignment methods. It automatically compares measured geometric features and surface point data with theoretical values from 3D models, providing detailed error analysis graphic reports.

Test Reporting

Generate comprehensive test reports in PDF, Excel, and MHT formats. The powerful inspection report customization function enables fast output of detailed reports with images and text.

Application Fields

Auto parts, motorcycle frames, pipe fitting measurement, robotic arm measurement, sheet metal manufacturing, material rack factory, teaching demonstration, and more.

Product Specifications

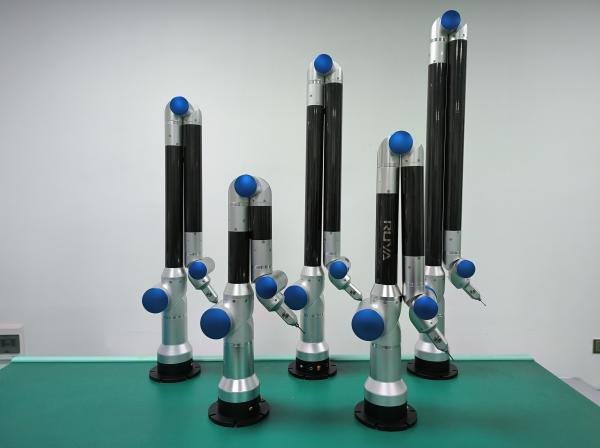

Model Spatial Measurement Range Space-length Indication Error Uniaxial Coordinate Measurement Consistency
RA315 1.5m 0.06mm 0.03mm
RA320 2.0m 0.08mm 0.04mm
RA325 2.5m 0.11mm 0.06mm
RA330 3.0m 0.14mm 0.08mm
RA335 3.5m 0.18mm 0.12mm
Optional Accessories
