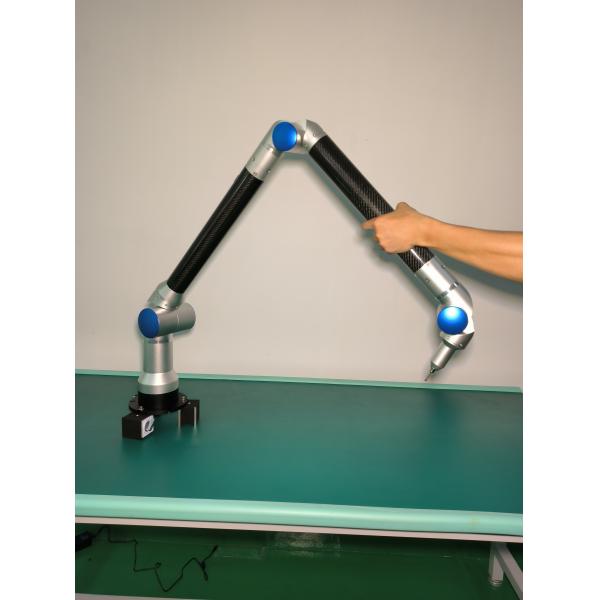

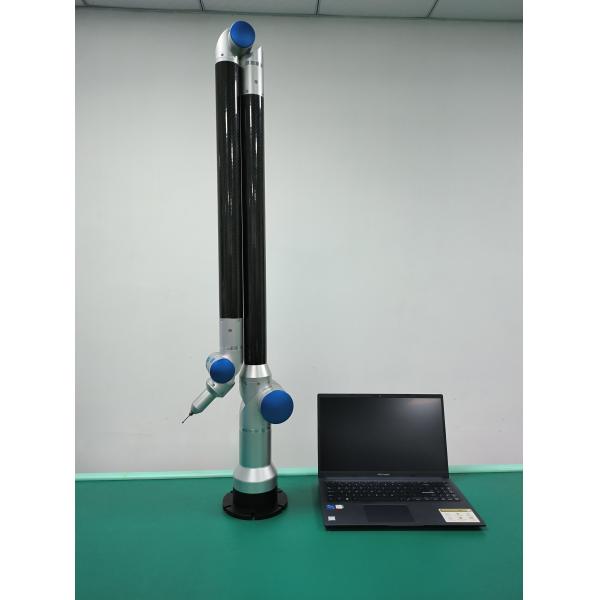

RA330 3D Measuring Arm Portable CMM with 3m Measurement Range
RA330 3D Measuring Arm Portable CMM with 3m Measurement Range
RA330 3D Measuring Arm Portable CMM with 3m Measurement Range
RA330 3D Measuring Arm Portable CMM with 3m Measurement Range
RA330 3D Measuring Arm Portable CMM with 3m Measurement Range
RA330 3D Measuring Arm Portable CMM with 3m Measurement Range
RA330 3D Measuring Arm Portable CMM with 3m Measurement Range
RA330 3D Measuring Arm Portable CMM with 3m Measurement Range
Specifications
Brand Name :
RUYA
Model Number :
RA330
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1-10 piece， 2 weeks
Delivery Time :
5-10 working days
Packaging Details :
flight case+wooden box
Accuracy :
0.14mm
Repeatability :
0.08mm
Description
3D Measuring Arm RA330 Portable Coordinate Measuring Machine Portable CMM
Product Overview

The RA330 Portable Coordinate Measuring Machine (CMM) is a revolutionary 3D measuring arm designed for automotive, oil & gas, and heavy industries. This intelligent multi-joint coordinate measuring system features a full-revolute open chain structure, eliminating traditional platforms and rails to provide exceptional portability and affordability.

Key Applications

Automotive industry, aviation and maritime sectors, machinery manufacturing, reverse engineering, auto parts measurement, motorcycle frames, pipe fitting measurement, robotic arm measurement, sheet metal manufacturing, material rack factory, and teaching demonstration.

Core Functions
Geometric Feature Detection
  • Measure geometric features on workpieces and generate new features through projection and intersection
  • Quickly analyze spatial dimensions including distances and angles between geometric features
  • Customize coordinate systems through points, lines, and surfaces with linear dimension marking
GD&T Geometric Tolerance Detection

Comprehensive GD&T tools for evaluating form and position tolerances including verticality, parallelism, flatness, cylindricity, coaxiality, inclination, and position.

3D Model Comparison

Compatible with multiple 3D data formats with various coordinate alignment methods. Automatically compares measured geometric features and surface point data with theoretical values, providing detailed error analysis graphic reports.

Test Reporting

Generate comprehensive test reports in PDF, Excel, and MHT formats. Powerful customization capabilities with convenient output featuring images and text.

Technical Specifications
Model Spatial Measurement Range Space-length Indication Error Uniaxial Coordinate Measurement Consistency
RA315 1.5m 0.06mm 0.03mm
RA320 2.0m 0.08mm 0.04mm
RA325 2.5m 0.11mm 0.06mm
RA330 3.0m 0.14mm 0.08mm
RA335 3.5m 0.18mm 0.12mm
Optional Accessories
