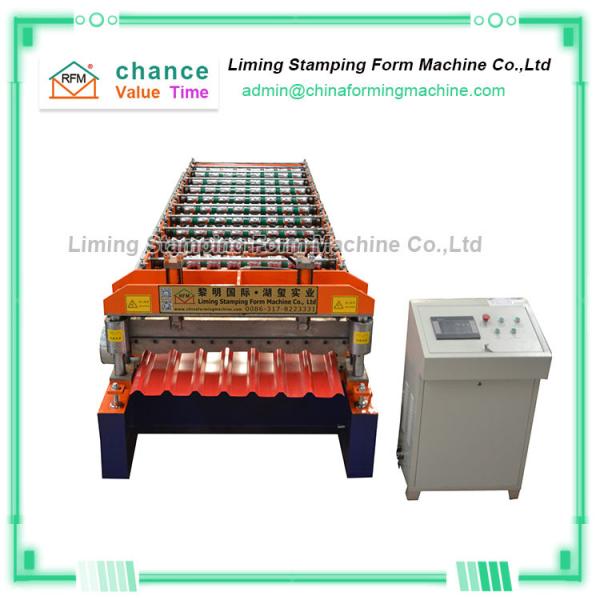

Aluzinc Roof Panel Roll Forming Machine 25m/min 23 Steps
Aluzinc Roof Panel Roll Forming Machine 25m/min 23 Steps
Specifications
Brand Name :
LIMING
Model Number :
LM-roofing sheet 75
Certification :
CE、ISO、BV
Place of Origin :
Hebei China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60set/Year
Delivery Time :
35 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
After-sales Service Provided: :
Engineers available to service machinery overseas
Machinery Test Report: :
Provided
Production Capacity: :
20-25m/min
Core Components: :
Pressure vessel, Bearing
Voltage: :
380V 50Hz 3phases
Hydraulic Motor Power: :
5.5KW
Feeding width: :
1220mm, 1200mm
Warranty: :
2 years
Rolling thinckness: :
0.2-1.0mm
Usage: :
Roofing forming mchine
Description

Aluzinc Roof Panel Making Roll Forming Machine

"Aluzinc roof panel making roll forming machine " is easy to operate and has complete functions. It adopts low-speed metering pump, frequency conversion speed regulation, computer control, and accurate measurement.

"Aluzinc roof panel making roll forming machine " adopts imported high-precision PLC programming controller.

The rollers of the "Aluzinc roof panel making roll forming machine "are processed by Japanese CNC high-precision machine tools to ensure the accuracy of each workpiece.

"Aluzinc roof panel making roll forming machine " adopts high-strength chain + sprocket drive, which improves the production speed.

Roller of "Aluzinc roof panel making roll forming machine ": The material of "Aluzinc roof panel making roll forming machine " is made of No. 45 steel and plated with hard chromium. The press roll molds are all vacuum high temperature quenching. The hardness is 58-62 degrees to ensure the wear resistance of the mold.

Main parameters of Aluzinc Roof Panel Making Roll Forming Machine

Product Name zinc metal steel roofing plate sheet making forming machine
Frame Structure Steel Plate Welded Manual
Roller Flatting System let the feeding fluently
Installation Dimension 11500mm*1500mm*1500mm
Machine Under Frame 400H-beam
Sidewall Plate Thickness 16mm
Roller Stations 23Steps
Shaft Diameter 70mm
Main Shaft Material 45# steel with finish turning ;
Roller Material 45# Forging Steel with Chromium Plate;
Chromium Plate Thickness 0.05mm
Motor Power 5.5kw
Reducer Type 8#Cycloidal Planetary Gear Speed Reducer
Chain Wheel and Cycle Chain 1 Inch
Roll forming Speed 15-20m/min (adjusted with frequency changer).
Frequency Converter Delta
Voltage 3phase/380V/50Hz (For confirmation )
Hydraulic Tank 1 set
Hydraulic Pump Station 3Kw
Cutting Length Tolerance 10m ±1mm;
Cutting Tool Material Cr12 with quenched treatment 58°C-62°C.
