Good Price Metal Roofing Sheet Roll Forming Machine
Good Price Metal Roofing Sheet Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-RS11
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
300set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
ondition :
New
Shafts diameter :
70mm
Material Strength :
PPGI&GI 0.3-0.8MM
Total Weight :
3-4T
Under frame :
350 H-beam
Use :
Roof and wall
Hydraulic Station Power :
3kw
Thickness :
0.3-0.8mm
Warranty :
24 months
Voltage :
380V 50Hz 3phases
Description

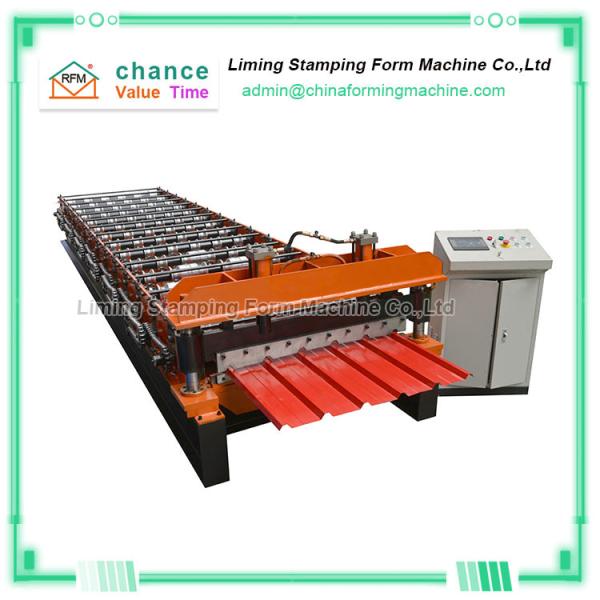

Good Price Metal Roofing Sheet Roll Forming Machine

Good price metal roofing sheet roll forming machine produces metal roofing panels. What we supply is not only one machine, it is the whole production line, including decoiler, mail roll forming machine, receiving table. Re to the decoiler, there are three type, manual type, electric type and hydraulic type. For the receiving table, there are manual type and automatic type.

There are three key points while we are manufacturing the good price metal roofing sheet roll forming machine one is the details while manufacturing good price metal roofing sheet roll forming machine. we always pay much more attention on processing details, even the screws and nuts are national standard with zinc plating, so that we can ensure the precise forming and durable quality.

Technical parameters of Good Price Metal Roofing Sheet Roll Forming Machine

ondition New
Use Roof and wall
Brand Name Chaoyi
Voltage 380V 50Hz 3phasesor according to your need
Warranty One year
Forming Steps 11-16, according to the drawing.
Type Tile Forming Machine
Production Capacity 0-15m/min
Model Number LIMING
Dimension(L*W*H) 7200mm*1300mm*1100mm
Main Frame 350# steel. More stable and no shaking
Middle Plate 16mm. We use thicker plates to ensure stability
of our products.
Dimater of shaft 70mm
Roller material High grade 45# steel. Hard chrome plating
Cutting type Hydraulic cutting type
Cutting blade Cr12
Tile Type Colored Steel
Power(W) 3KW
Weight 3-4t
Color As your request
Material thickness 0.2-0.8mm or As your request
Material width 1000mm or As your request
Transmission type Chain transmission+deceleration motor
Automation Full-automatic
Control system PLC
Place of Origin Hebei, China
After-sales Service Provided Engineers available to service machinery overseas

Good Price Metal Roofing Sheet Roll Forming Machine
