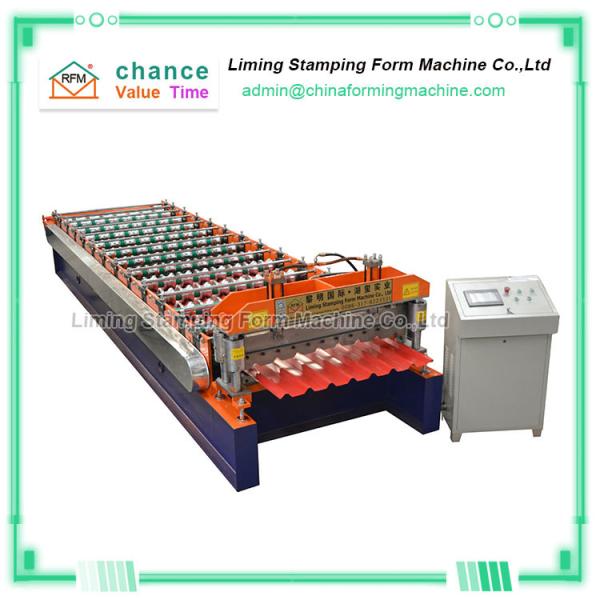

Trapezoidal Sheet Metal Roof Bending Roll Forming Machine
Trapezoidal Sheet Metal Roof Bending Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-RS10
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, L/C, D/A, D/P
Supply Ability :
300set/Year
Delivery Time :
45 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Material feeding width :
925~1220mm
Shafts diameter :
70mm
Material Strength :
PPGI&GI 0.3-0.8MM
Total Weight :
5ton
Under frame :
350 H-beam
Cutting accuracy :
±2mm
Hydraulic Station Power :
4kw
Thickness :
0.3-0.8mm
Warranty :
24 months
Voltage :
380V 50Hz 3phases
Description

Trapezoidal Sheet Metal Roof Bending Roll Forming Machine

Trapezoidal sheet metal roof bending roll forming machine features: the profile rolled by the Trapezoidal sheet metal roof bending roll forming machine is solemn and elegant, beautiful and novel, with a flat appearance, uniform corrugation, high strength, high production automation, low cost, and durability.

Advantages of trapezoidal sheet metal roof bending machine:

High strength: Using high-strength steel plate as the base material (tensile strength 5600KG/CM), plus the most advanced design and roll forming, it has excellent structural characteristics.

Fire protection: The surface material and heat preservation material of the color composite sandwich panel are non-combustible materials, which can fully meet the requirements of fire protection regulations.

Fast installation: The composite board is light in weight, spliced ​​installation and can be cut at will, which determines its ease of installation, which can greatly improve efficiency and save construction time.

Technical parameters of Trapezoidal Sheet Metal Roof Bending Roll Forming Machine

No Item Parameter
01 Material feeding width 925~1220mm
02 Material thickness 0.3~1.0mm
03 Uncoiler Manual Uncoiler
04 Loading weight 5ton
05 Forming speed 8-15m/min
06 Forming Steps 16stations
07 Shafts materials 45# high quality steel
08 Shafts diameter 70mm
09 Roller materials 45# high quality steel, hard chrome coated 0.05mm
10 Transmission Chains-sprockets
11 Main motor power 11kw
12 Cutting blade Cr12 with quenched treatment 60-62
13 Hydraulic power 5.5kw
14 This machine will automatically measure and cut the length and quantity as per clients set on the PLC touch screen
15 Length cut Accuracy ±1mm
16 PLC control system Omron Japan
17 Frequency converter TAIAN
18 Screen TouchWin
19 Voltage 380V/50HZ/3Phase
20 Total weight Approx 6.2t
21 Overall dimensions 8600x1500x1300mm

Trapezoidal Sheet Metal Roof Bending Roll Forming Machine
