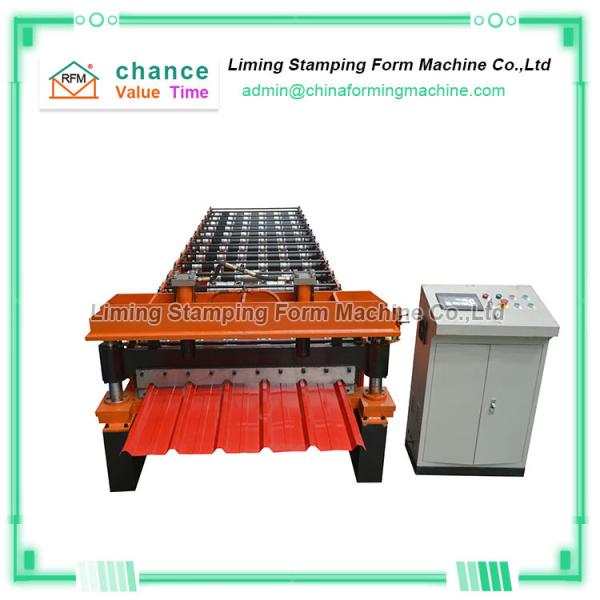

New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine
New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-roofing sheet 85
Certification :
CE、ISO、BV
Place of Origin :
Hebei China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60set/Year
Delivery Time :
35 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Chain: :
1 inch single row
Raw Material: :
PPGI/Galvanized Sheet
Production Capacity: :
10-15m/min
Suitable Material: :
Q235 or similar
Voltage: :
440v 50Hz 3Ph
Key Selling Points: :
Easy to Operate
Roller rows: :
13rows
Warranty: :
2 years
Rolling thinckness: :
0.3-1mm
Hydraulic station motor power(KW):: :
5.5kw
Description

New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine

"New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" has high wave crest and high strength, safe and reliable overlap installation, strong waterproof and typhoon resistance, and good advantages with conventional solutions. The roof leakage problem of the series of special-shaped panels can be used with the arching machine to produce a beamless arched roof.

"New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" adopts a directional four-row high-speed boutique structure

"New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" host "pressure cylinder and main tile model" is bound to four 120 mm solid guide hydraulic supports by "guide sleeves", while "main tile "Mould" is up and down. Vertical operation, no vertical deviation, especially for the brittleness of the main tile mold, play an absolute protective role, and also greatly extend the service life of the "main tile mold".

"New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" adopts 95mm high quality thick shaft, which is strong and durable.

The main body of the "New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine" is non-welded and all made of "cast steel". The whole machine will not deform the main body due to welding "stress".

Main parameters of New Design 1 Year Warranty Custom Design Roofing Sheet Roll Forming Machine

Main Forming machine Forming steps 14 steps
Shaft diameter 80mm
Machine stand Middle Connecting Plate
Machine frame 350mm H Steel welded
roller material 45#
shaft material 45# steel with quenching and tempering
Work speed standard: 10---15m/min
Transport By Chain
Power of main machine 4kw
Voltage 380V-50HZ-3P(as required)
Machine dimension 8.5*1.65*1.5m
Machine weight About5.5T
Machine color Yellow and blue(as required)
Usage: In order to keep the product shape and precision, adopts welded sheet structure,
motor reducer drive, chain transmission,roller was chromed which can keep the
molding plate surface smooth and not easy to be marked when it is working
Feature : Ensure stability , precision and lifetime.
