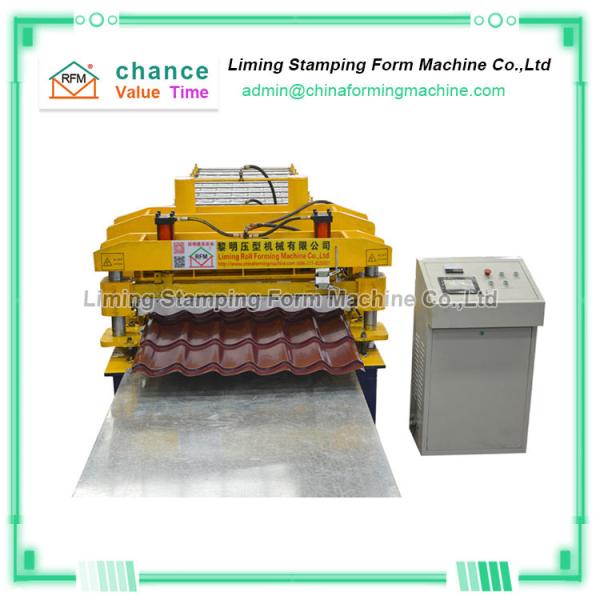

L7500mm Cold Roll Forming Machine , Corrugated Tile Maker Machine
L7500mm Cold Roll Forming Machine , Corrugated Tile Maker Machine
Specifications
Brand Name :
LIMING
Model Number :
LM-roofing sheet 100
Certification :
CE、ISO、BV
Place of Origin :
Hebei China
MOQ :
1
Price :
Negotiation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
60set/Year
Delivery Time :
35 work days
Packaging Details :
Nude、Anti-dust film, Anti-rust cloth
Type: :
Tile Forming Machine, Tr4 Tr5 Corrugated Metal roofing sheet making machine
Shaft material: :
High Grade No.45 Forged
Production Capacity: :
8-15m/minute
Rolling thinckness: :
0.3-0.8mm
Roller material: :
45# Forged Steel with hard chrom
Voltage: :
380v(depend on design)
Warranty: :
24 Months
Diameters of roller: :
70mm~90mm
Feeding width: :
1250mm
Dimension(L*W*H): :
7500mm*1.55mm*1.3mm
Description

Top Quality Steel Metal Roofing Glazed Corrugated Tile Roofing Sheet Cold Roll Forming Making Machine

"Top Quality Steel Metal Roofing Glazed Corrugated Tile Roofing Sheet Cold Roll Forming Making Machine" can be installed and fixed in two ways: penetration and concealment.

Penetration fixing is the roof and wall "Top Quality Steel Metal Roofing Glazed Corrugated Tile Roofing Sheet Cold Roll Forming Making Machine" The common installation method is to use self-tapping screws or rivets to fix the color plate on the bracket. Penetration fixation is divided into crest fixation, trough fixation or their combination.

The manufacturer of "Top Quality Steel Metal Roofing Glazed Corrugated Tile Roofing Sheet Cold Roll Forming Making Machine" has a very simple and cost-effective method, that is, before installing the roof steel sheet, spread double-sided reflective foil film on the strip or slat, this method is the same of. It can also be used as a moisture barrier to reduce condensation.

In addition, in addition to the screws used to fix the concealed buckle, other screws are also equipped with waterproof washers, and are equipped with corresponding washers for lighting panels and special wind pressure. Currently available screws can have plastic heads, stainless steel top caps or coated with a special durable protective layer.

In addition, in addition to the screws used to fix the concealed buckle, other screws are also equipped with waterproof washers, and are equipped with corresponding washers for lighting panels and special wind pressure.

If the sagging depth of the membrane between the supports is allowed to reach 50~75mm, the air layer between the membrane and the roof panel will further improve the thermal insulation effect. Concealed buckle concealed fixation is to first fix a special concealed buckle matching the dark color board on the bracket. The concave rib of the color plate has a hidden central rib. Usually used for the installation of roof panels.

Main parameters of Top Quality Steel Metal Roofing Glazed Corrugated Tile Roofing Sheet Cold Roll Forming Making Machine

NoItemDescription
1CoilWidth:1250mm
2Forming speed8-15 m/min&1-4m/min (not including cutting time)
3Roller Stations15&16stations
4Material of Roller45# steel finish machining, plated hard
5Material of Main Shaft45# steel finishing machining and then slack
6Material of Shaft80 mm 45#steel forged
7Driven Motor Power7.5KW
8Hydraulic Station Power11 KW
9Hydraulic Station Pressure12.0 Mpa
10Electrical Control SystemTaida PLC
11Dimension (L*W*H)7300*1550*1200mm
12Material of CutterGCr12
13Driving Modesingle chain 1 inch
14Material Thickness0.3-0.8mm
15Power Supply380V, 60HZ, 3 PHASES
16Cutting accuracy±2 mm
