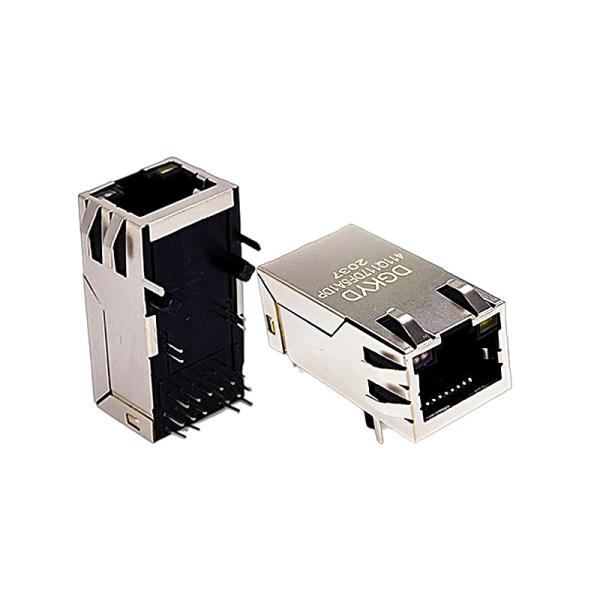

DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
DGKYD RJ45 Connector 6U Gold Plated Gigabit Single Port with Transformer
Specifications
Model Number :
DGKYD411Q117DF5A1DP
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$1.20-2
Type :
RJ45
Gender :
Female
LED Color :
Green Orange & Yellow
Plating :
Gold plating 6u
Housing Material :
PBT Polyester
Transformer :
With Transformer & PoE
Latch Style :
Standard
Metal Shielded :
With Metal Shielded
Speed :
Gigabit
Performance Speed :
1000 BASE-T
Port Configuration :
Single
Number of Positions :
12
Jack Configuration :
1 x 1
Terminals per Port :
8
Shield Material :
Copper Alloy preplated with Nickel
Description
Product Description

High-Frequency Gold-Plated 6U Network Port Ethernet RJ45 Connector Single-Port 1x1 Gigabit Integrated Transformer LED Spring Tab

Part Number
DGKYD411Q117DF5A1DP
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
ISO16949/CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Up
Filter
With Filter & PoE
LED Option
With LED
LED Color
Green Orange& Yellow
Panel Stops
With Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
1000 BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
12
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0

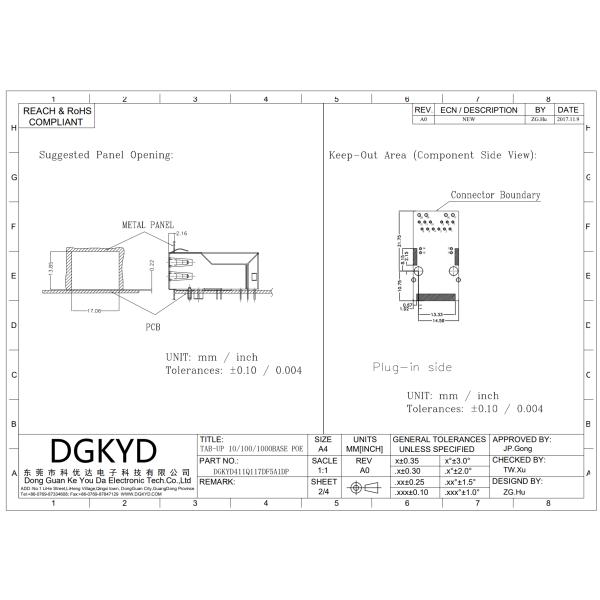

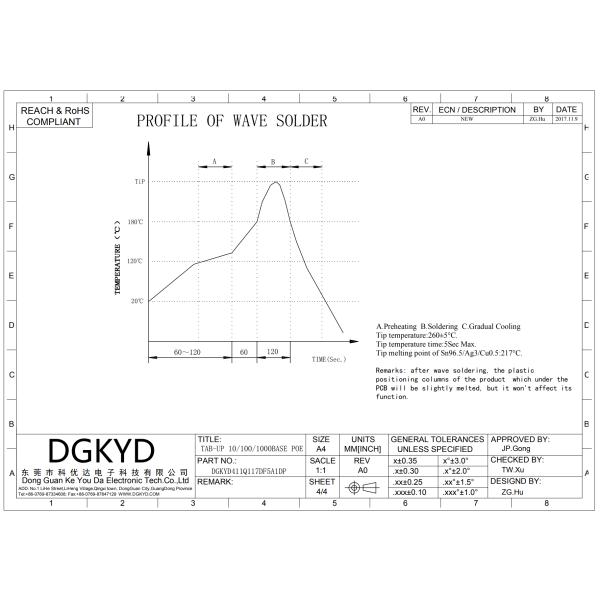

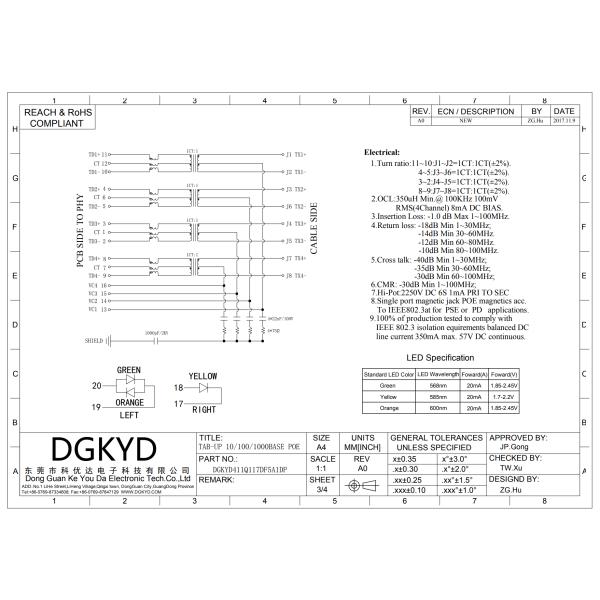

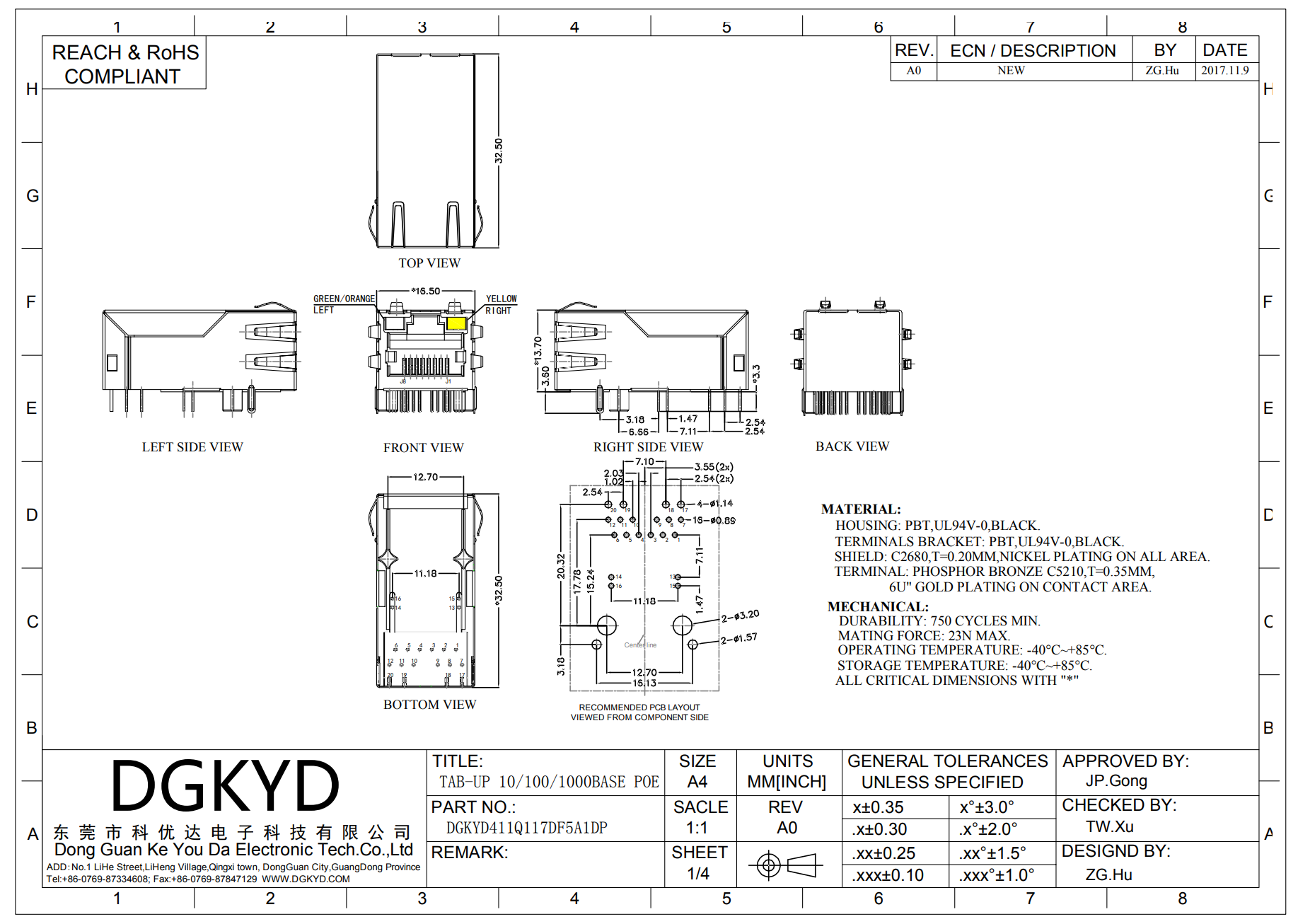

Data Sheet
