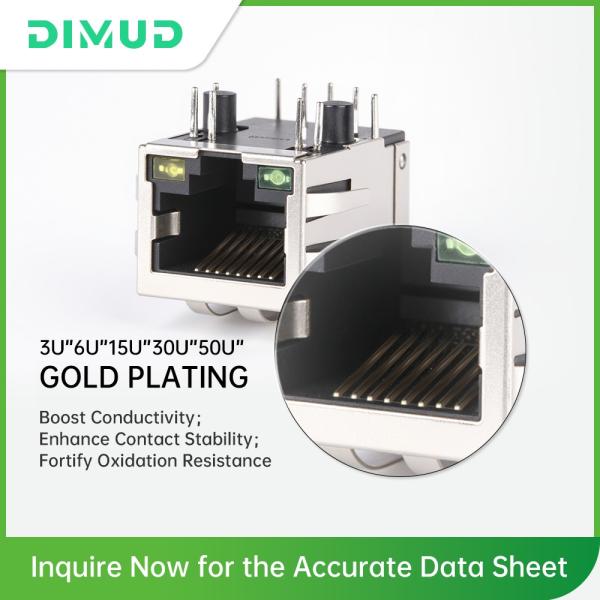

DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
Specifications
Model Number :
DGKYD811B198FF5A10DQ057
Place of Origin :
Guangdong, China
Brand Name :
DGKYD
MOQ :
1
Price :
$0.90-1.50
Type :
RJ45
Packaging :
DIP
Gender :
Female
Housing Material :
LCP BLACK
LED Option :
Green-Orange/Yellow
Latch :
Up
Number of Ports :
1
Number of Contacts :
8
PCB Mount Angle :
SIDE ENTRY
Mount Style :
Through Hole
Performance Speed :
10/100BASE-T
Port Configuration :
Single
Number of Positions :
6
Terminals per Port :
8
Shield Material :
Copper Alloy preplated with Nickel
Description
Product Description

Factory Supply 1x1 Single-Port 100Mbps Integrated Transformer RJ45 Network Connector Dual-Color LED Pin 1.2.3.7.8.9 Excluded

Part Number
DGKYD811B198FF5A10DQ057
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
IATF16949/ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Up
Filter
With Filter
LED Option
With LED
LED Color
Green-Orange/Yellow
Panel Stops
With Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
6
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
LCP Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0


DGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LEDDGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LEDDGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LEDDGKYD RJ45 Single Port Connector 100Mbps with Dual-Color LED
