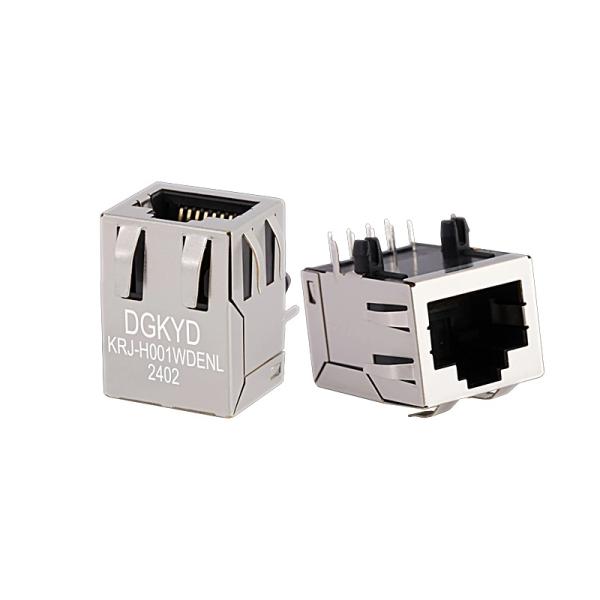

DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
Specifications
Model Number :
KRJ-H001WDENL
Place of Origin :
Guangdong, China
MOQ :
1
Price :
$0.47-0.78
Type :
RJ45
Packaging :
DIP
Gender :
Female
Housing Material :
PA66 BLACK
LED Option :
Without LED
Latch :
Up
Number of Ports :
1
Number of Contacts :
8
PCB Mount Angle :
SIDE ENTRY
Mount Style :
Through Hole
Speed :
Cat5
Performance Speed :
10/100 BASE-T
Shielded :
Yes
Shield Material :
Copper Alloy preplated with Nickel
Contact Plating Material :
Gold 6u/15u/30u/50u
Description
Product Description

Single-Port 100M RJ45 Network Port Socket Connector Transformer Shielded Non-LED Ethernet Connectors

Part Number
KRJ-H001WDENL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Up
Filter
With Filter
LED Option
Without LED
LED Color
N/A
Panel Stops
With Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100 BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
8
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)

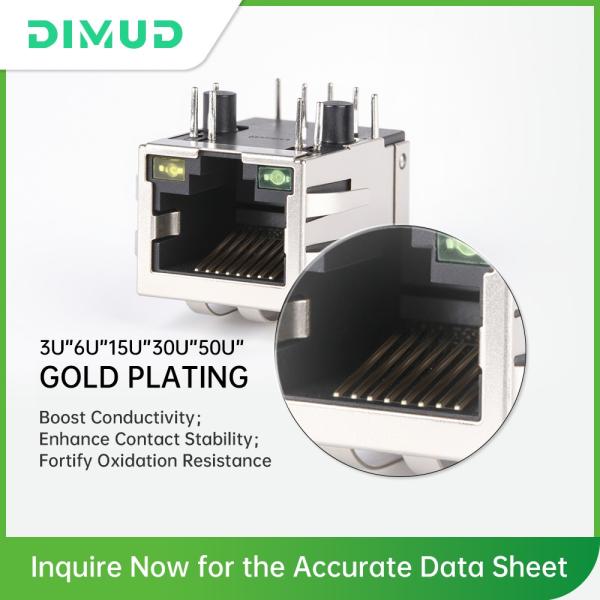

Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PA66
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0
DGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB MountDGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB MountDGKYD RJ45 Single Port Connector 100M Shielded Side Entry PCB Mount
