Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
Specifications
Model Number :
KRJ-406CNL
Place of Origin :
Guangdong, China
Brand Name :
DGKYD
MOQ :
1
Price :
$0.51-0.85
Type :
RJ45
Gender :
Female
Housing Material :
PBT BLACK
Contact Plating :
GOLD 6u''
Shield Material :
Copper Alloy preplated with Nickel
LED Option :
With LED
LED Color :
Green & Yellow
Number of Contacts :
8
Transformer Option :
With transformer
Performance Speed :
10/100 BASE-T
Port Configuration :
Single
Termination Method :
Through Hole-Press-Fit
Mounting Style :
Through Hole
Mounting Orientation :
Side Entry (Right Angle)
UL Flammability Rating :
UL 94V-0
Description
Product Description

Industrial Grade 10/100 Base T Ethernet Connectors Surface Mount CAT5E RJ45 Female Connector LEDs Integrated Magnetics PCB

Part Number
KRJ-406CNL
Brand
DGKYD/OEM/ODM
Place of Origin
Guangdong of China
Certification
ISO16949/ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
Product Type 
Connector-Modular
Connector Style
Jack
Jack Type
RJ45
Connector Type 
Modular Jack
Latch Style
Standard
Latch
Down
Filter
With Filter
LED Option
With LED
LED Color
Green & Yellow
Panel Stops
Without Panel Stops
Shielded
Yes
Applies To 
Printed Circuit Board
Performance Speed
10/100 BASE-T
Grounding Options
Panel Ground and PCB Ground
Port Configuration 
Single
Number of Positions 
8
Jack Configuration
1 x 1
Terminals per Port
8
Shield Material
Copper Alloy preplated with Nickel
PCB Mounting Orientation 
Side Entry (Right Angle)
Contact Mating Area Plating Material 
Gold 6u/15u/30u/50u for optional
Contact Base Material 
Phosphor Bronze
Solder Tail Contact Plating Material 
Tin-Lead over Nickel
PCB Mounting Style 
Through Hole
Termination Method to PC Board 
Through Hole-Press-Fit
Board Lock
With/Without Board Lock
Housing Material 
PBT Polyester
Housing Color
Black
Housing Material  Temperature
Standard
UL Flammability Rating 
UL 94V-0

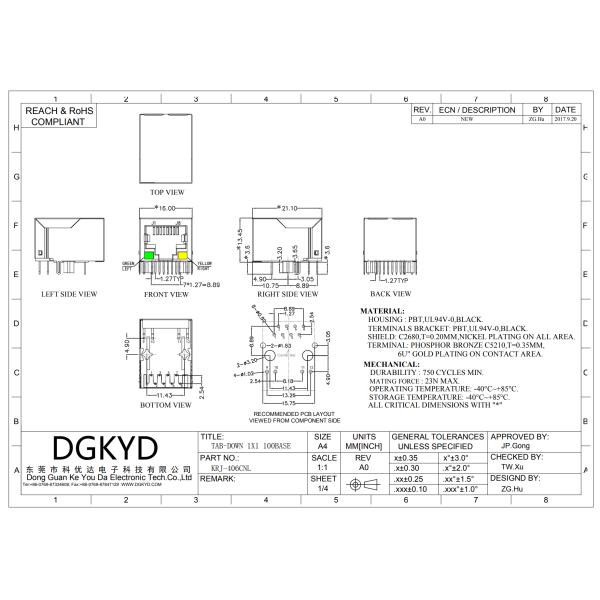

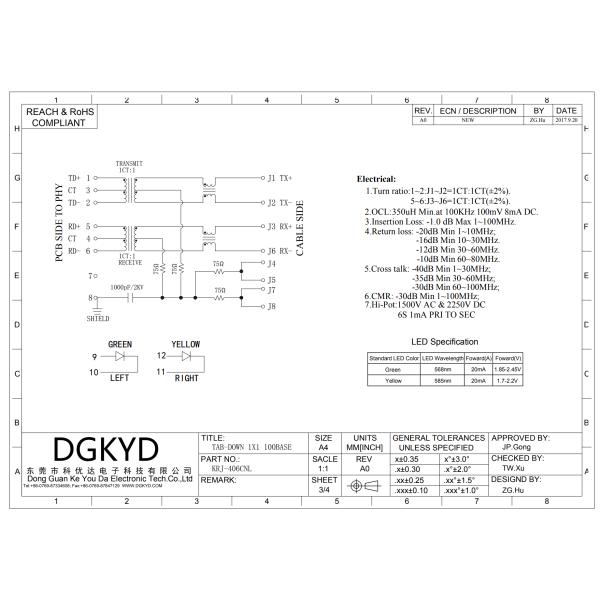

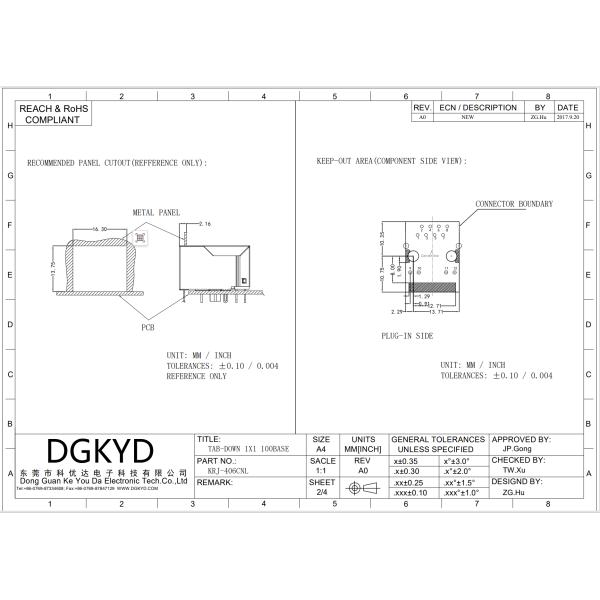

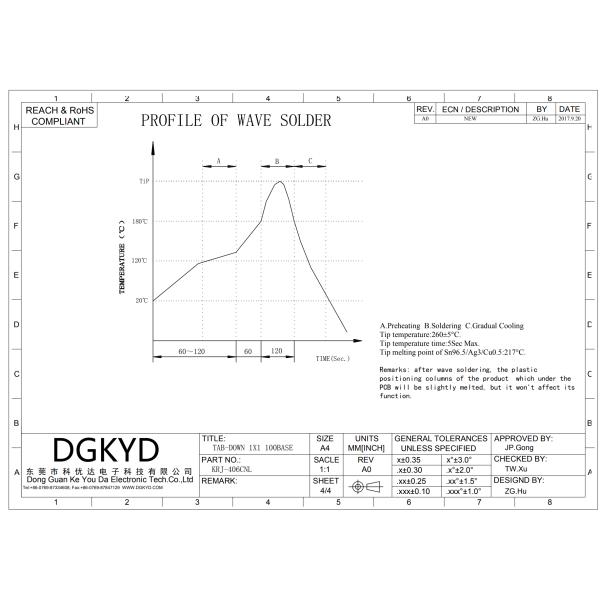

Data Sheet

Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8C

Detail page XQY

Industrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8CIndustrial RJ45 Female Connector 10/100 Base-T with LED 8P8C
