Specifications
Brand Name :
LINK-PP
Model Number :
LP6096ANL
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Specification :
LP6096ANL
Transformer Type :
PoE+ Gigabit Ethernet
Turns Ratio :
1 : 1 Transmitter, 1 : 1 Receiver
Mounting Type :
Surface Mount
Size / Dimension :
17.53mm L x16.10mm W
Height - Seated (Max) :
5.840 mm
Files :
PDF/3D/ISG/Stp/Step/Datasheet
Temperature :
-40℃ TO +85°C
Description

Cross LP6096ANL HX6096NL HX6098FNL HX6015NL H6096NL HX6098NL

Benefits

  • High Isolation Magnetics: Effective suppression of noise and EMI for cleaner network performance.
  • PoE+ Support: Powers devices while providing Gigabit bandwidth, consolidating components for streamlined designs.
  • Compact SMT Design: Saves PCB real estate and improves manufacturing throughput.
  • Supplier Provenance: Built by LINK-PP, a trusted provider in telecom-grade magnetic components since 1997, certified under ISO, RoHS, UL, and REACH standards.

Overview


The LP6096ANL is a high-performance single-port Gigabit Ethernet magnetic transformer, designed for 1000BASE-T PoE+ applications. Engineered to deliver reliable data throughput, power over Ethernet compatibility, and compact surface-mount form factor, it is ideal for modern networking products like PoE switches, routers, embedded IoT devices, and industrial Ethernet systems.

Electrical Specifications (25)

Item Specification
Turns Ratios Pri:Sec = 1CT:1CT
OCL 350µH Min @ 8mA DC Bias220µH Max @ 18mA DC Bias
Insertion Loss (dB Max) 0.1MHz: -1.21–125MHz: -2.0
Return Loss (dB Min) 1–40MHz: -1640–100MHz: -10
Crosstalk (dB Min) 30MHz: -4360MHz: -37100MHz: -33
CMRR (dB Min) 30MHz: -30200MHz: -15
DCR Balance 1Ω ± 0.05Ω
Balance DC Line Current 720mA Max @ 57VDC Continuous
Hipot 1500Vrms
Operating Temperature -40℃ ~ +85℃

Schematic

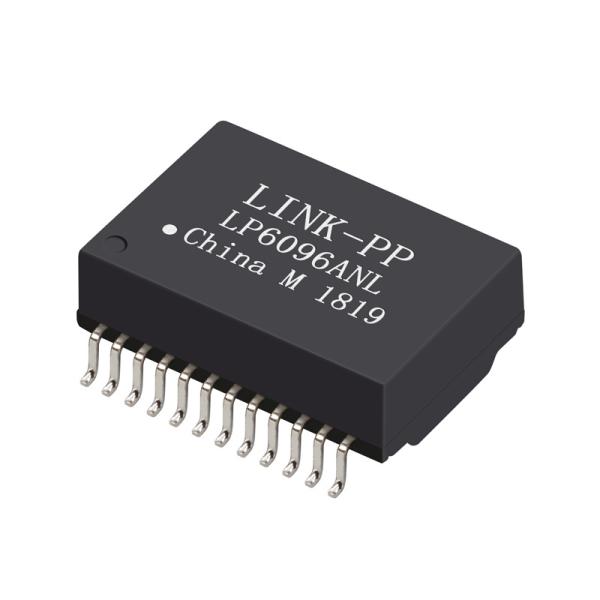

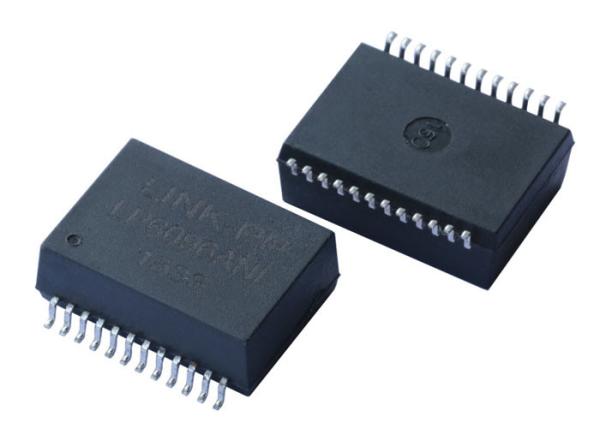

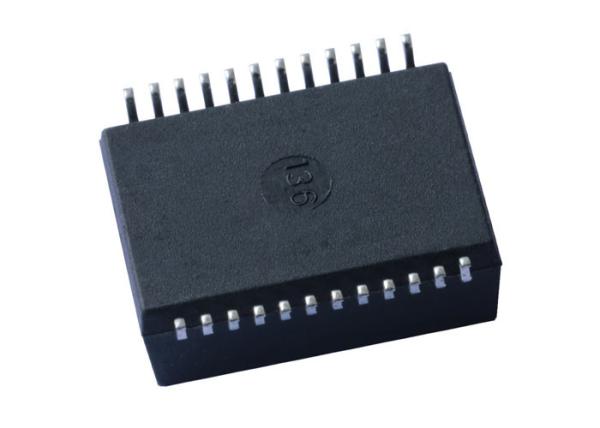

Gigabit Ethernet Transformer LP6096ANL PoE+ Magnetics SMD 24 PIN

Gigabit Ethernet Transformer LP6096ANL PoE+ Magnetics SMD 24 PIN

Send your message to this supplier
Send Now

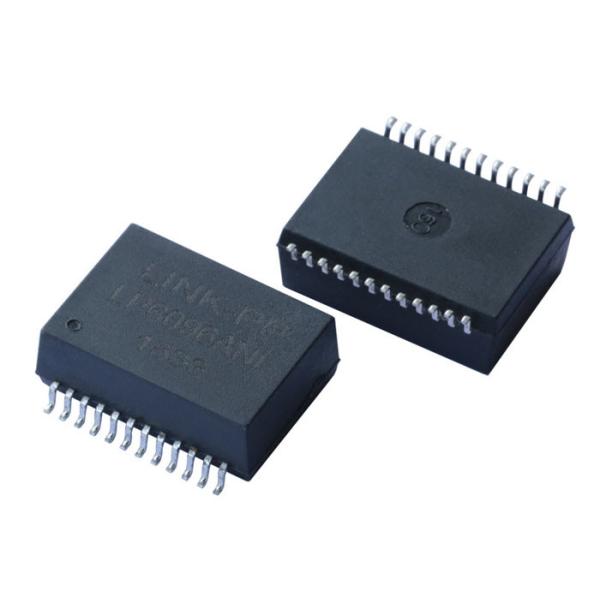

Gigabit Ethernet Transformer LP6096ANL PoE+ Magnetics SMD 24 PIN
