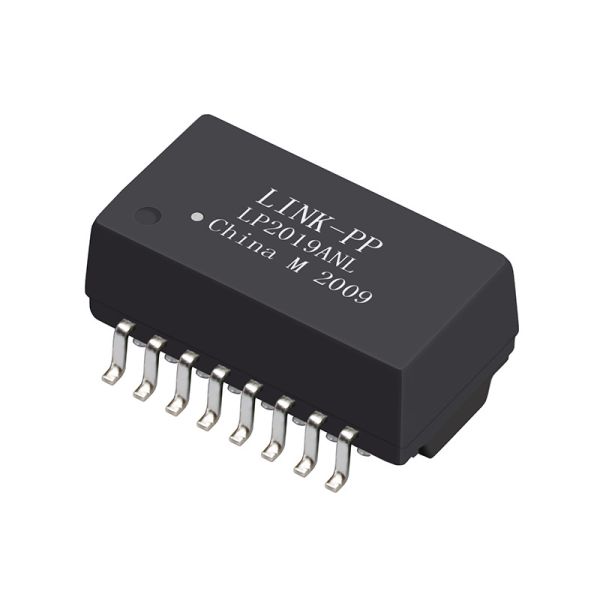

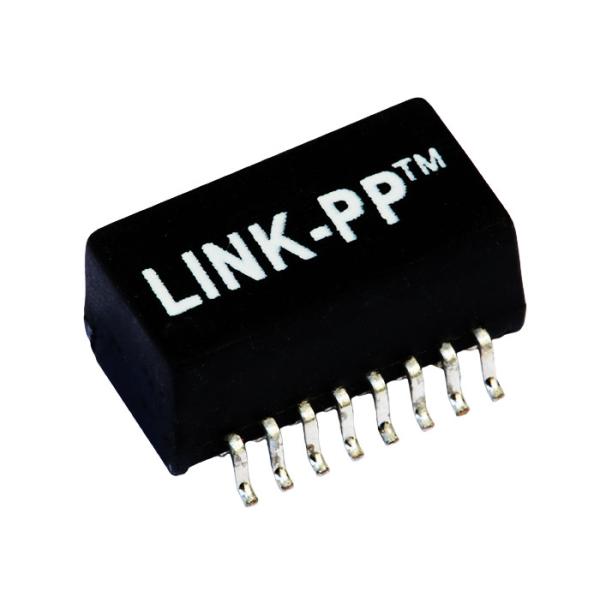

LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics
LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics
LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics
LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics
LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics
LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics
Specifications
Brand Name :
LINK-PP
Model Number :
LP2019ANL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3800000PCS/Month
Delivery Time :
Stock
Packaging Details :
Reel Package
Part Number :
LP2019ANL
Specification :
LP2019ANL
Mounting :
SMD
Apllication :
10/100base-T PoE
Measure :
12.70x9.30x6.20mm
Samples :
Free
Data Rate :
10/100Base-TX
Number of Channels/Ports :
Single
PoE :
PoE+
Mounting Type :
SMT
Turns Ratio :
1:1
Operating Temperature Range :
-40°C to +85°C
Description

Overview of LP2019ANL PoE+ LAN Transformer

The LP2019ANL is a single-port 10/100BASE-T Ethernet LAN transformer designed for PoE+ applications. Featuring an open-frame SMT design, it provides stable signal integrity, 1CT:1CT transformer ratios, and reliable isolation performance. It is fully compatible with major industry brands and maintains identical electrical characteristics to the NL version. With a wide operating temperature range and support for AutomDX, the LP2019ANL is ideal for PoE-enabled network devices such as IP cameras, VoIP phones, and industrial Ethernet equipment.

LP2019ANL Key Specifications

Category Specification
Model LP2019ANL
Type LAN Transformer
Status Active
Compatible Brands Bothhand, Halo, Hanrun, LINK-PP, Pulse, WE
Core Features PoE+ Supported, AutomDX Compatible, Same as NL Version
Ports Single Port
Ethernet Speed 10/100 BASE-T
Pin Count 16 Pins
Mounting Type Surface Mount

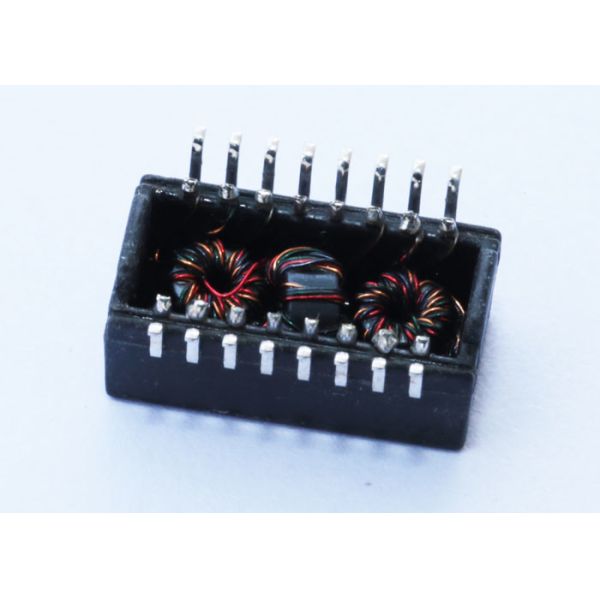

Construction Open Frame
Package Type Tape & Reel

Electrical Parameters

Parameter Specification
Operating Current 350mA
Turns Ratio (RX/TX) 1CT:1CT (1:1 TX, 1:1 RX)
Cores per Port 4
RX/TX Configuration T, C, S
Operating Temperature -40℃ to +85℃
Application Ethernet (PoE+)

Mechanical & Packaging Details

Dimension / Info Specification
Package Height 0.226" / 5.75 mm
Package Length 0.500" / 12.70 mm
Package Width 0.366" / 9.30 mm
Net Weight (per unit) 0.001 kg
Standard Pack Quantity 750 pcs/Reel
Quantity per Carton 4500 pcs
Carton Size 37 × 37 × 25 cm
Gross Weight per Carton 6.8 kg

Inventory & Delivery

Item Details
Current Stock 81,014 Units
Lead Time (In Stock) 1–2 Working Days
Lead Time (Out of Stock) 4–6 Weeks
Shipping Cost $29.47

Pricing Information

Quantity Unit Price
1 Unit $1.08

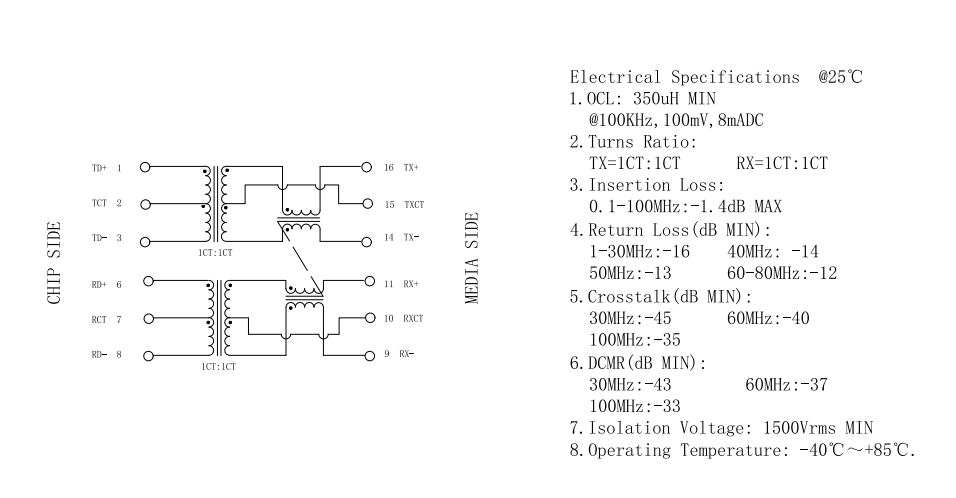

LP2019ANL Datasheet

LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics

LP2019ANL PoE+ LAN Transformer 10/100 BASE-T VOIP Magnetics
