10/100/1000BASE-T PoE+ LAN Transformer Overview:

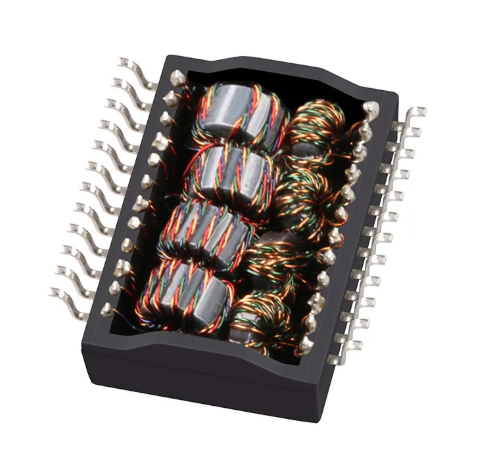

The LINK-PP LP6062ANL is a high-performance Gigabit Ethernet LAN transformer module designed for 10/100/1000BASE-T applications with PoE+ (IEEE 802.3at) support. Engineered for reliability, signal integrity, and EMI performance, this 24-pin magnetic module is ideal for networking equipment, SOHO devices, LOM designs, industrial systems, and telecom applications.

LP6062ANL PoE+ LAN Magnetic Key Features

  • Supports 10/100/1000BASE-T Gigabit Ethernet
  • PoE+ (IEEE 802.3at) compliant
  • High isolation: 1500 Vrms, 1mA, 1s
  • Operating temperature: −40°C to +85°C
  • UL Certified: File No. E484653
  • RoHS 2011/65/EU compliant
  • Optimized for EMI performance, low insertion loss, and high common-mode noise rejection
  • Suitable for ADSL modems, SOHO routers, LOM, hubs, and switches

Electrical Specifications @ 25°C

Parameter Specification
Turns Ratio (TX/RX) 1CT:1CT ±5%
OCL (100 kHz, 100 mV, 11 mA) ≥ 350 µH
Insertion Loss (1–100 MHz) ≤ –1.2 dB
Return Loss 1–30 MHz: ≥ –16 dB30–60 MHz: ≥ –12 dB60–80 MHz: ≥ –10 dB80–100 MHz: ≥ –8 dB
Crosstalk (1–100 MHz) ≥ –30 dB
Common-Mode Rejection (1–100 MHz) ≥ –30 dB
Balance DC Line Current Max 720 mA @ 57 VDC continuous
Hipot 1500 Vrms, 1mA, 1 sec
Operating Temperature −40°C to +85°C

Mechanical Information

  1. Standard 24-pin transformer package
  2. Designed for automated SMT reflow
  3. Max reflow temperature: 250°C for 5 seconds

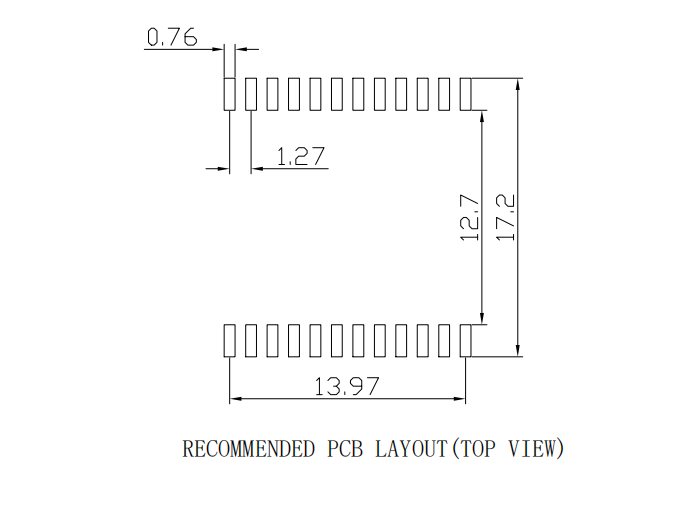

  4. Recommended PCB layout provided in the drawing
  5. Marking: LP6062ANL / LINK-PP / China
