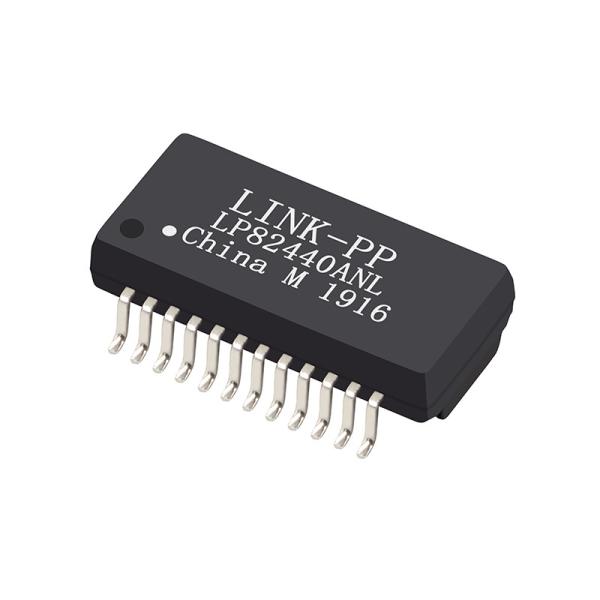

1000Base-T Magnetics Modules LP82440A-MYNL SMT For PoE Application
1000Base-T Magnetics Modules LP82440A-MYNL SMT For PoE Application
1000Base-T Magnetics Modules LP82440A-MYNL SMT For PoE Application
1000Base-T Magnetics Modules LP82440A-MYNL SMT For PoE Application
Specifications
Brand Name :
LINK-PP
Model Number :
LP82440A-MYNL
Certification :
UL,RoHS,REACH,ISO
Place of Origin :
GuangDong, China
MOQ :
50/1200pcs
Price :
$0.5-$1.2
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
5KK/Month
Delivery Time :
1-2 Weeks
Packaging Details :
Reel
Product Name :
1000Base-T SMT Transformer
Part Number :
LP82440A-MYNL
Construction :
Open Frame
Speed :
10/100/1000 Base-T
PoE Function :
Support
Mounting :
Surface Mount
Compatible Brands :
Pulse
Data Rate :
100Base-T
Number of Channels/Ports :
Single
PoE :
PoE
Mounting Type :
SMT
Turns Ratio :
1:1
Operating Temperature Range :
-40°C to +85°C
Description

Overview of 1000Base-T LAN Magnetics:

The LP82440A-MYNL is a high-performance LAN transformer designed to meet the demands of modern Ethernet connectivity. It supports 10/100/1000 Base-T speeds and fully complies with IEEE 802.3af standards. This Magnetics is constructed with an open frame design and features a 1:1 turns ratio for the transmitter and receiver. The mounting type is a surface mount design and is supplied in a tape and reel package. The LP82440A-MYNL operates efficiently in temperatures ranging from -40℃ to +85℃, making it suitable for both commercial and industrial environments.

Key Features

  1. Compliant with Industry Standards: IEEE 802.3 af, UL, REACH, RoHS, ISO19001, and ISO14001 compliant, ensuring high safety, environmental, and quality standards.
  2. Wide Application Range: Suitable for Industrial PCs, Embedded Main Boards, Intercoms, and Media Players.
  3. Speed: Supports 10/100/1000 Base-T Ethernet, providing versatile connectivity options.
  4. PoE Capability: Designed for Ethernet (PoE) applications, facilitating power delivery over Ethernet cables.
  5. AutomDX: Supports automatic medium-dependent interface crossover (AutoMDX), simplifying network setup and configuration.
  6. SMT Technology: Ensures easy integration into modern electronic assemblies.

LP82440A-MYNL Specifications:

Single Port POE Lan Magnetics
Transformer Type LAN Transformer

Compatible Brands

Pulse, Wurth

Data Rate

1000Base-T

Number of Channels/Ports

Single
PIN Number 24

PoE

PoE

Mounting Type

SMT

Turns Ratio

1:1
Cores per Port 8

Operating Temperature Range

-40°C to +85°C
AutoMDX Yes

Height

0.157 inches / 4.00 mm

Length

0.594 inches / 15.10 mm

Width

0.394 inches / 10.0 mm

Package

Tape & Reel

LP82440A-MYNL Drawing:

LP82440A-MYNL.pdf

Notes of PoE Transformer:

  • Designed For Gigabit Transceivers
  • Peak Reflow Temperature Rating 250℃
  • Magnetics, Designed For Gigabit PHY Used In Backplane.
  • Compliant With IEEE 802.3ab Standard.
  • UL Certification: File Number E484635.
