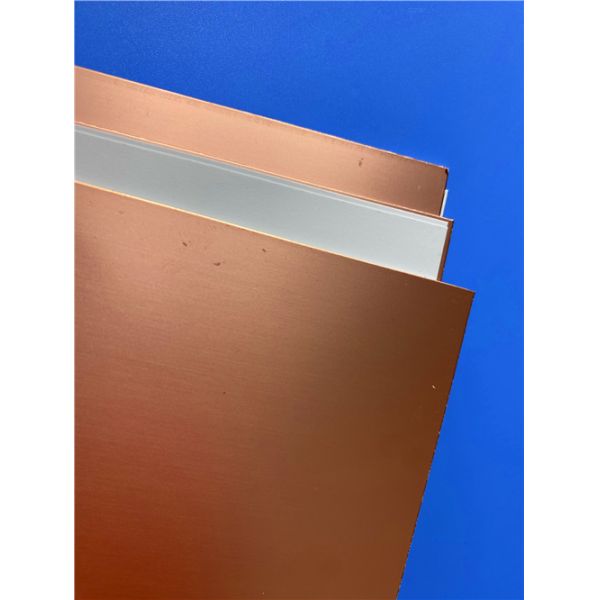

FCCL TLX-0 High Frequency Laminates Copper Clad Sheet
FCCL TLX-0 High Frequency Laminates Copper Clad Sheet
Specifications
Brand Name :
Bicheng
Model Number :
BIC-332.V1.0
Certification :
UL, ISO9001, IATF16949
Place of Origin :
CHINA
MOQ :
1PCS
Price :
USD9.99-99.99
Payment Terms :
T/T
Supply Ability :
5000PCS per month
Delivery Time :
8-9 working days
Packaging Details :
Vacuum bags+Cartons
Part number :
TLX-0
Laminate thickness :
0.0050 - 0.250 inches (0.127 - 6.35mm)
Laminate size :
12 x 18inch (304 x 457mm); 16 x 18inch (406 x 457mm); 18 x 24inch(457 x 610mm); 16 x 36inch (406 x 914mm); 24 x 36inch (610 x 914mm); 18 x 48inch (457 x 1220mm); 36 x 48inch (914 x 1220mm)
Copper weight :
½ oz (18mm); 1 oz (35µm)
Description

TLX is a DK 2.45 copper-clad laminate, well-suited for low layer-count microwave designs.

Featuring PTFE fiberglass construction, TLX laminates are an excellent choice for radar systems, mobile communications, microwave test equipment, microwave transmission devices, and RF components.

TLX has become a reliable workhorse within the RF and microwave substrate industry. Its fiberglass reinforcement delivers robust mechanical stability for substrates operating in extreme environments, including:

-Creep resistance for PWBs bolted to enclosures exposed to high vibration during space launch

-High-temperature endurance in engine modules

-Radiation resistance for space applications (refer to NASA’s website for low-outgassing material details)

-Harsh marine environment resistance for naval shipboard antennas

-Broad temperature-range stability for altimeter substrates during flight

With a wide selection of dielectric constants, TLX supports the production of couplers, splitters, combiners, amplifiers, antennas, and various other components.

FCCL TLX-0 High Frequency Laminates Copper Clad Sheet

Key Advantages

  • Excellent PIM performance in PCBs (measured below -160 dBc*)
  • Superior mechanical and thermal properties
  • Low and stable dielectric constant (Dk)
  • High dimensional stability
  • Low moisture absorption
  • Tightly controlled Dk
  • Low dissipation factor (Df)
  • UL 94 V0 flammability rating

Typical Uses

  • Low layer-count microwave designs
  • Antennas
  • Mixers, splitters, filters, and combiners
  • Passive RF components
